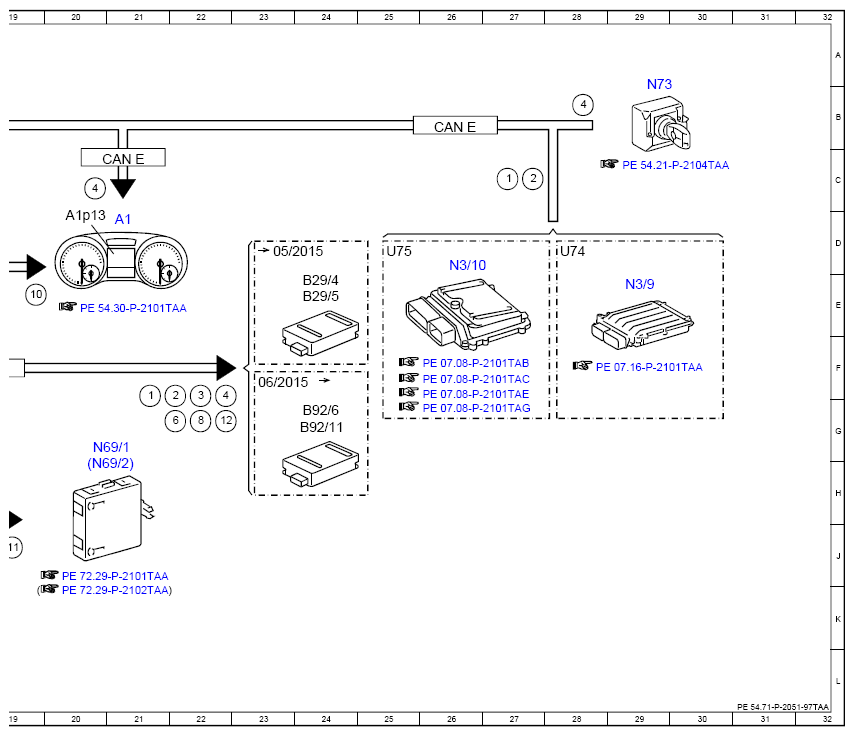

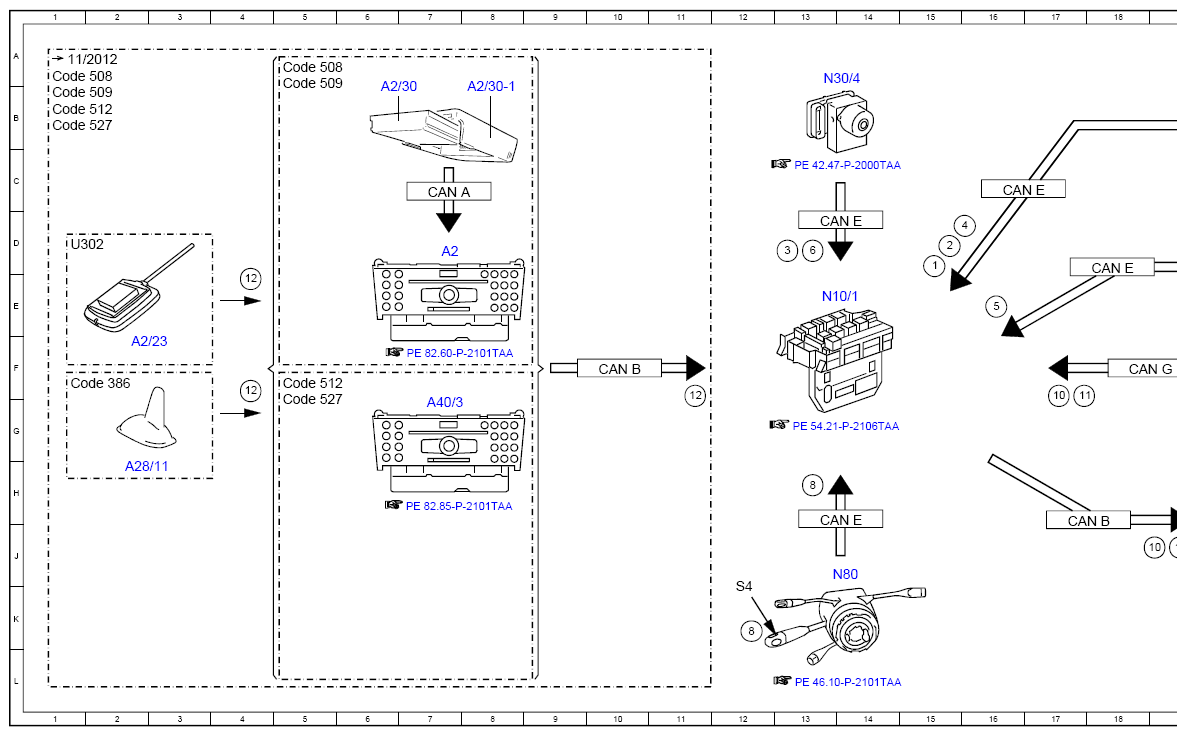

Electrical Function Schematic, Blind Spot Assistant - PE54.71-P-2051-97TAA
Model 172.4 up to model year 2017
with code 234 (Blind Spot Monitoring))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | |
| 1 | Engine running, signal | |
| 1 | Engine running, signal | |
| 10 | Warning message issue, request | |
| 10 | Warning message issue, request | |
| 10 | Warning message issue, request | |
| 11 | Readiness, signal | |
| 11 | Readiness, signal | |
| 12 | GPS, signal | |
| 12 | GPS, signal | |
| 12 | GPS, signal | |
| 12 | GPS, signal | |
| 2 | Drivetrain operational, signal | |
| 2 | Drivetrain operational, signal | |
| 2 | Drivetrain operational, signal | |
| 3 | Wheel speed, signal | |
| 3 | Wheel speed, signal | |
| 4 | Circuit 15, status | |
| 4 | Circuit 15, status | |
| 4 | Circuit 15, status | |
| 4 | Circuit 15, status | |
| 5 | Blind spot assist, status | |
| 6 | Reverse gear, status | |
| 6 | Reverse gear, status | |
| 8 | Combination switch, status | 12K |
| 8 | Combination switch, status | |
| 8 | Combination switch, status | |
| A1 | Instrument cluster | 21D |
| A1p13 | Multifunction display | 20D |
| A2 | Radio | 7D |
| A2/23 | GPS antenna | 2F |
| A2/30 | Navigation module | 6B |
| A2/30-1 | Cradle for navigation module | 8B |
| A28/11 | Multifunction antenna | 2H |
| A40/3 | COMAND control unit | 7G |
| B29/4 | Left rear bumper intelligent radar sensor | 24E |
| B29/5 | Right rear bumper intelligent radar sensor | 24E |
| B92/11 | Left outer rear bumper integrated radar sensor | 24G |
| B92/6 | Right outer rear bumper integrated radar sensor | 24G |
| CAN A | Telematics CAN | 7C |
| CAN B | Interior CAN | 17J |
| CAN B | Interior CAN | 10F |
| CAN E | Chassis CAN | 13J |
| CAN E | Chassis CAN | 13D |
| CAN E | Chassis CAN | 18D |
| CAN E | Chassis CAN | 16C |
| CAN E | Chassis CAN | 21C |
| CAN E | Chassis CAN | 26B |
| CAN G | Front end CAN | 18F |
| Code 386 | Comfort telephony | 1F |
| Code 508 | Navigation module preinstallation | 1A |
| Code 508 | Navigation module preinstallation | 5A |
| Code 509 | Navigation module | 1B |
| Code 509 | Navigation module | 5B |
| Code 512 | COMAND APS with DVD changer | 1B |
| Code 512 | COMAND APS with DVD changer | 5F |
| Code 527 | COMAND APS with single DVD drive (with navigation) | 1B |
| Code 527 | COMAND APS with single DVD drive (with navigation) | 5G |
| N10/1 | Front SAM control unit with fuse and relay module | 13E |
| N3/10 | ME-SFI [ME] control unit | 26D |
| N3/9 | CD I control unit | 29E |
| N30/4 | Electronic Stability Program control unit | 13A |
| N69/1 | Left door control unit | 20G |
| N69/2 | Right door control unit | 20H |
| N73 | Electronic ignition switch control unit | 29B |
| N80 | Steering column module control unit | 13J |
| S4 | Combination switch | 12K |
| U302 | Valid without comfort telephony | 1D |
| U74 | Valid for diesel engines | 28D |
| U75 | Valid for gasoline engines | 25D |
