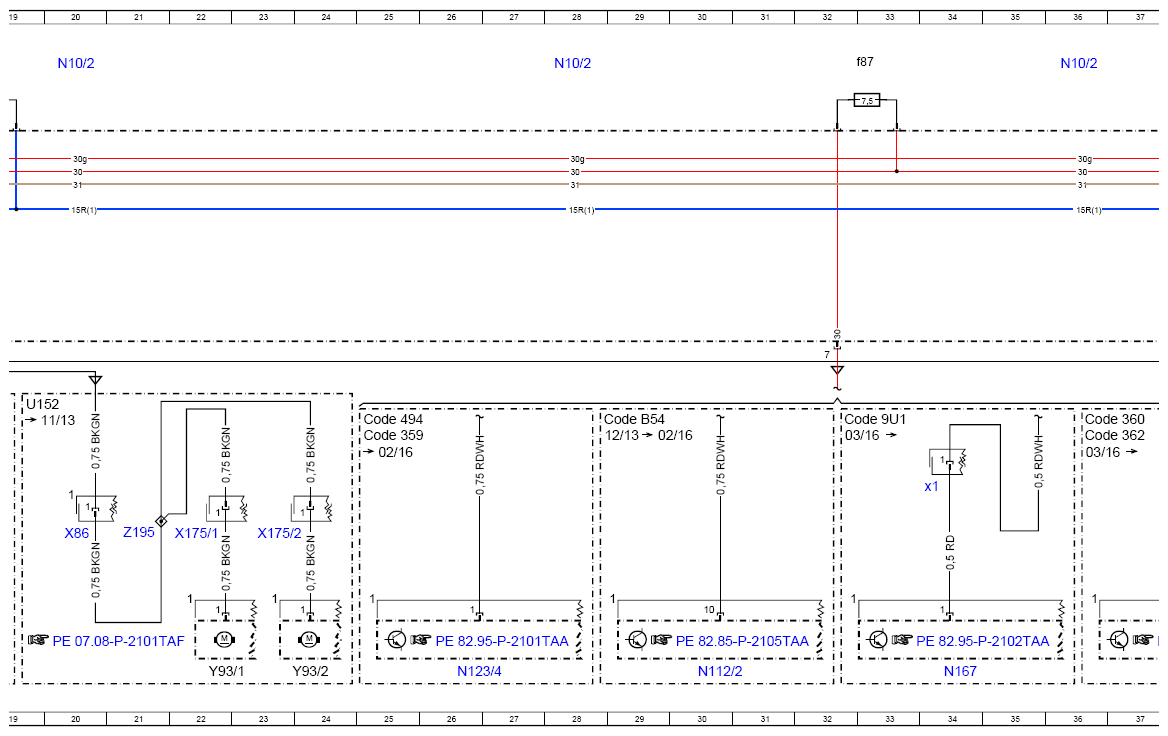

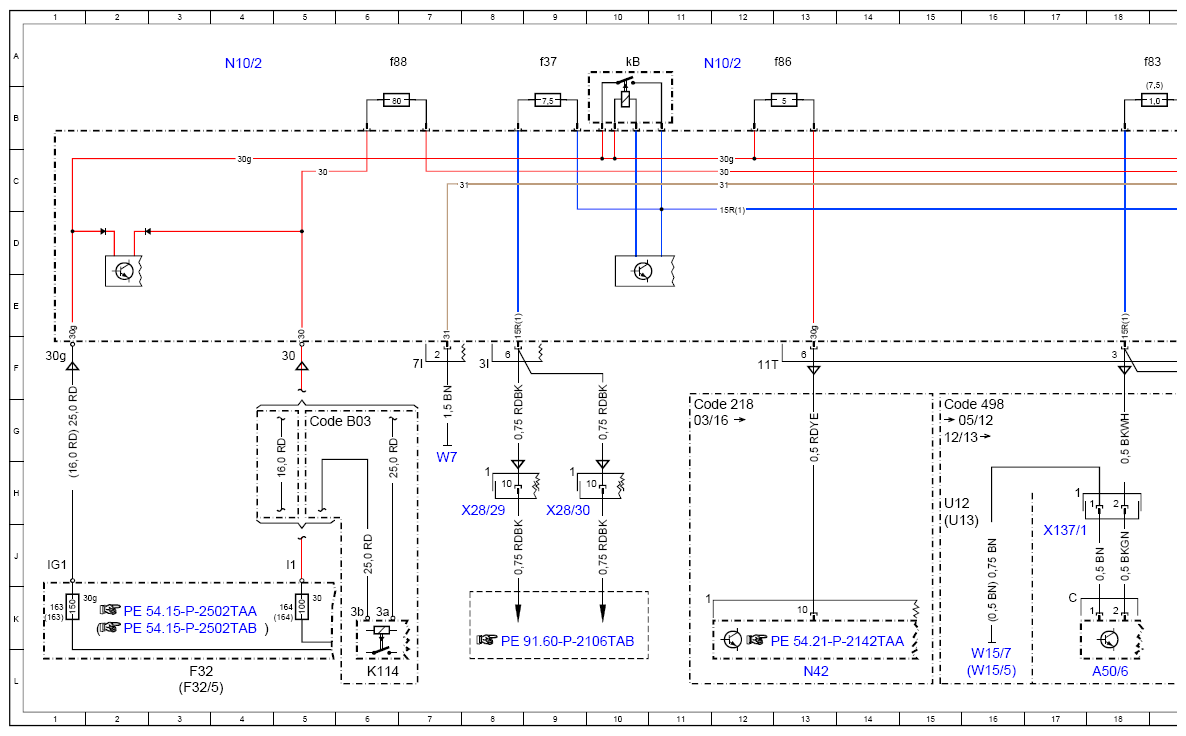

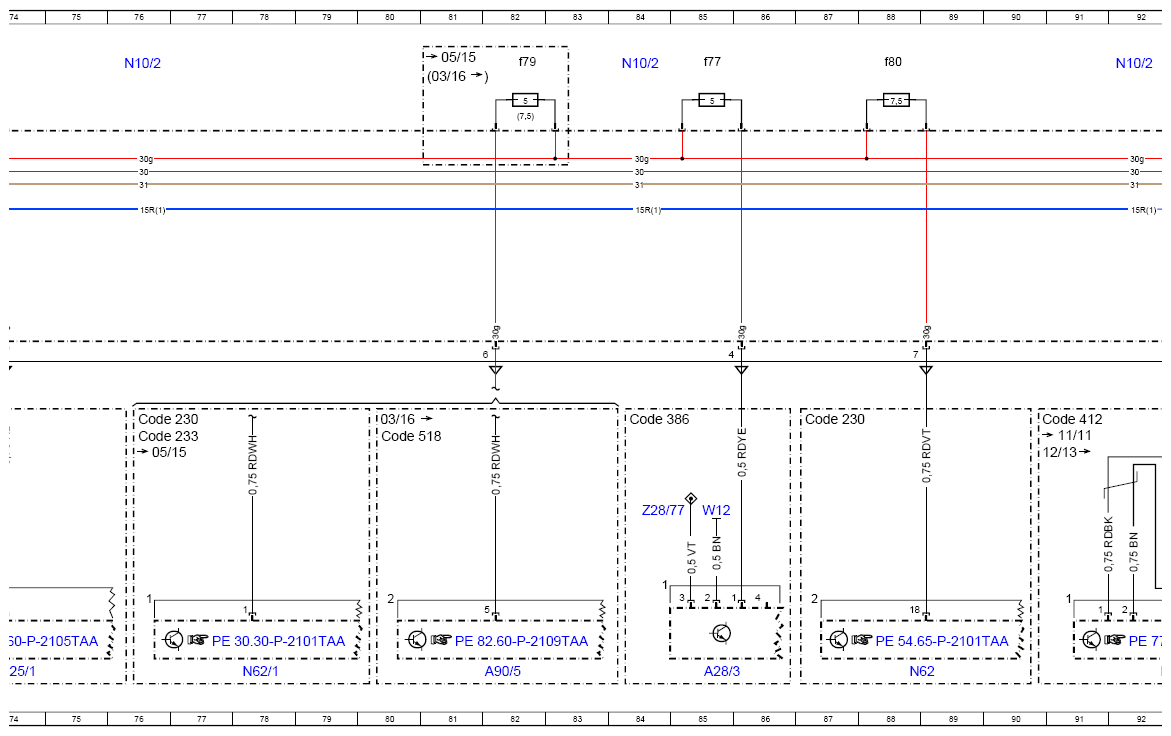

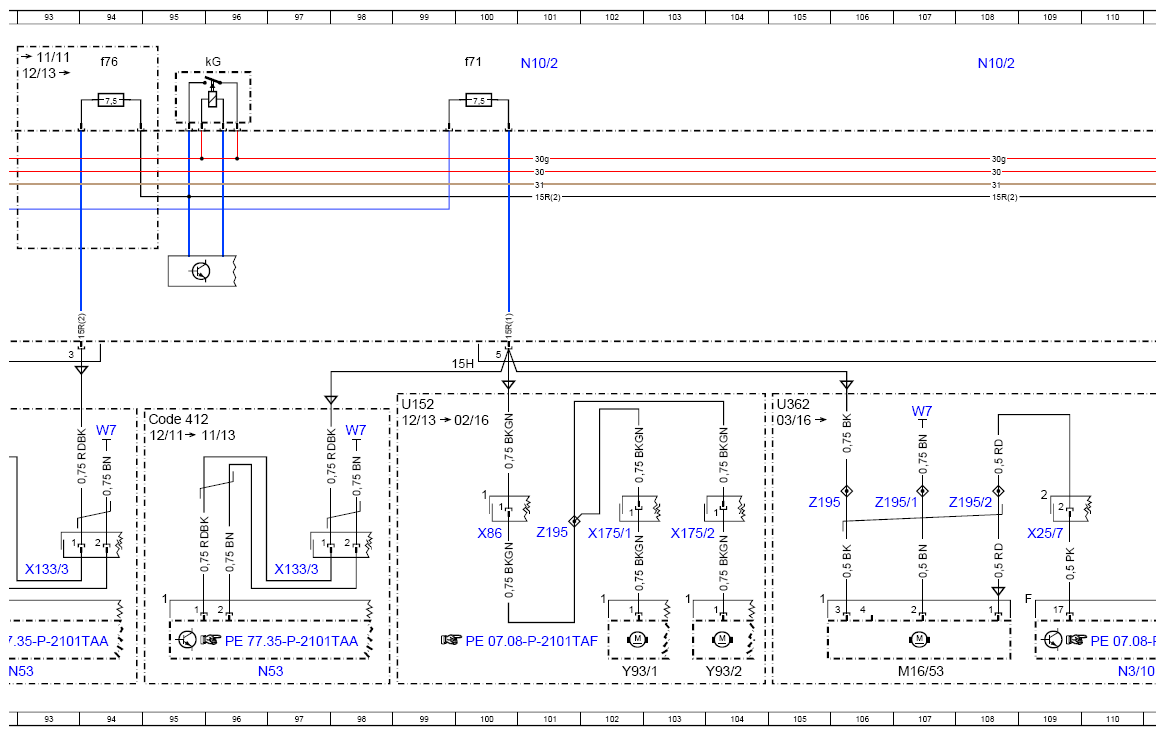

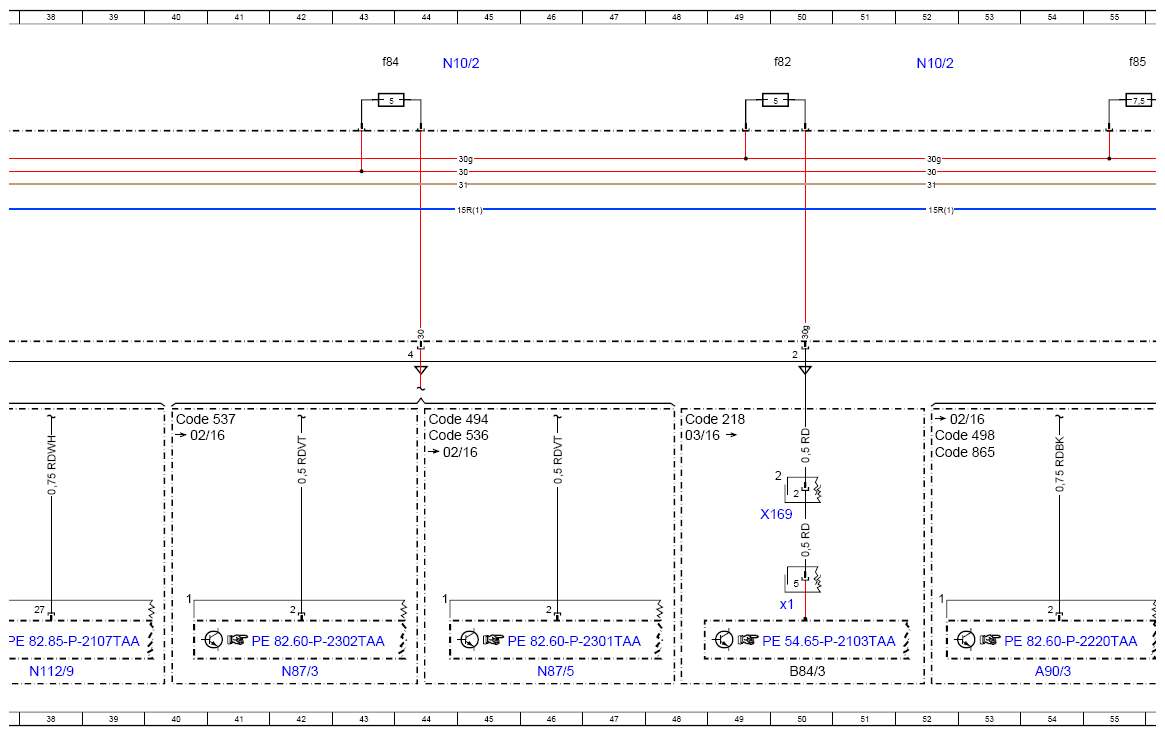

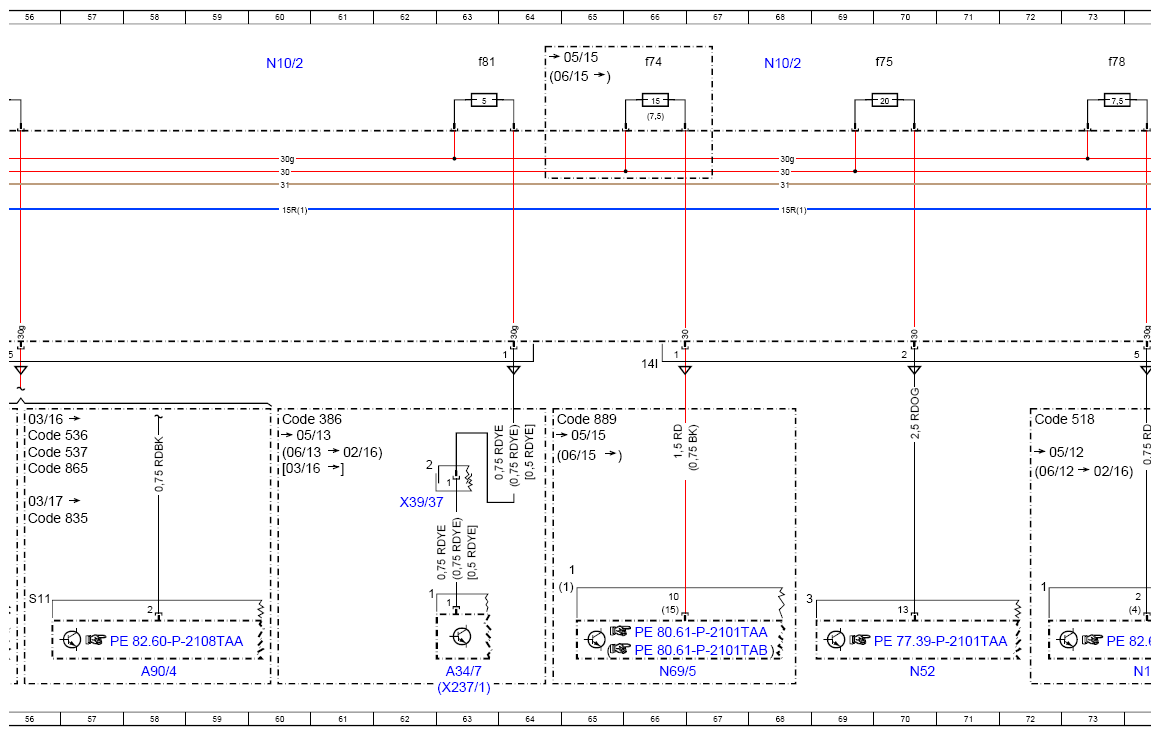

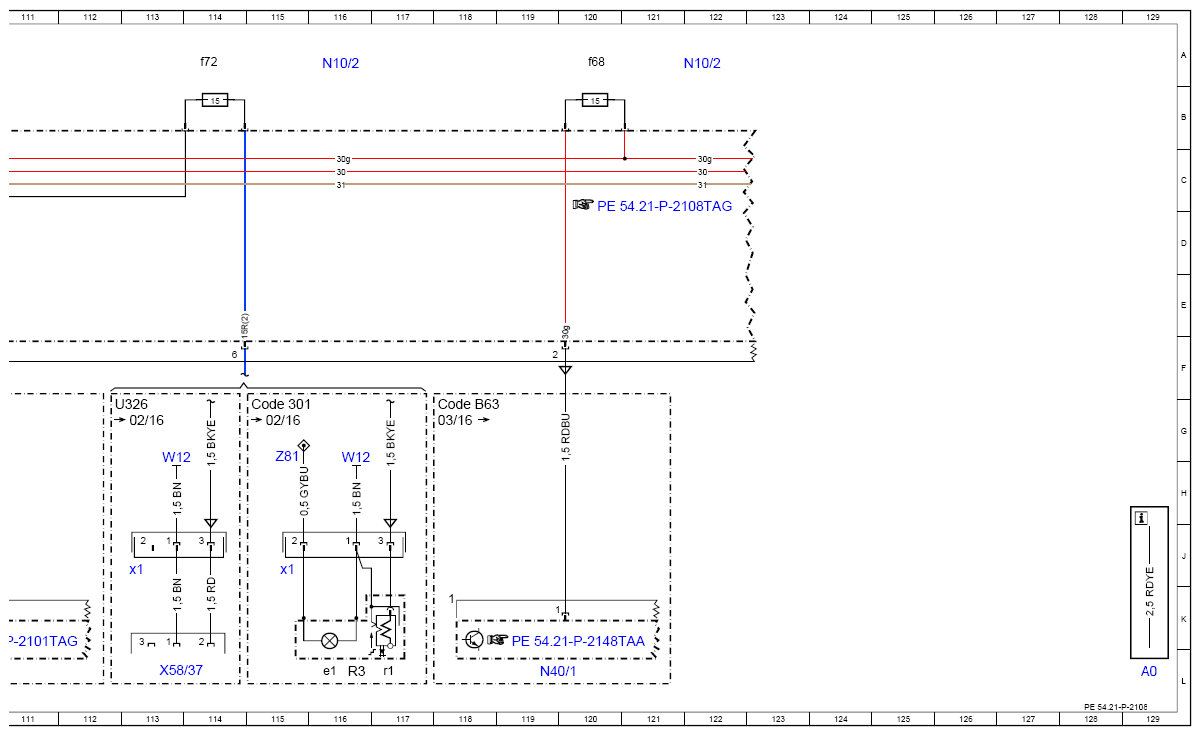

Wiring Diagram/Rear SAM Control Unit With Fuse And Relay Module (N10/2) - PE54.21-P-2108-97TAF
Model 172.4
Specification 6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 129L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 85L |
| A34/7 | Bluetooth® module | 63L |
| A50/6 | Dedicated Short-Range Communications control unit | 18L |
| A90/3 | TV digital tuner | 54L |
| A90/4 | Tuner unit | 58L |
| A90/5 | Multimedia connection unit | 82L |
| B84/3 | Backup camera | 50L |
| B84/3x1 | Reversing camera electrical connector 1 | 50K |
| Code 218 | Backup camera | 11G |
| Code 218 | Backup camera | 48G |
| Code 230 | Exclusive parking assist | 76G |
| Code 230 | Exclusive parking assist | 87G |
| Code 233 | DISTRONIC PLUS | 76G |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 115G |
| Code 359 | TELEAID emergency call system | 25G |
| Code 360 | HERMES UMTS | 36G |
| Code 362 | HERMES LTE | 36G |
| Code 386 | Comfort telephony | 60G |
| Code 386 | Comfort telephony | 84G |
| Code 412 | MAGIC SKY CONTROL | 90G |
| Code 412 | MAGIC SKY CONTROL | 95G |
| Code 494 | USA version | 44G |
| Code 494 | USA version | 25G |
| Code 498 | Japan version | 15G |
| Code 498 | Japan version | 52G |
| Code 518 | Media Interface | 72G |
| Code 518 | Media Interface | 80G |
| Code 536 | SIRIUS satellite radio | 44G |
| Code 536 | SIRIUS satellite radio | 56G |
| Code 537 | Digital radio | 40G |
| Code 537 | Digital radio | 56G |
| Code 835 | Additional parts for South Korea vehicles | 56H |
| Code 865 | TV tuner (digital) | 52G |
| Code 865 | TV tuner (digital) | 56H |
| Code 889 | KEYLESS-GO | 64G |
| Code 9U1 | ECALL RUSSIA (GLONASS) pre installation | 32G |
| Code B03 | ECO start/stop function | 5G |
| Code B54 | Live Traffic Information | 28G |
| Code B63 | Vehicle sound iESS | 118G |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f163 | Pre-fuse 163 | 1K |
| F32/5f164 | Pre-fuse 164 | 5K |
| F32f163 | Pre-fuse 163 | 1K |
| F32f164 | Pre-fuse 164 | 5K |
| K114 | ECO start/stop function additional battery relay | 6L |
| M16/53 | Left exhaust flap actuator motor | 107L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 60A |
| N10/2 | Rear SAM control unit with fuse and relay module | 68A |
| N10/2 | Rear SAM control unit with fuse and relay module | 76A |
| N10/2 | Rear SAM control unit with fuse and relay module | 84A |
| N10/2 | Rear SAM control unit with fuse and relay module | 92A |
| N10/2 | Rear SAM control unit with fuse and relay module | 101A |
| N10/2 | Rear SAM control unit with fuse and relay module | 116A |
| N10/2 | Rear SAM control unit with fuse and relay module | 108A |
| N10/2 | Rear SAM control unit with fuse and relay module | 122A |
| N10/2f37 | Fuse 37 | 9A |
| N10/2f68 | Fuse 68 | 120A |
| N10/2f71 | Fuse 71 | 100A |
| N10/2f72 | Fuse 72 | 114A |
| N10/2f74 | Fuse 74 | 66A |
| N10/2f75 | Fuse 75 | 70A |
| N10/2f76 | Fuse 76 | 94A |
| N10/2f77 | Fuse 77 | 85A |
| N10/2f78 | Fuse 78 | 73A |
| N10/2f79 | Fuse 79 | 82A |
| N10/2f80 | Fuse 80 | 88A |
| N10/2f81 | Fuse 81 | 63A |
| N10/2f82 | Fuse 82 | 50A |
| N10/2f83 | Fuse 83 | 18A |
| N10/2f84 | Fuse 84 | 43A |
| N10/2f85 | Fuse 85 | 55A |
| N10/2f86 | Fuse 86 | 13A |
| N10/2f87 | Fuse 87 | 33A |
| N10/2f88 | Fuse 88 | 6A |
| N10/2kB | Circuit 15R relay (1) | 10A |
| N10/2kG | Circuit 15R relay (2) | 96A |
| N112/2 | Telematics services communication module | 30L |
| N112/9 | HERMES control unit | 38L |
| N123/4 | Emergency call system control unit | 26L |
| N125/1 | Media interface control unit | 74L |
| N167 | E-Call Russia (GLONASS) control unit | 34L |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 34H |
| N3/10 | ME-SFI [ME] control unit | 110L |
| N40/1 | Engine sound control unit | 119L |
| N42 | Camera cover control unit | 13L |
| N52 | Vario roof control control unit | 70L |
| N53 | MAGIC SKY CONTROL control unit | 92L |
| N53 | MAGIC SKY CONTROL control unit | 96L |
| N62 | Parking system control unit | 88L |
| N62/1 | Radar sensors control unit | 78L |
| N69/5 | KEYLESS-GO control unit | 66L |
| N87/3 | Digital Audio Broadcasting control unit | 42L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 46L |
| R3 | Cigarette lighter with ashtray illumination | 116L |
| R3e1 | Ashtray illumination | 116L |
| R3r1 | Cigarette lighter heating element | 117L |
| R3x1 | Electrical connector for cigarette lighter with ashtray illumination | 115J |
| U12 | Valid for left-hand drive vehicles | 15H |
| U13 | Valid for right-hand drive vehicles | 15J |
| U152 | Valid for gasoline engine 152 | 19G |
| U152 | Valid for gasoline engine 152 | 99G |
| U326 | Valid for nonsmoker package | 112G |
| U362 | Valid for gasoline engine 274 | 105G |
| W12 | Ground point (center console) | 85H |
| W12 | Ground point (center console) | 113H |
| W12 | Ground point (center console) | 116H |
| W15/5 | Left front footwell ground point | 16L |
| W15/7 | Right front footwell ground point | 16L |
| W7 | Right wheelhouse trunk ground point | 7H |
| W7 | Right wheelhouse trunk ground point | 94G |
| W7 | Right wheelhouse trunk ground point | 98G |
| W7 | Right wheelhouse trunk ground point | 107G |
| X133/3 | MAGIC SKY CONTROL electrical connector | 93J |
| X133/3 | MAGIC SKY CONTROL electrical connector | 97J |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 17J |
| X169 | Backup camera electrical connector | 50H |
| X175/1 | Left exhaust gas recirculation actuator motor electrical connector | 22J |
| X175/1 | Left exhaust gas recirculation actuator motor electrical connector | 102J |
| X175/2 | Right exhaust gas recirculation actuator motor electrical connector | 23J |
| X175/2 | Right exhaust gas recirculation actuator motor electrical connector | 103J |
| X237/1 | Mobile phone contact plate | 63L |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 109J |
| X28/29 | Driver seat/frame floor assembly airbag connecting point | 8H |
| X28/30 | Front passenger seat/frame floor assembly airbag connecting point | 9H |
| X39/37 | Mobile phone electrical connector | 62H |
| X58/37 | Center console stowage compartment socket | 113L |
| X58/37x1 | Center console stowage compartment socket electrical connector | 113J |
| X86 | Exhaust gas recirculation actuator motors electrical connector | 20J |
| X86 | Exhaust gas recirculation actuator motors electrical connector | 100J |
| Y93/1 | Left exhaust flap switchover valve | 22L |
| Y93/1 | Left exhaust flap switchover valve | 102L |
| Y93/2 | Right exhaust flap switchover valve | 24L |
| Y93/2 | Right exhaust flap switchover valve | 104L |
| Z195 | Exhaust flap circuit 15R connector sleeve | 21J |
| Z195 | Exhaust flap circuit 15R connector sleeve | 101J |
| Z195 | Exhaust flap circuit 15R connector sleeve | 105H |
| Z195/1 | Exhaust flap circuit 31 connector sleeve | 107H |
| Z195/2 | Exhaust flap actuation connector sleeve | 108H |
| Z28/77 | Compensator switching signal connector sleeve, receiver on/off | 84H |
| Z81 | Circuit 58d connector sleeve | 115G |
