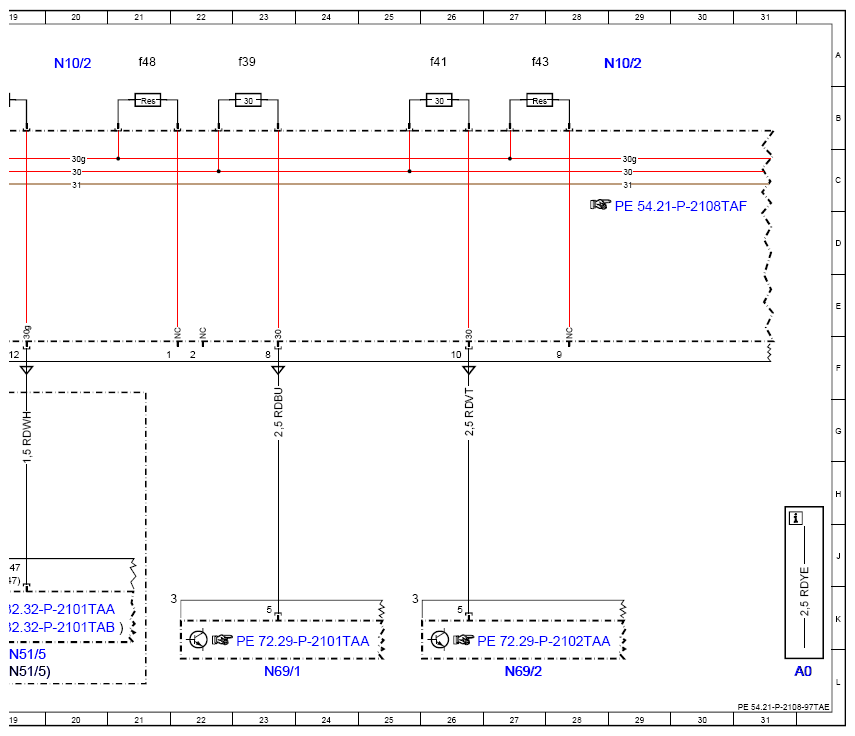

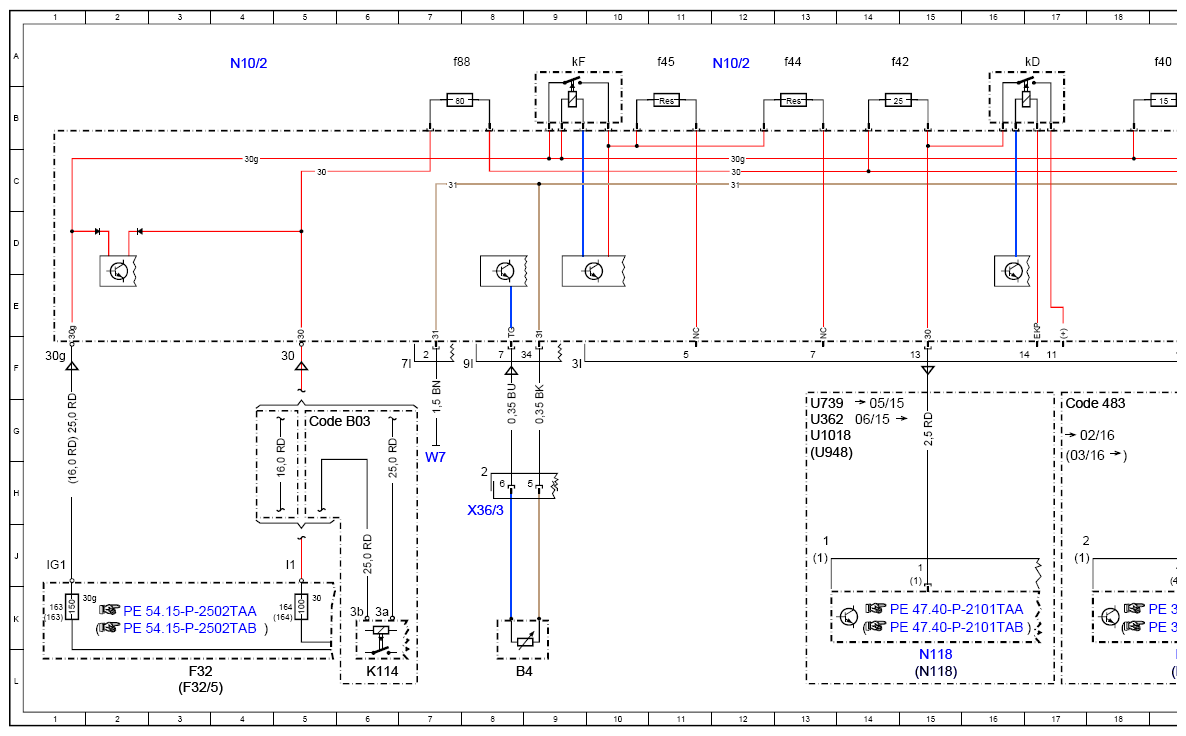

Wiring Diagram/Rear SAM Control Unit With Fuse And Relay Module (N10/2) - PE54.21-P-2108-97TAE
Model 172.4
Specification 5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4 | Fuel level indicator sensor | 8L |
| Code 483 | Vehicle dynamics package | 17G |
| Code B03 | ECO start/stop function | 5G |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f163 | Pre-fuse 163 | 1K |
| F32/5f164 | Pre-fuse 164 | 5K |
| F32f163 | Pre-fuse 163 | 1K |
| F32f164 | Pre-fuse 164 | 5K |
| K114 | ECO start/stop function additional battery relay | 6L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 29A |
| N10/2f39 | Fuse 39 | 23A |
| N10/2f40 | Fuse 40 | 19A |
| N10/2f41 | Fuse 41 | 26A |
| N10/2f42 | Fuse 42 | 14A |
| N10/2f43 | Fuse 43 | 27A |
| N10/2f44 | Fuse 44 | 13A |
| N10/2f45 | Fuse 45 | 11A |
| N10/2f48 | Fuse 48 | 21A |
| N10/2f88 | Fuse 88 | 7A |
| N10/2kD | Fuel pump relay | 17A |
| N10/2kF | Seat adjustment relay | 9A |
| N118 | Fuel pump control unit | 15L |
| N118 | Fuel pump control unit | 15L |
| N51/5 | Adaptive damping system control unit | 19L |
| N51/5 | Adaptive damping system control unit | 19L |
| N69/1 | Left door control unit | 23L |
| N69/2 | Right door control unit | 27L |
| U1018 | Valid for gasoline engine 276 | 13G |
| U362 | Valid for gasoline engine 274 | 13G |
| U739 | Valid for gasoline engine 271 DE | 13G |
| U948 | Valid for diesel engine 651 | 13G |
| W7 | Right wheelhouse trunk ground point | 7H |
| X36/3 | Fuel pump harness electrical connector | 8H |
