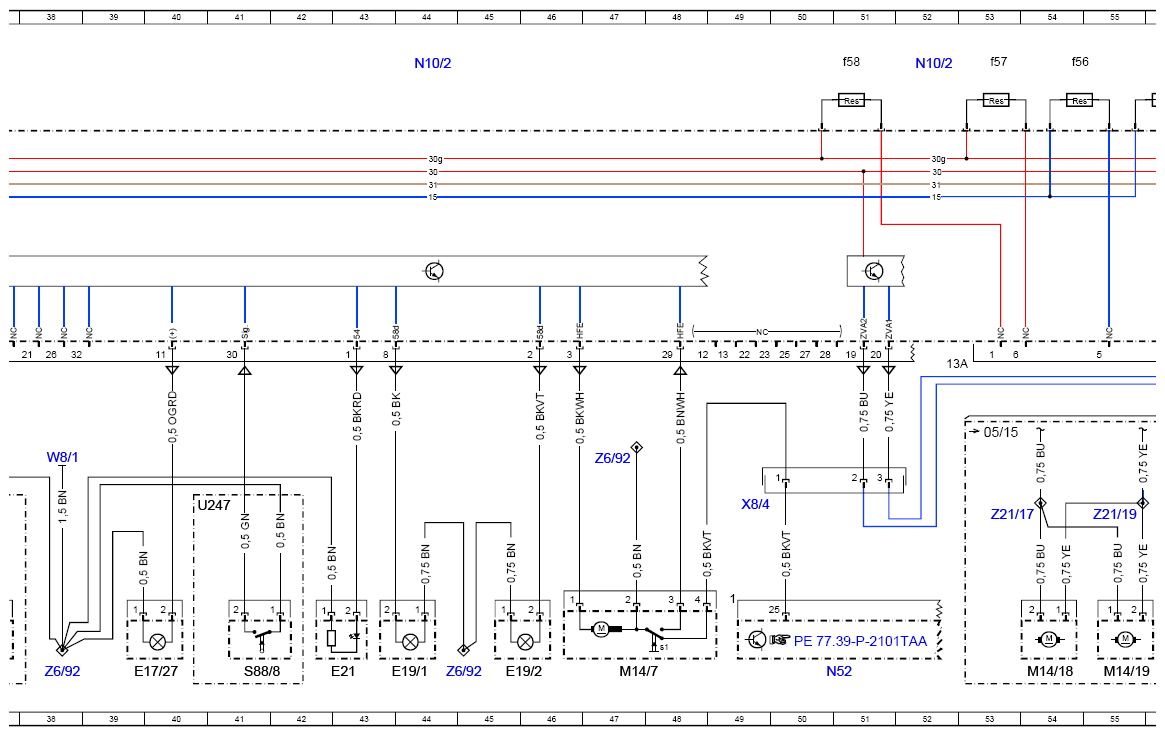

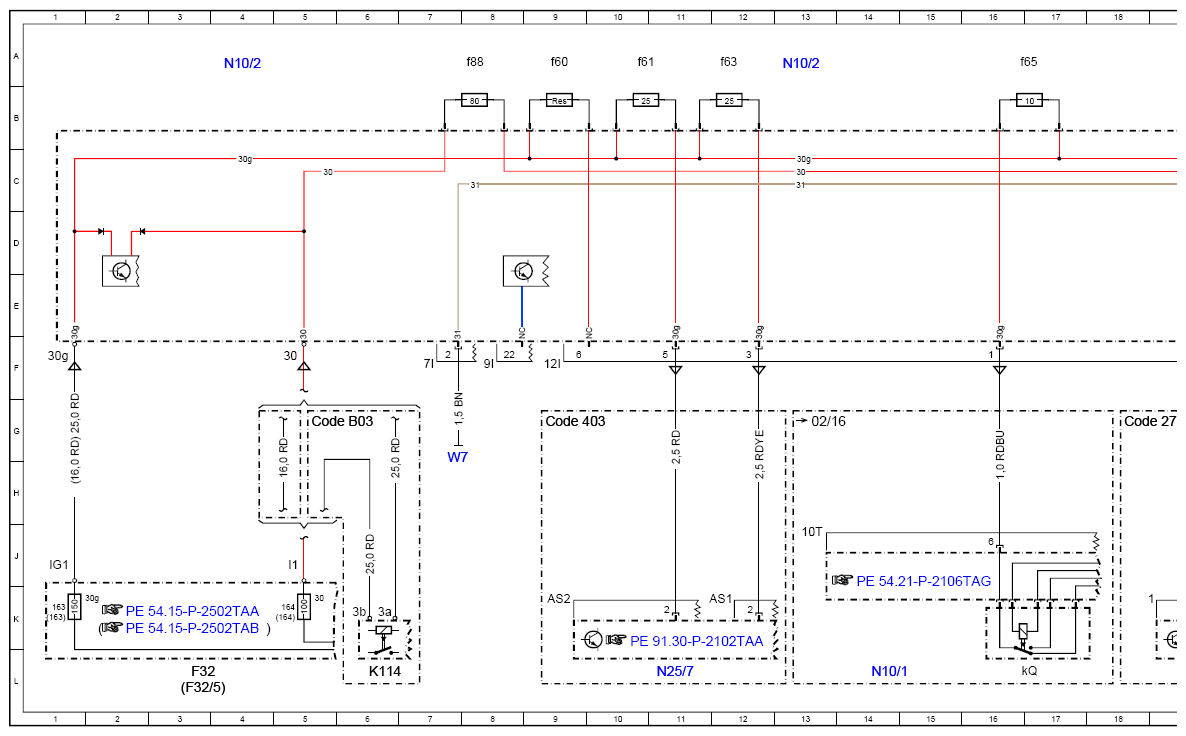

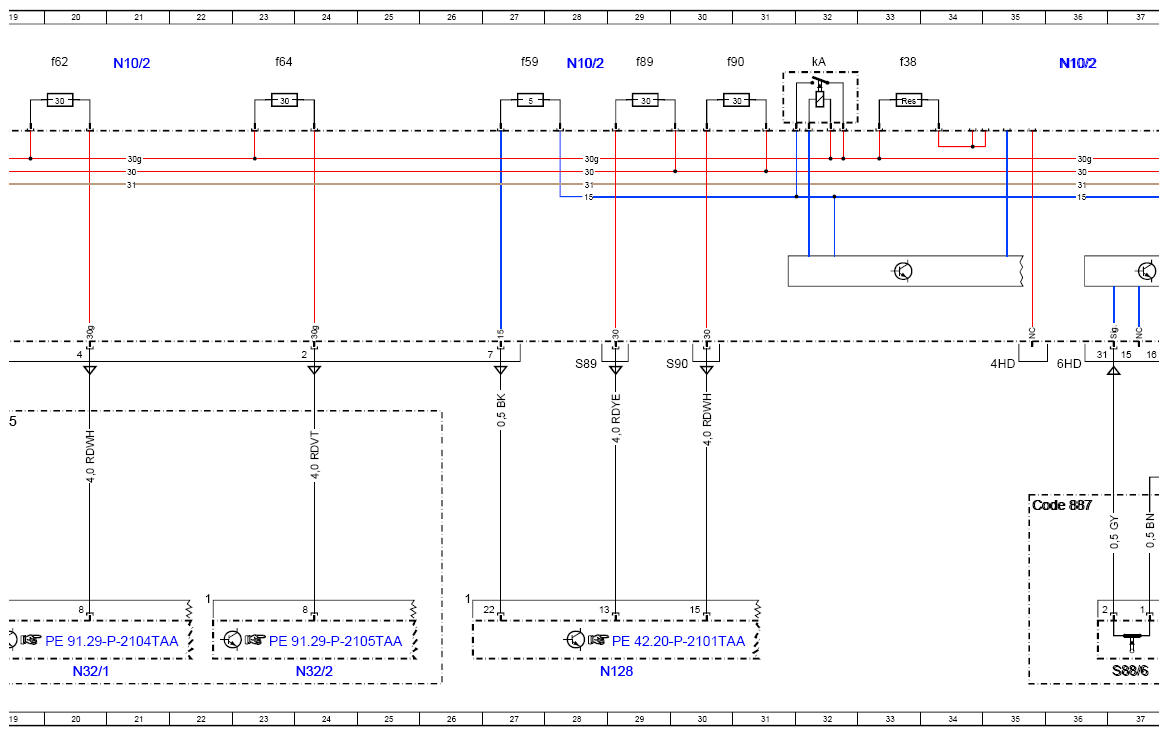

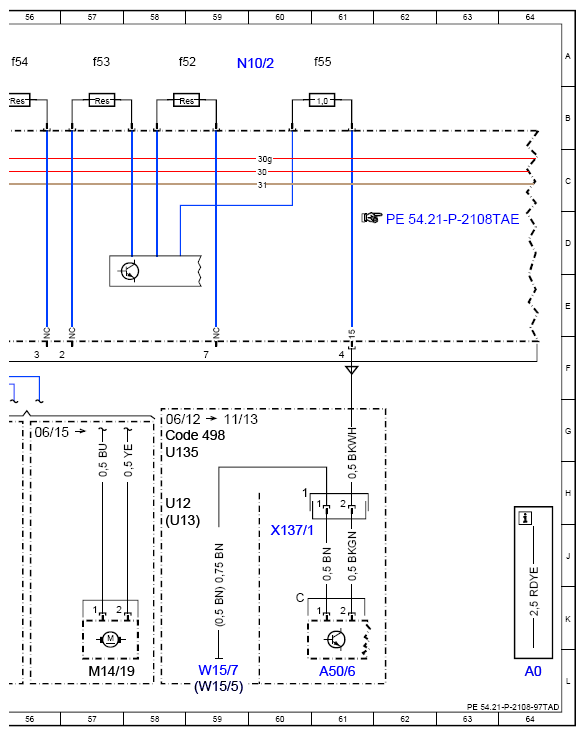

Wiring Diagram/Rear SAM Control Unit With Fuse And Relay Module (N10/2) - PE54.21-P-2108-97TAD
Model 172.4
Specification 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A50/6 | Dedicated Short-Range Communications control unit | 61L |
| Code 275 | Front passenger seat memory package/electrically adjustable driver seat | 18G |
| Code 403 | AIRSCARF system | 9G |
| Code 498 | Japan version | 58G |
| Code 887 | Valet parking | 35H |
| Code B03 | ECO start/stop function | 5G |
| E17/27 | Trunk lid warning/ambient lamp | 40L |
| E19/1 | Left license plate lamp | 44L |
| E19/2 | Right license plate lamp | 45L |
| E21 | Center stop lamp | 43L |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f163 | Pre-fuse 163 | 1K |
| F32/5f164 | Pre-fuse 164 | 5K |
| F32f163 | Pre-fuse 163 | 1K |
| F32f164 | Pre-fuse 164 | 5K |
| K114 | ECO start/stop function additional battery relay | 6L |
| M14/18 | Glove compartment central locking actuator motor | 54L |
| M14/19 | Stowage compartment central locking actuator motor | 55L |
| M14/19 | Stowage compartment central locking actuator motor | 57L |
| M14/7 | Trunk lid central locking motor | 47L |
| M14/7s1 | Trunk lid rotary tumbler switch | 48L |
| N10/1 | Front SAM control unit with fuse and relay module | 14L |
| N10/1kΩ | Backup relay | 17L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 13A |
| N10/2 | Rear SAM control unit with fuse and relay module | 21A |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 59A |
| N10/2f38 | Fuse 38 | 33A |
| N10/2f52 | Fuse 52 | 58A |
| N10/2f53 | Fuse 53 | 57A |
| N10/2f54 | Fuse 54 | 56A |
| N10/2f55 | Fuse 55 | 61A |
| N10/2f56 | Fuse 56 | 54A |
| N10/2f57 | Fuse 57 | 53A |
| N10/2f58 | Fuse 58 | 51A |
| N10/2f59 | Fuse 59 | 27A |
| N10/2f60 | Fuse 60 | 9A |
| N10/2f61 | Fuse 61 | 10A |
| N10/2f62 | Fuse 62 | 20A |
| N10/2f63 | Fuse 63 | 12A |
| N10/2f64 | Fuse 64 | 23A |
| N10/2f65 | Fuse 65 | 16A |
| N10/2f88 | Fuse 88 | 8A |
| N10/2f89 | Fuse 89 | 29A |
| N10/2f90 | Fuse 90 | 30A |
| N10/2kA | Circuit 15 relay | 32A |
| N128 | Electric parking brake control unit | 29L |
| N25/7 | AIRSCARF control unit | 11L |
| N32/1 | Driver seat control unit | 20L |
| N32/2 | Front passenger seat control unit | 24L |
| N52 | Vario roof control control unit | 51L |
| S88/6 | Trunk lid contact switch | 37L |
| S88/8 | Trunk lid external operation switch | 41L |
| U12 | Valid for left-hand drive vehicles | 58H |
| U13 | Valid for right-hand drive vehicles | 58J |
| U135 | Valid for Electronic Toll Collection | 58G |
| U247 | Valid for trunk lid contact switch | 40H |
| W15/5 | Left front footwell ground point | 59L |
| W15/7 | Right front footwell ground point | 59L |
| W7 | Right wheelhouse trunk ground point | 7H |
| W8/1 | Left tailgate ground point | 38H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 60J |
| X8/4 | Luggage compartment flap electrical connector | 49H |
| Z21/17 | Control circuit 1 central locking connector sleeve | 53H |
| Z21/19 | Control circuit 2 central locking connector sleeve | 55H |
| Z6/92 | Trunk lid ground connector sleeve | 38L |
| Z6/92 | Trunk lid ground connector sleeve | 44L |
| Z6/92 | Trunk lid ground connector sleeve | 47H |
