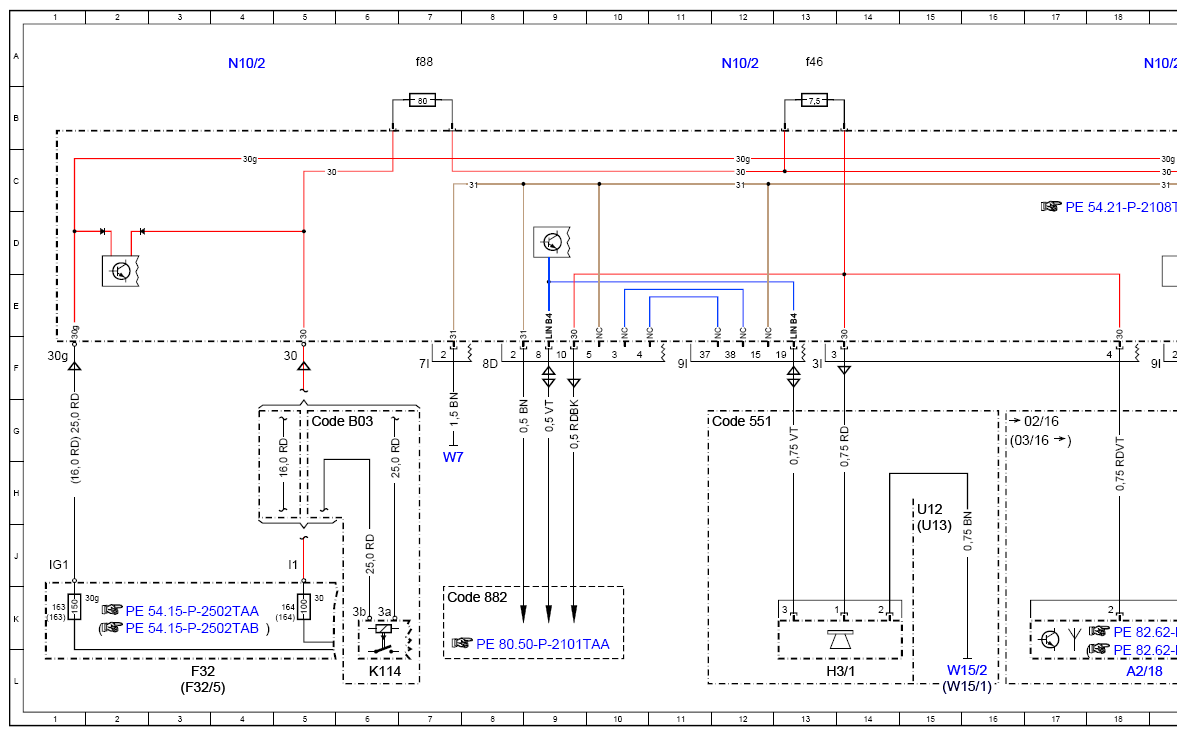

Wiring Diagram/Rear SAM Control Unit With Fuse And Relay Module (N10/2) - PE54.21-P-2108-97TAC
Model 172.4
Specification 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 18L |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 12G |
| Code 882 | Interior protection (only with ATA [EDW]) | 7K |
| Code B03 | ECO start/stop function | 5G |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f163 | Pre-fuse 163 | 1K |
| F32/5f164 | Pre-fuse 164 | 5K |
| F32f163 | Pre-fuse 163 | 1K |
| F32f164 | Pre-fuse 164 | 5K |
| H3/1 | Alarm siren | 13L |
| K114 | ECO start/stop function additional battery relay | 6L |
| LIN B4 | Rear SAM LIN | 9F |
| LIN B4 | Rear SAM LIN | 13F |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 19A |
| N10/2f46 | Fuse 46 | 13A |
| N10/2f88 | Fuse 88 | 7A |
| U12 | Valid for left-hand drive vehicles | 15H |
| U13 | Valid for right-hand drive vehicles | 15J |
| W15/1 | Right footwell ground point | 15L |
| W15/2 | Left footwell ground point | 15L |
| W7 | Right wheelhouse trunk ground point | 7H |
