Remove/Install Instrument Cluster - AR54.30-P-6015W

Model 172.4

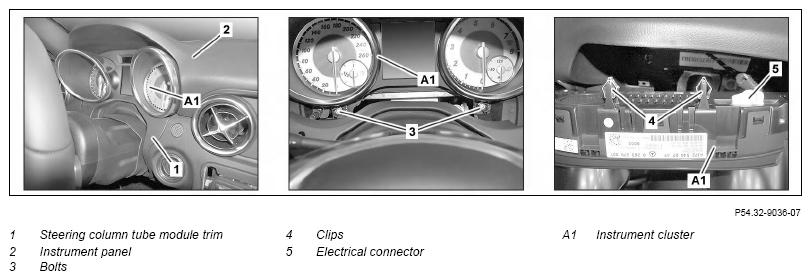

Fig 1: Instrument Cluster Components Location - Model 172.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

28.1.11

"Removal method" modified

Operation step 6

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Connect Star Diagnosis and perform initial startup of instrument cluster (A1)	When replacing the instrument cluster (A1).	AD00.00-P-2000-04A
2	Move steering wheel down and toward rear completely
3	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
4	Unclip steering column tube module trim (1) from instrument panel (2) and push toward rear	Long wedge	Fig 2
5	Remove bolts (3)	The bolts (3) remain on the instrument cluster (A1).
6	Unclip instrument cluster (A1) toward rear out of instrument panel (2) with two extraction hooks (6)	The instrument cluster (A1) is clipped in the instrument panel (2) with the clips (4). Pulling hook	Fig 3
7	Fold instrument cluster (A1) down at top out of instrument panel (2), disconnect electrical connector (5) and remove instrument cluster (A1)
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

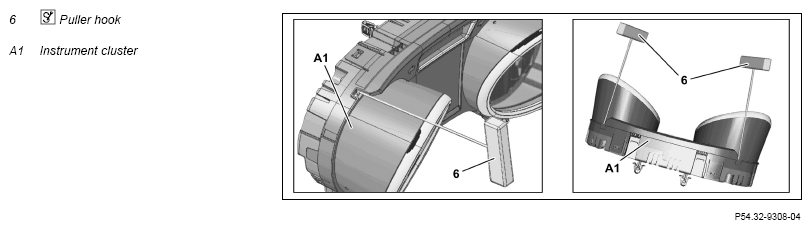

Fig 3: Identifying Pulling Hook (140 589 02 33 00)
