Relay Assignment Of Fuse And Relay Box In Trunk - GF54.15-P-1257-04RD

MODEL 172.4

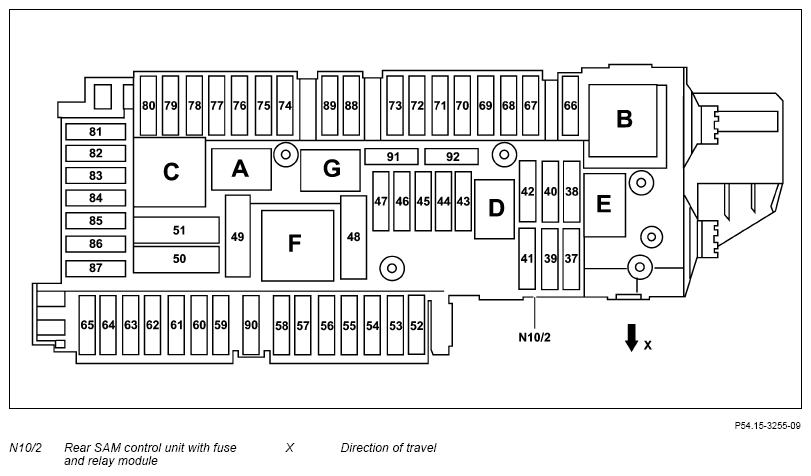

Fig 1: Fuse And Relay Box In Trunk - Model 172.4

Courtesy of MERCEDES-BENZ USA

Relay Identification	Designation
A	Terminal 15 relay (N10/2kA)
B	Circuit 15R relay (1) (N10/2kB)
C	Heated rear window relay (N10/2kC)
D	Fuel pump relay (N10/2kD)
R	Spare
F	Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
