Fuse Assignment Of Fuse And Relay Box In Trunk - GF54.15-P-1256-06RD
Model 172.4 up to model year 2017

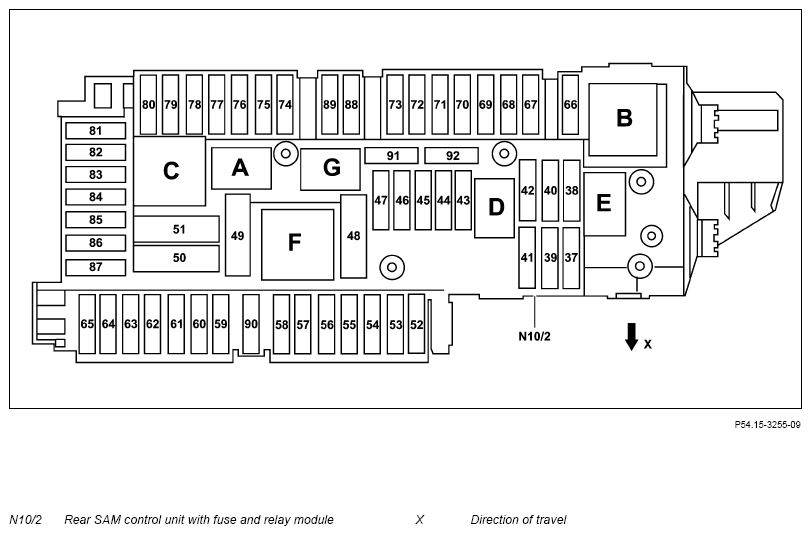

Illustration shows model 172.4
| Slot | Fuse Identification | Clamping device | Line ID (line fused) | Fused function | Rating in ampere s (A) |
|---|---|---|---|---|---|
| 37 | N10/2f37 | 15R | 0.75 RDBK | Driver seat NECK-PRO head restraint solenoid (Y24/12) | 7.5 |
| 15R | 0.75 RDBK | Front passenger seat NECK-PRO head restraint solenoid (Y24/13) | 7.5 | ||
| 38 | N10/2f38 | 30g | - | Spare | - |
| 39 | N10/2f39 | 30g | 2.5 RDBU | Left door control unit (N69/1) | 30 |
| 40 | N10/2f40 | 30g | 1.5 RDWH | Valid with CODE 483 (ADVANCED AGILITY package): Adaptive damping system control unit (N51/5) |
15 |
| 41 | N10/2f41 | 30 | 2.5 RDVT | Right door control unit (N69/2) | 30 |
| 42 | N10/2f42 | 30 | 2.5 RD | Fuel system control unit (N118) | 25 |
| 43 | N10/2f43 | 30g | - | Spare | - |
| 44 | N10/2f44 | 15R | - | Spare | - |
| 45 | N10/2f45 | 15R | - | Spare | - |
| 46 | N10/2f46 | 30 | 0.75 RDVT | FM, AM and CL [ZV] antenna amplifier (A2/18) | 7.5 |
| 30 | 0.75 RDVT | FM 2, DAB and TV antenna amplifier (A2/19) | 7.5 | ||
| 30 | 0.75 RD | Valid with CODE 882 (Interior monitoring): Alarm siren (H3/1) |
7.5 | ||
| 30 | 0.5 RDBK | Valid with CODE 882 (Interior monitoring): Interior protection sensor (A26/13) |
7.5 | ||
| 47 | N10/2f47 | Spare | |||
| 48 | N10/2f48 | 30g | - | Spare | - |
| 49 | N10/2f49 | 30g | 2.5 BK | Switched through the rear window heater relay (N10/2kC): Rear window heater (R1) | 30 |
| 50 | N10/2f50 | 30g | 4.0 YE | Valid with CODE 299 (PRE-SAFE® system): Right reversible emergency tensioning retractor (A76/1) |
50 |
| 51 | N10/2f51 | 30g | 4.0 RDVT | Valid with CODE 299 (PRE-SAFE® system): Left reversible emergency tensioning retractor (A76) |
50 |
| 52 | N10/2f52 | - | - | Spare | - |
| 53 | N10/2f53 | 54 | - | Spare | - |
| 54 | N10/2f54 | 15 | - | Spare | - |
| 55 | N10/2f55 | 15 | - | Spare | - |
| 56 | N10/2f56 | 15 | - | Spare | - |
| 57 | N10/2f57 | 30g | - | Spare | - |
| 58 | N10/2f58 | 30g | - | Spare | - |
| 59 | N10/2f59 | 15 | 0.5 BK | Electric parking brake control unit (N128) | 5 |
| 60 | N10/2f60 | 30g | - | Spare | - |
| 61 | N10/2f61 | 30g | 2.5 RD | Valid with CODE 403 (Airscarf system): AIRSCARF control unit (N25/7) |
25 |
| 62 | N10/2f62 | 30g | 4.0 RDWH | Valid with CODE 275 (Memory package): Driver seat control unit (N32/1) |
30 |
| 63 | N10/2f63 | 30g | 2.5 RDYE | Valid with CODE 403 (Airscarf system): AIRSCARF control unit (N25/7) |
25 |
| 64 | N10/2f64 | 30g | 4.0 RDVT | Valid with CODE 275 (Memory package): Front passenger seat control unit (N32/2) |
30 |
| 65 | N10/2f65 | 30 | 1.0 RDBU | Valid for transmission 722, 725 with CODE B03 (ECO start/stop function): Switched via backup relay (N10/1kΩ): Electric oil pump (M42) |
10 |
| 66 | N10/2f66 | 30g | - | Spare | - |
| 67 | N10/2f67 | 30g | 4.0 RD | Valid with CODE 810 (Sound system): Sound system amplifier control unit (N40/3) |
40 |
| 68 | N10/2f68 | 30g | - | Spare | - |
| 69 | N10/2f69 | 30g | - | Spare | - |
| 70 | N10/2f70 | 30g | 0.5 YERD | Valid with CODE 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
5 |
| 71 | N10/2f71 | 15R | - | Spare | - |
| 72 | N10/2f72 | 15R | 1.5 BKYE | Center console stowage compartment socket (X58/37) | 15 |
| 73 | N10/2f73 | 30g | - | Spare | - |
| 74 | N10/2f74 | 30 | 1.5 RD | Valid with CODE 889 (KEYLESS-GO): KEYLESS-GO control unit (N69/5) |
15 |
| 75 | N10/2f75 | 30 | 2.5 RDOG | Vario roof control control unit (N52) | 20 |
| 76 | N10/2f76 | 15R | 0.75 RDBK | Valid with CODE 412 (Glass Vario roof): MAGIC SKY CONTROL control unit (N53) |
7.5 |
| 77 | N10/2f77 | 30g | 0.5 RDYE | Valid with CODE 386 (Comfort telephony): Cellular telephone system antenna amplifier/compensator (A28/3) |
5 |
| 78 | N10/2f78 | 30g | 0.75 RD | Valid with CODE 518 (Media Interface): Media interface control unit (N125/1) |
7.5 |
| 79 | N10/2f79 | 30g | 0.75 RDWH | Valid with code 233 (DISTRONIC PLUS): Radar sensors control unit (N62/1) |
5 |
| 80 | N10/2f80 | 30g | 0.75 RD | Valid with CODE 230 (Exclusive parking assist): Parking system control unit (N62) |
7.5 |
| 81 | N10/2f81 | 30g | 0.75 RDYE | Valid with CODE 386 (Comfort telephony): Mobile phone electrical connector (X39/37) |
5 |
| 82 | N10/2f82 | 30g | - | Spare | - |
| 83 | N10/2f83 | 15R | 0.5 BKGN | Valid with CODE 498 (Japan version): VICS and Electronic Toll Collection power supply electrical connector (X137/1) |
7.5 |
| 84 | N10/2f84 | 30g | 0.5 RDVT | Valid with CODE 537 (Digital radio (DAB)): Digital Audio Broadcasting control unit (N87/3) |
5 |
| 30g | 0.5 RDVT | Valid with CODE 536 (SIRIUS satellite radio): Satellite digital audio radio (SDAR) control unit (N87/5) |
5 | ||
| 85 | N10/2f85 | 30g | 0.75 RDVT | Valid with CODE 865 (TV tuner): Digital TV tuner (A90/3) |
7.5 |
| 86 | N10/2f86 | 30g | - | Spare | 7.5 |
| 87 | N10/2f87 | 30 | 0.75 RDVT | Valid with CODE 359 (TELE AID emergency call system) or with CODE 348 (Emergency call/assistance system): Emergency call system control unit (N123/4) |
7.5 |
| 88 | N10/2f88 | 30 | - | Internal supply of rear SAM control unit with fuse and relay module (N10/2) | 80 |
| 89 | N10/2f89 | 30 | 4.0 RDYE | Electric parking brake control unit (N128) | 30 |
| 90 | N10/2f90 | 30 | 4.0 RDWH | Electric parking brake control unit (N128) | 30 |
| 91 | N10/2f91 | 30g | - | Spare | - |
| 92 | N10/2f92 | 30 | - | Spare | - |
