Fuse Assignment Of Fuse And Relay Box In Left Engine Compartment - GF54.15-P-1256-03RDM
Model 172.4 as of model year 2017

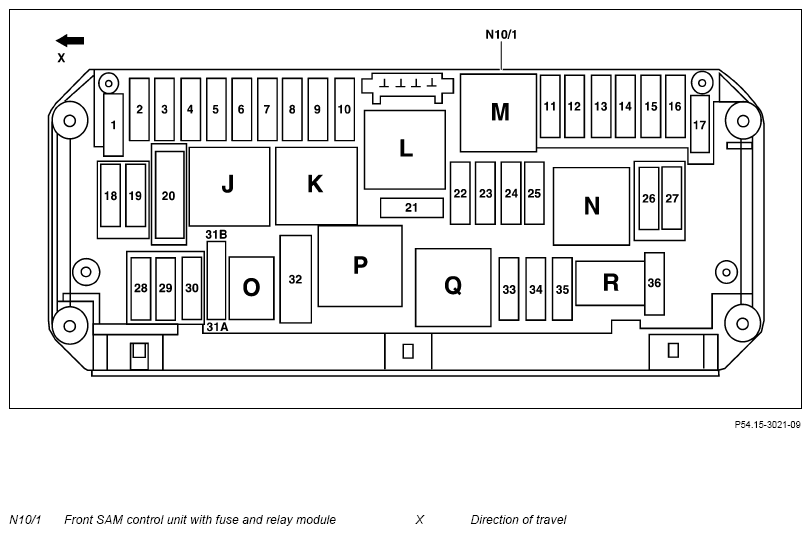

Illustration shows model 172.4
| Slot | Fuse Identification | Clamping device | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | N10/1f1 | 30 | 2.5 RDYE | Electronic Stability Program control unit (N30/4) | 25 |
| 2 | N10/1f2 | 30 | 2.5 RDVT | Vario roof control control unit (N52) | 30 |
| 3 | N10/1f3 | 30 | 2.5 RDBU | Vario roof control control unit (N52) | 30 |
| 4 | N10/1f4 | 15 | - | Spare | - |
| 5 | N10/1f5 | 15 | 0.75 RDWH | Rear SAM control unit with fuse and relay module (N10/2) | 7.5 |
| 15 | 0.75 RDWH | Electrohydraulic power steering (A91/1) via engine compartment/FFS electrical connector (X25/7) | 7.5 | ||
| 15 | 0.5 RDWH | Exterior lights switch (S1) | 7.5 | ||
| 6 | N10/1f6 | 15 | 0.75 PK | Valid for diesel engine: CDI control unit (N3/9) |
10 |
| 15 | 0.75 PK | Valid for gasoline engine: ME-SFI control unit (N3/10) |
10 | ||
| 7 | N10/1f7 | 15 | 2.5 VTWH | Starter (M1) via starter circuit 50 relay (N10/1kM) | 20 |
| 8 | N10/1f8 | 15R | 0.75 BKYE | Supplemental Restraint System control unit (N2/10) | 7.5 |
| 9 | N10/1f9 | 15R | 1.5 BKYE | Vehicle interior socket, front (X58/17) | 15 |
| 10 | N10/1f10 | 15R | 2.5 RDVT | Wiper motor (M6/1) | 30 |
| 11 | N10/1f11 | 30g | 0.5 BURD | Audio/COMMAND display (A40/8) | 7.5 |
| 30g | 0.75 BURD | Audio/COMMAND control panel (A40/9) | 7.5 | ||
| 12 | N10/1f12 | 30g | 0.75 RDVT | ACC control and operating unit (N22/7) | 7.5 |
| 30g | 0.75 RDBU | Overhead control panel control unit (N70) | 7.5 | ||
| 30g | 1.0 RDBK | Valid with code 476 (Lane Keeping Assist): Steering column tube module control unit (N80) |
7.5 | ||
| 13 | N10/1f13 | 30g | 0.75 RD | Steering column tube module control unit (N80) | 7.5 |
| 30g | 0.75 RDWH | Valid with code 476 (Lane Keeping Assist), code 513 (Traffic Sign Assist), code 608 (Adaptive Highbeam Assist) and code 628 (Adaptive Highbeam Assist Plus): Multifunction camera (A40/11) |
7.5 | ||
| 14 | N10/1f14 | 30g | 0.75 RDBK | Electronic Stability Program control unit (N30/4) | 7.5 |
| 15 | N10/1f15 | 30g | 0.75 RDWH | Supplemental Restraint System control unit (N2/10) | 7.5 |
| 16 | N10/1f16 | 30g | 0.5 RDBK | Valid with code 531 (COMMAND APS): Radio fan electrical connector (X120) |
5 |
| 30g | 0.5 RDYE | Valid with transmission 725: DIRECT SELECT INTERFACE (N150) |
5 | ||
| 17 | N10/1f17 | 30g | 2.5 GNBK | Valid with code 640 (High-performance LED) or code 641 (Dynamic LED headlamp, left-hand traffic) or code 642 (Dynamic LED headlamp, right-hand traffic): Left front lamp unit (E1) and right front lamp unit (E2) |
30 |
| 18 | N10/1f18 | 30 | 0.75 RD | Upper control panel control unit (N72/1) | 7.5 |
| 30 | 0.75 RD | Overhead control panel control unit (N70) | 7.5 | ||
| 19 | N10/1f19 | 30 | 1.5 RDBU | Valid with transmission 725: Electronic ignition lock control unit (N73) |
20 |
| 30 | 1.5 RDBU | Valid for manual transmission: Electronic ignition lock control unit (N73) Electric steering lock control unit (N26/5) |
20 | ||
| 20 | N10/1f20 | 30 | 4.0 RD | Electronic Stability Program control unit (N30/4) | 40 |
| 21 | N10/1f21 | 15R | 0.5 YEWH | Glove compartment lamp (E13/1) | 7.5 |
| 22 | N10/1f22 | 87M | 1.5 BKRD | Fan motor for internal combustion engine and air conditioning with integrated control (M4/7) | 15 |
| 87M | 1.5 BKRD | Valid for engine 276: Electrical connector for interior harness and engine wiring harness (X26) |
15 | ||
| 87M | 2.5 BKRD | Valid for engine 274: Electrical connector for interior harness and engine wiring harness (X26) |
15 | ||
| 87M | 1.5 BKRD | Valid for engine 651: Engine compartment/vehicle interior electrical connector (X25/2) |
15 | ||
| 87M | 2.5 BKRD | Valid for engine 276: Circuit 87 M2e connector sleeve (Z7/36) |
15 | ||
| 87M | 1.5 RD | Valid for engine 274: Connector sleeve, circuit 87/2 (Z7/48z1) |
15 | ||
| 87M | 1.5 BKRD | Valid for diesel engine: CDI control unit (N3/9) |
15 | ||
| 23 | N10/1f23 | 87M | 2.5 BK | Valid for engine 274, 276: Electrical connector for interior harness and engine wiring harness (X26) |
20 |
| 87M | 2.5 BK | Valid for diesel engine: Quantity control valve (Y94) |
20 | ||
| 87M | 2.5 RDBU | Valid for diesel engine: Circuit 87 M1e connector sleeve (Z7/35) |
20 | ||
| 24 | N10/1f24 | 87M | 2.5 RDBU | Valid for engine 274: Electrical connector for interior harness and engine wiring harness (X26) |
15 |
| 87M | 1.5 RDBU | Valid for engine 276: Electrical connector for interior harness and engine wiring harness (X26) |
15 | ||
| 87M | 0.5 BUBK | Valid for engine 274: Coolant circulation pump relay (K60) |
15 | ||
| 87M | 2.5 RDBU | Valid for diesel engine: Engine compartment/vehicle interior electrical connector (X25/2) |
15 | ||
| 87M | 1.0 BKRD | Valid with code 830 (Additional parts for China vehicles): Radiator shutters actuator (Y84) |
15 | ||
| 25 | N10/1f25 | 87M | 2.5 RDVT | Valid for engine 276: Circuit 87 M4e connector sleeve (Z7/99) |
15 |
| 87M | 2.5 RDVT | Valid for engine 274: Circuit 87M1 connector sleeve (Z7/95z1) |
15 | ||
| 87M | 1.0 RDBU | Valid for diesel engine: Oxygen sensor upstream of catalytic converter (G3/2) |
15 | ||
| 87M | 0.75 RD | Valid for engine 651: NOx sensor control unit downstream of diesel particulate filter (N37/7) NOx sensor control unit downstream of SCR catalytic converter (N37/8) |
15 | ||
| 26 | N10/1f26 | 30g | 2.5 WHBK | Valid with code 640 (High-performance LED) or code 641 (Dynamic LED headlamp, left-hand traffic) or code 642 (Dynamic LED headlamp, right-hand traffic): Left front lamp unit (E1) and right front lamp unit (E2) |
20 |
| 27 | N10/1f27 | 30z | 0.5 RDWH | Valid for diesel engine: CDI control unit (N3/9) |
7.5 |
| 30z | 0.5 RDWH | Valid for gasoline engine: ME-SFI control unit (N3/10) |
7.5 | ||
| 30z | 0.75 YEOG | Electronic ignition lock control unit (N73) | 7.5 | ||
| 28 | N10/1f28 | 30 | 0.75 RDVT | Instrument cluster (A1) | 7.5 |
| 30 | 0.75 BK | Valid with CODE 246 (analog clock): Analog clock (A70/1) |
7.5 | ||
| 29 | N10/1f29 | 15 | 0.5 BKRD | Valid except code 640 (High-performance LED) and except code 641 (Dynamic LED headlamp, left-hand traffic) and except code 642 (Dynamic LED headlamp, right-hand traffic) and except code 460 (Canada version) and except code 494 (USA version): Right headlamp range adjustment actuator motor (E2m1) |
10 |
| 30 | N10/1f30 | 15 | 0.5 BKRD | Valid except code 640 (High-performance LED) and except code 641 (Dynamic LED headlamp, left-hand traffic) and except code 642 (Dynamic LED headlamp, right-hand traffic) and except code 460 (Canada version) and except code 494 (USA version): Left headlamp range adjustment actuator motor (E1m1) |
10 |
| 31A | N10/1f31A | 15R | 1.0 BK | Switched through the horns relay (N10/1kO): Left fanfare horn (H2) Right fanfare horn (H2/1) | 15 |
| 31B | N10/1f31B | 30 | 1.0 BK | Switched through the horns relay (N10/1kO): Left fanfare horn (H2) Right fanfare horn (H2/1) | 15 |
| 32 | N10/1f32 | 30 | 6.0 BK | Valid for engine 274: Switched through the secondary air injection/AdBlue® relay (N10/1 kP): Electric air pump (M33) |
40 |
| 30 | 6.0 RDBK | Valid for engine 651: Switched through the secondary air injection/AdBlue® relay (N10/1 kP): AdBlue® control unit (N118/5) |
40 | ||
| 33 | N10/1f33 | 87F | - | Spare | - |
| 34 | N10/1f34 | 87F | 0.75 VTBU | Fuel system control unit (N118) | 7.5 |
| 87F | 0.75 VTBU | Valid for engine 651: AdBlue® control unit (N118/5) |
7.5 | ||
| 35 | N10/1f35 | 87F | 0.5 BKYE | Electronic Stability Program control unit (N30/4) | 5 |
| 87F | 0.75 BKWH | Valid with CODE 234 (Blind Spot Assist): Right outer rear bumper integrated radar sensor (B92/6) and left outer rear bumper integrated radar sensor (B92/11) |
5 | ||
| 36 | N10/1f36 | 87F | 0.75 BKRD | Valid with CODE 258 (COLLISION PREVENTION ASSIST): COLLISION PREVENTION ASSIST controller unit (A90) |
7.5 |
| 87F | 0.75 BKRD | Valid with CODE 239 (DISTRONIC PLUS): DISTRONIC electric controller unit (A89) |
7.5 |
