Fuse Assignment Of Front Pre-Fuse Box - GF54.15-P-1256-07RDA
Model 172.4 up to model year 2017 with code B03 (ECO start/stop function)

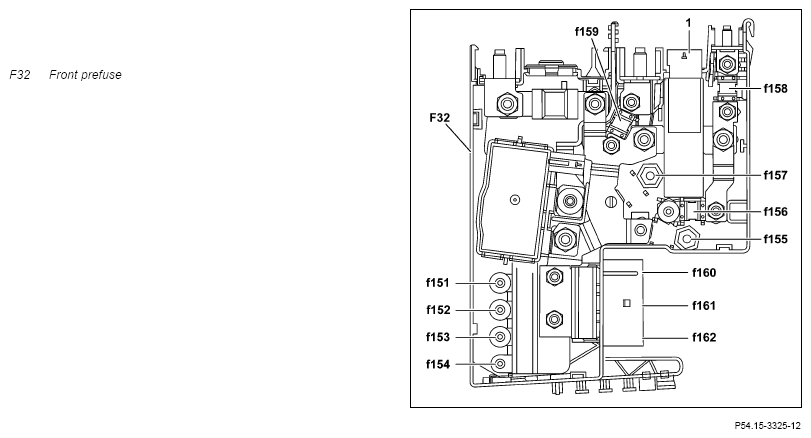

Illustration shows model 172.4
| Slot | Fuse Identification | Clamping device | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| f150 | F32f150 | 30 | - | Spare | - |
| f151 | F32f151 | 30 | 10.0 RD | Fan motor for internal combustion engine and air conditioning with integrated control (M4/7) | 100 |
| f152 | F32f152 | 30 | 16.0 RD | Front SAM control unit with fuse and relay module (N10/1) | 150 |
| f153 | F32f153 | 30 | 6.0 RD | Front SAM control unit with fuse and relay module (N10/1) | 100 |
| f154 | F32f154 | 30 | - | Spare | - |
| f155 | F32f155 | 30 | - | Spare | - |
| f156 | F32f156 | 30 | - | Spare | - |
| f157 | F32f157 | 30 | 10.0 BK | Valid as of 01.06.2015 Electrohydraulic power steering (A91/1) |
100 |
| f158 | F32f158 | 30 | 4.0 RD | Blower regulator (A32n1) and blower motor (A32m1) | 50 |
| f159 | F32f159 | 30 | 4.0 RDBK | Vario roof control control unit (N52) | 40 |
| f160 | F32f160 | 30 | 6.0 RDBK | Valid with transmission 725: Fully integrated transmission control controller unit (Y3/8) |
60 |
| f161 | F32f161 | 30g | 10.0 RD | Front SAM control unit with fuse and relay module (N10/1) | 100 |
| f162 | F32f162 | 30g | - | Spare | - |
| f163 | F32f163 | 30g | 25.0 RD | Rear SAM control unit with fuse and relay module (N10/2) | 150 |
| f164 | F32f164 | 30 | 25.0 RD | Supply via ECO start/stop function additional battery (G1/13) | 100 |
