Seam Sealing Following Repair, Side Damage - Ar97.10-P-4000-03W
Model 172
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
Seal connecting flange of repaired area with body sealant to prevent corrosion and leakage.
Observe standard seals!
Seal only on primed body parts.
Insert plastic plugs and grommets with sealing compound.
Seal spot welds and rivets in repaired area with seam sealant material.
Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves.
Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
When sealing seams we differentiate between:

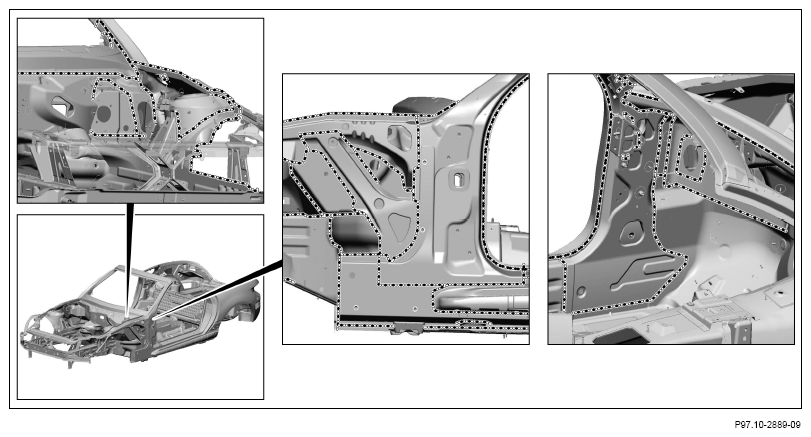

Area of front end, A-pillar

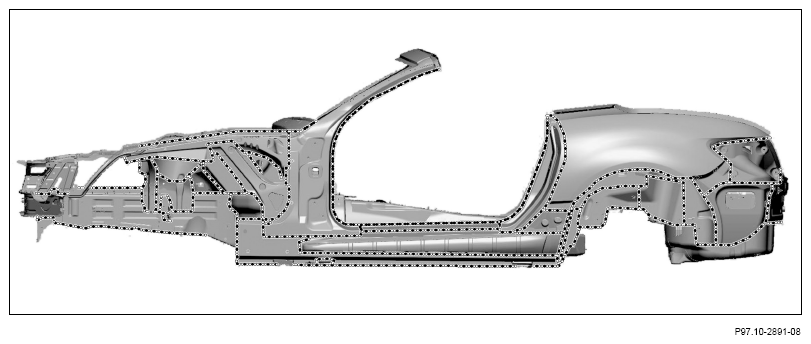

Area of rear fender and left outer longitudinal member.

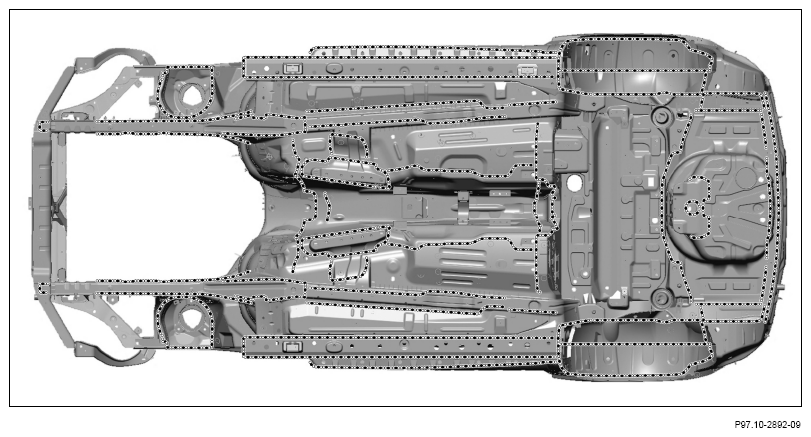

Area of underfloor and wheel well.
