Check Position Of Rear Window, Adjust If Necessary - AR67.20-P-3002W

MODEL 172.4

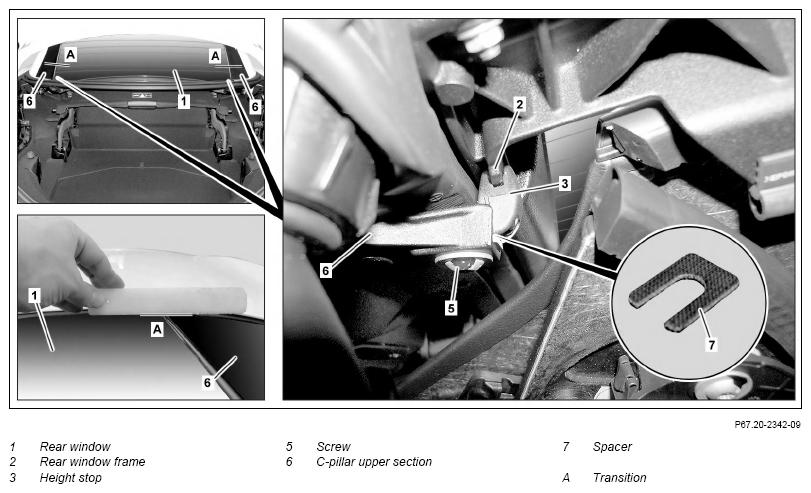

Fig 1: Rear Window Components Location - Model 172.4

Courtesy of MERCEDES-BENZ USA

	Checking
1	Open trunk lid	The Vario roof must be completely closed and locked.
2	Check position of rear window (1) on left and right side of the vehicle	The rear window frame (2) should rest against the left and right height stops (3) under slight tension with zero clearance. Simultaneously the overlap (A) between the rear window (1) and the cover to the C-pillar top sections (6) should be flush.
	Adjust
3	Remove bolt (5)	Adjust at one or both sides of the vehicle if required.
4	Carefully press rear window (1) upward and remove height stop (3) from C-pillar top section (6)
5	Correct adjustment by inserting or removing spacers (7)
6	Position height stop (3) between rear window frame (2) and C-pillar top section (6) and tighten bolt (5)
7	Check adjustment, repeat adjustment if necessary.
8	Close trunk lid
