Remove/Install Rear Shelf Limit Switch - AR77.39-P-3715W
Model 172.4
MODIFICATION NOTES
| 20.2.14 | Remove crossmember cover added | Work steps 1 through 13 |
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||
| Remove/install | |||
| 1 | Open Vario roof fully | ||
| 2 | Completely move front seats and backrests toward front | ||
| 3 | Switch off ignition | ||
| 4 | Remove draft stop or left right glass draft stop (1) and associated brackets from roll bars | ||
| 5 | Remove center speaker cover (2) | ||
| 6 | Remove left and right speaker cover with belt guide (3) and allow to hang on seat belt | ||
| 7 | Remove cross member paneling (4) | ||
| 8 | Remove left and right coat hanger hooks (5) | ||
| 9 | Remove pocket (6) from rear wall cover (7) | ||
| 10 | Remove left and right cover (8) from rear wall paneling (7) | ||
| 11 | Fold rear wall paneling (7) toward front until cross member cover (9) can be removed | ||
| 12 | Remove crossmember cover (9) and lay down toward front with electrical lines connected | ||
| 13 | Completely close Vario roof | ||

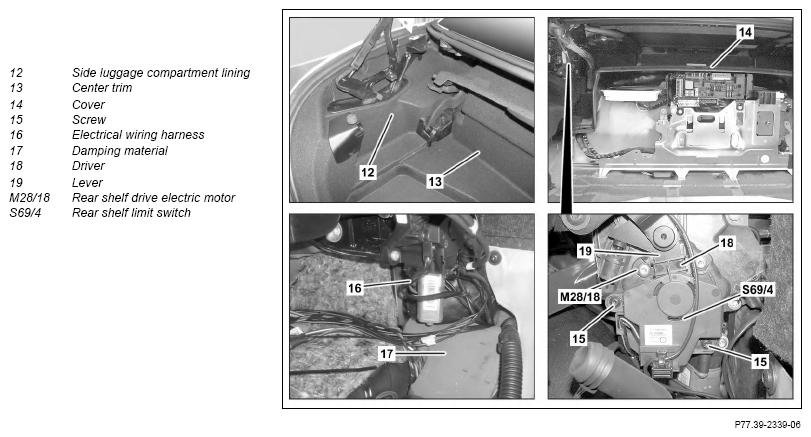

| 14 | Remove left side trunk paneling (12) and center paneling (13) | AR68.30-P-4600W | |
| 15 | Remove cover (14) | ||
| 16 | Unscrew bolts (15) and remove rear shelf limit switch (S69/4) from rear shelf drive electric motor (M28/18) | ||
| 17 | Remove soundproofing (17) | ||
| 18 | Disconnect electrical connection (11) | ||
| 19 | Expose electrical wiring harness (16) and remove rear shelf limit switch (S69/4) from trunk | ||
| 20 | Install in the reverse order |
