Remove/Install Paneling On C-Pillar Upper Section For Vario Roof - AR77.50-P-6763W

MODEL 172.4, 231

Shown on model 174.4

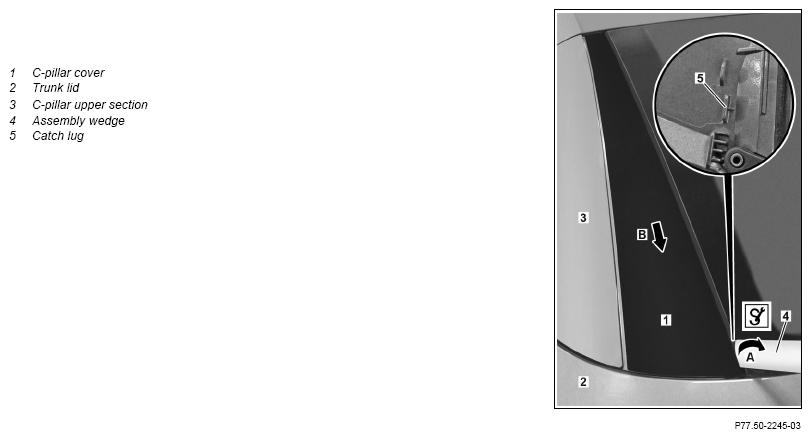

Fig 1: Paneling On C-Pillar Upper Section For Vario Roof Components Location - Model 172.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open trunk lid (2)
2	Unclip C-pillar cover (1) at lower corner in direction of arrow (A) using assembly wedge (4)	Carefully unclip C-pillar cover (1) only at lower corner. Catch lug (5) can break off easily from C-pillar top section (3). Clip in C-pillar cover (1) with slight pressure.
		Mounting wedge	Fig 2
3	Manually remove C-pillar cover (1) from C-pillar top section (3) from top to bottom in direction of arrow (B)	Check arrest lug (5).
4	Install in the reverse order
