Remove/Install Bowden Cables For Lock On Front Of Vario Roof - AR77.33-P-3486W
Model 172.4, 231
Shown on left Bowden cable (1), with partially opened Vario roof on model 172.4

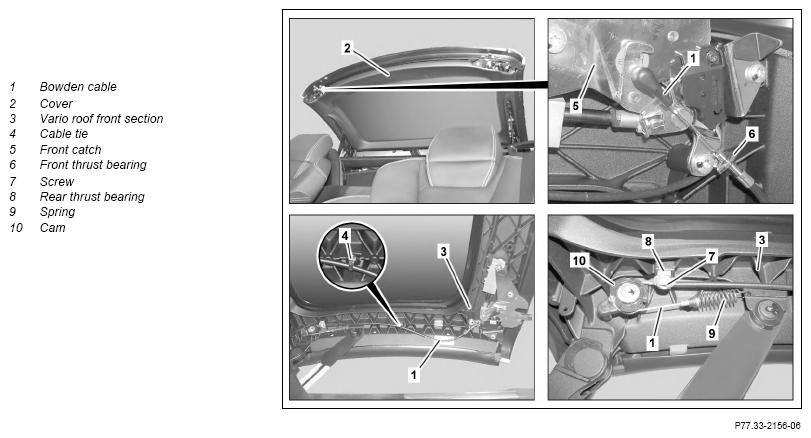

Fig 1: Bowden Cables For Lock On Front Of Vario Roof Components Location - Model 172.4 (Shown On Left Bowden Cable (1), With Partially Opened Vario Roof)
| Remove/install | |||
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on MAGIC SKY CONTROL | AH77.00-P-0001-01A | ||
| 1 | Remove trim (2) from Vario roof front section (3) | Refer to: ↓ Set the Bowden cables for the lock on the front Vario roof. |
AR77.33-P-3485W |
| 2 | Mark the location of cable tie (4) on left/right Bowden cable (1) and open cable tie (4) Notes on Vario roof assembly work | AH77.30-P-0002-01R | |
| 3 | Unclip Bowden cable (1) from left/right front latch (5) | ||
| 4 | Mark the installation position of Bowden cable (1) on front thrust bearing (6) | ||
| 5 | Remove Bowden cable (1) from front thrust bearing (6) | ||
| 6 | Unscrew bolt (7) and remove Bowden cable (1) from rear thrust bearing (8) | ||
| 7 | Unhook spring (9) from Vario roof front section (3) | ||
| 8 | Unhook Bowden cable (1) from eccentric (10) and remove it | ||
| 9 | Install in the reverse order |
