Remove, Install Adhesive Foil At Center Of Vario Roof - AR77.35-P-1100V

MODEL 172

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on Vario roof assembly work		AH77.30-P-0002-01R

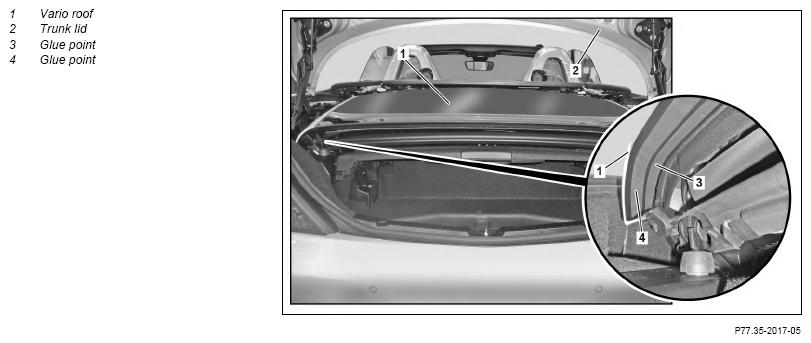

1	Open Vario roof (1)
2	Raise vehicle with vehicle lift		AR00.60-P-0100T
3	Open trunk lid (2)
4	Remove both adhesive foils from Vario roof (1) in center	Observe installation position of adhesive foil for longitudinal cut.
	Install
5	Clean adhesive points (3, 4) on Vario roof (1) in center	Completely remove adhesive residues. Cleaner	*BR00.45-Z-1025-04A

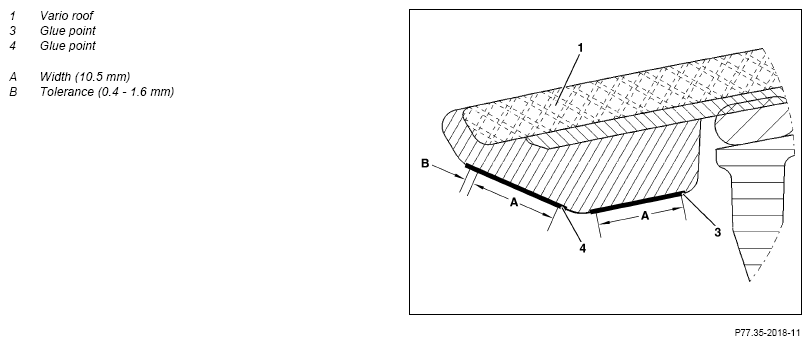

6	Attach both adhesive foils	Use new adhesive foil Glue in adhesive foil in center of gluing points (3, 4). Observe tolerance (B) on adhesive points (4). Cut ends of adhesive foil to size after gluing in to installation position. Roller	Fig 1
		Adhesive foil	*BR00.45-Z-1104-01A
7	Close Vario roof (1)

Fig 1: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1104-01A	Adhesive foil	A 172 989 00 85
