Remove Spare Tire Well - Ar64.20-P-1245-01V

Courtesy of MERCEDES-BENZ USA

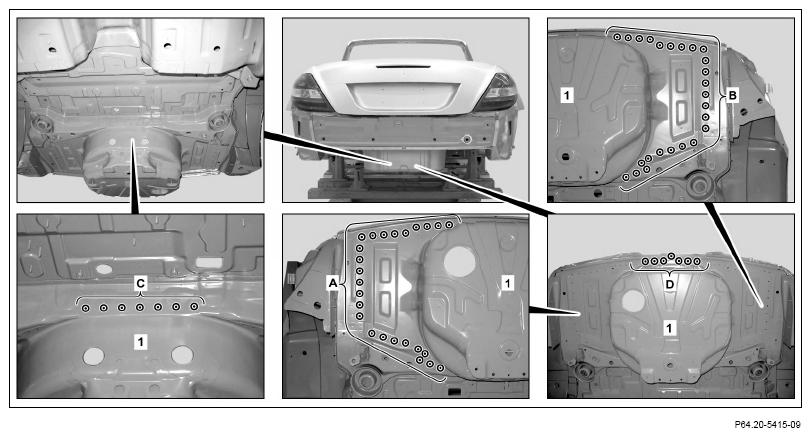

The following operation steps are shown on model 171.

1. Expose spot welds and cut out (areas A, B, C and D).
2. Remove spare tire well (1).
3. Grind spot welds on body down flat.
4. Remove shavings and drill chips.
