Prepare Rear Center Section With Cross Member - Ar64.20-P-1060-05V

  1. Grind mating surfaces on rear center section (1) down to bare metal in cross-hatched areas.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides. Area (E) only present on model 171.

  2. Coat insides of spot weld flanges with zinc dust paint.
    G13842487Courtesy of MERCEDES-BENZ USA

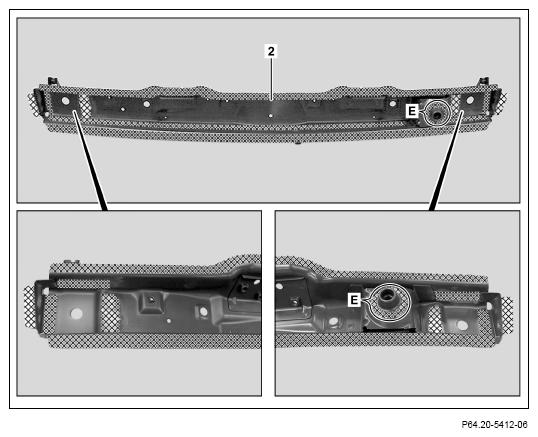

  3. Grind mating surfaces on cross member (2) down to bare metal in cross-hatched areas.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides. Area (E) only present on model 171.

  4. Coat insides of spot weld flanges with zinc dust paint.
    G13842501Courtesy of MERCEDES-BENZ USA
