Install Spare Tire Well - Ar64.20-P-1245-03V

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on model 171.

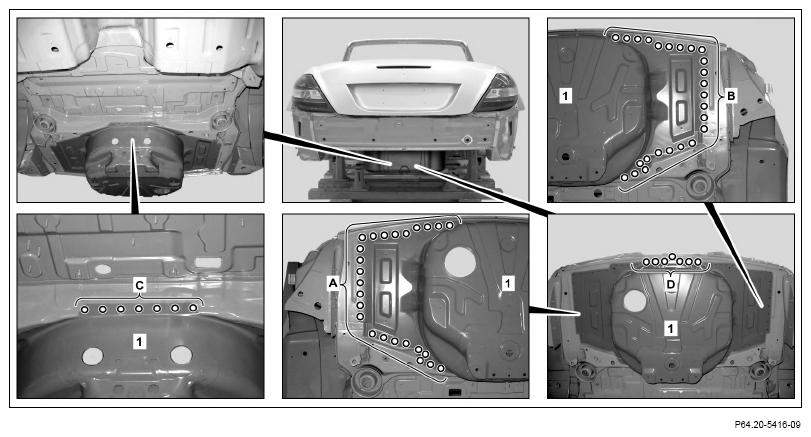

1. Install spare wheel well (1), fit and fix in place.
2. Drill Ø 6.7 mm rivet holes in spare wheel well (1) (areas A, B, C and D).
3. Remove spare tire well (1).
4. Deburr rivet holes on both sides.
5. Apply zinc dust paint to insides of riveted joints.

   Courtesy of MERCEDES-BENZ USA

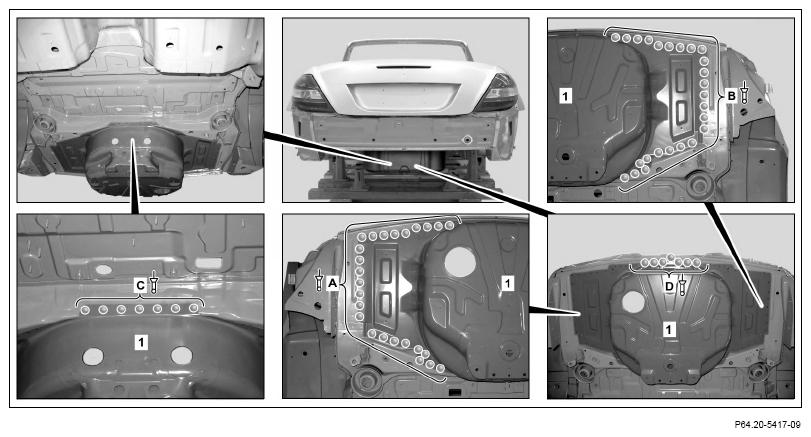

6. Install spare wheel well (1) and fix in place.
7. Drill spare wheel well (1) with Ø 6.5X12.5 mm rivets (areas A, B, C and D).
