Install And Weld In Bottom Rear Center Section - Ar64.20-P-1000-08V

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on model 171.

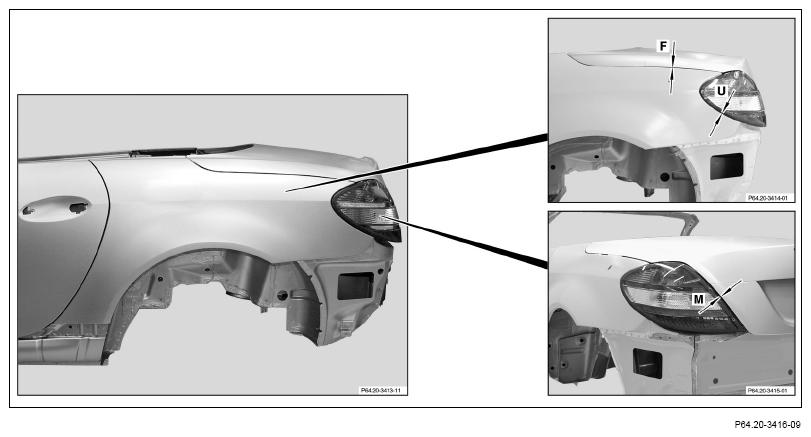

1. Install rear center section, trunk lid, taillamps, spacers, striker eye and fit.
2. Check and adjust gaps.

   Use feeler gauge!

3. Fix rear center section in place.
4. Remove trunk lid, taillamps, spacers and lock striker

   Courtesy of MERCEDES-BENZ USA

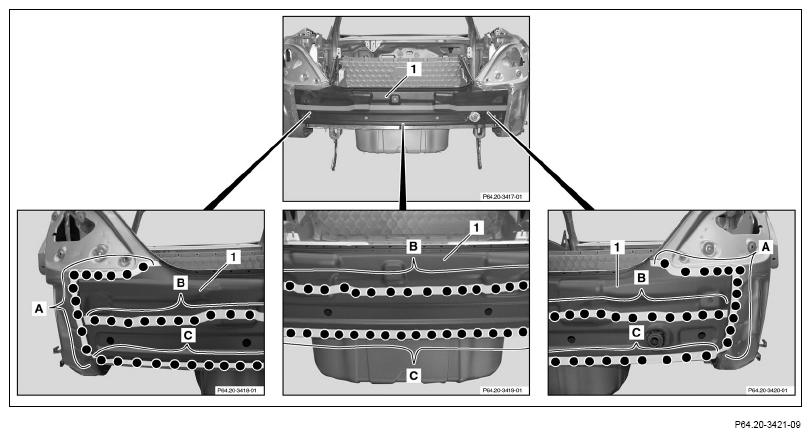

5. Weld in rear center section (1) with (areas A, B and C).
6. Rear center section (1) (area D 1, D2, D3).

   Area (D2) only present on model 171.

   Courtesy of MERCEDES-BENZ USA

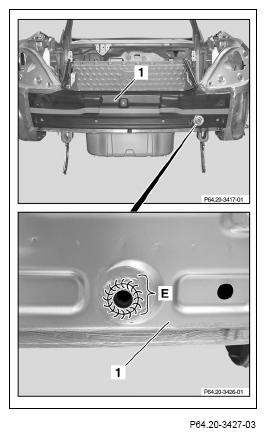

7. Weld in rear center section (1) with (area E).

   Only perform on model 171.

   Courtesy of MERCEDES-BENZ USA
