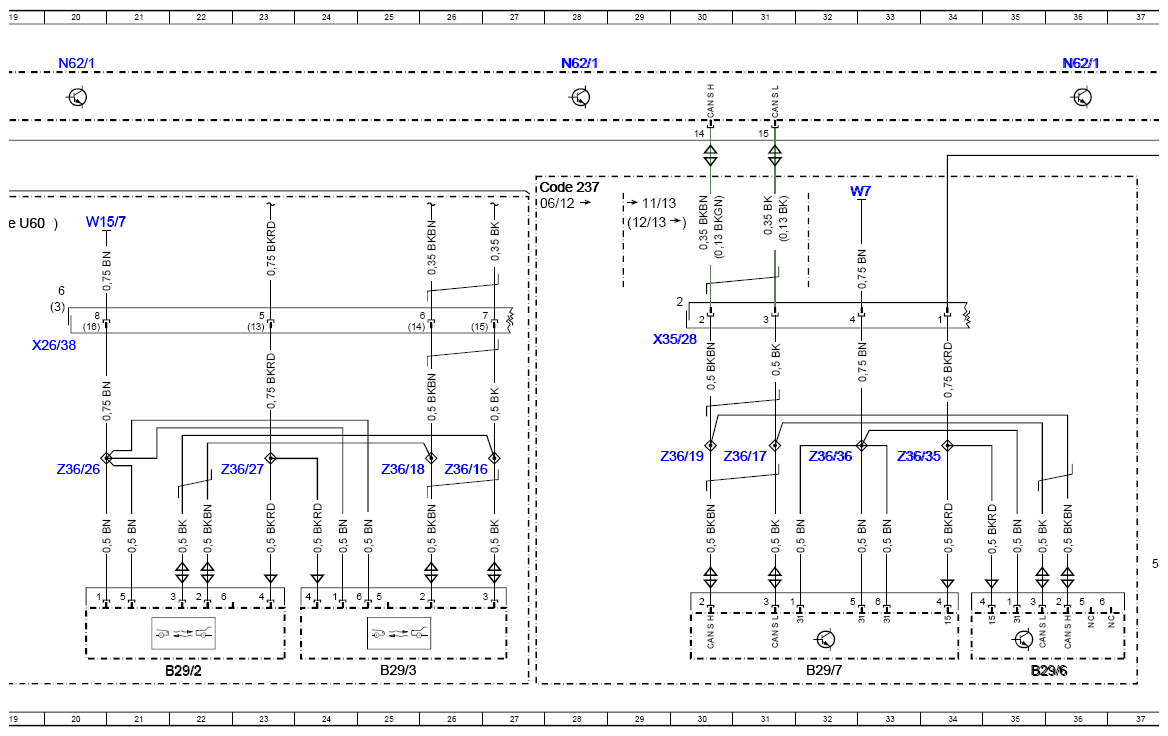

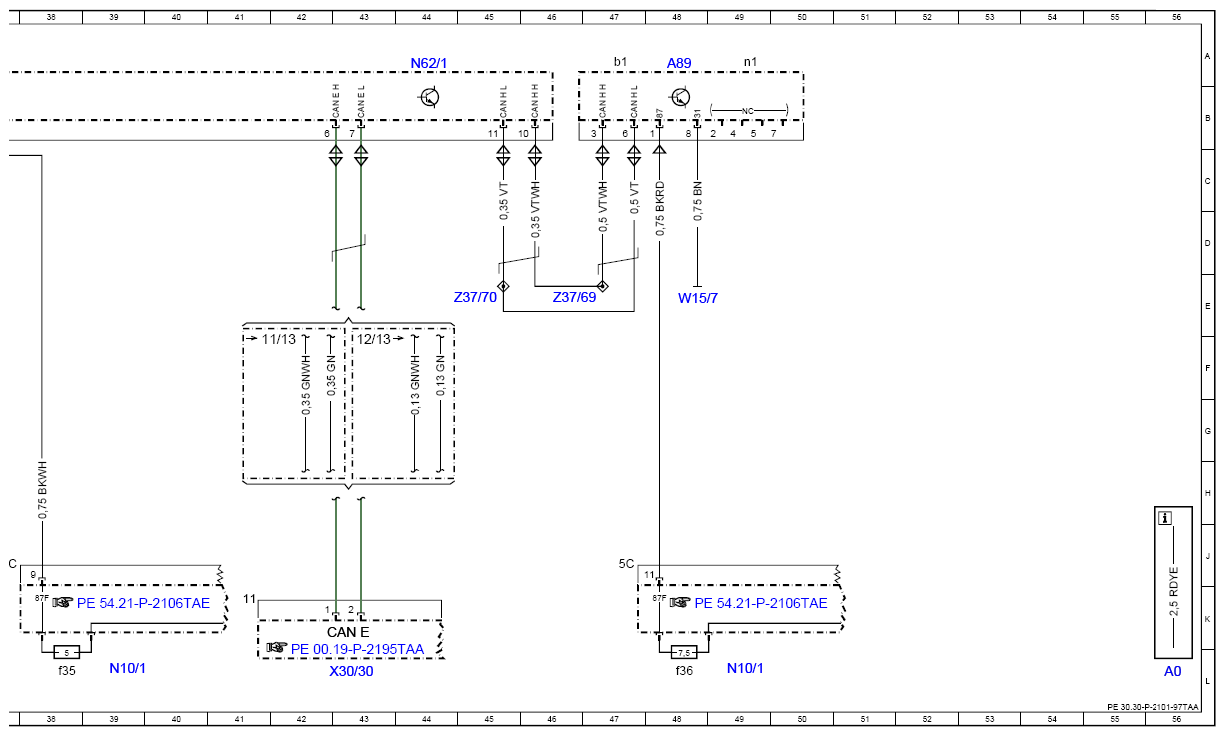

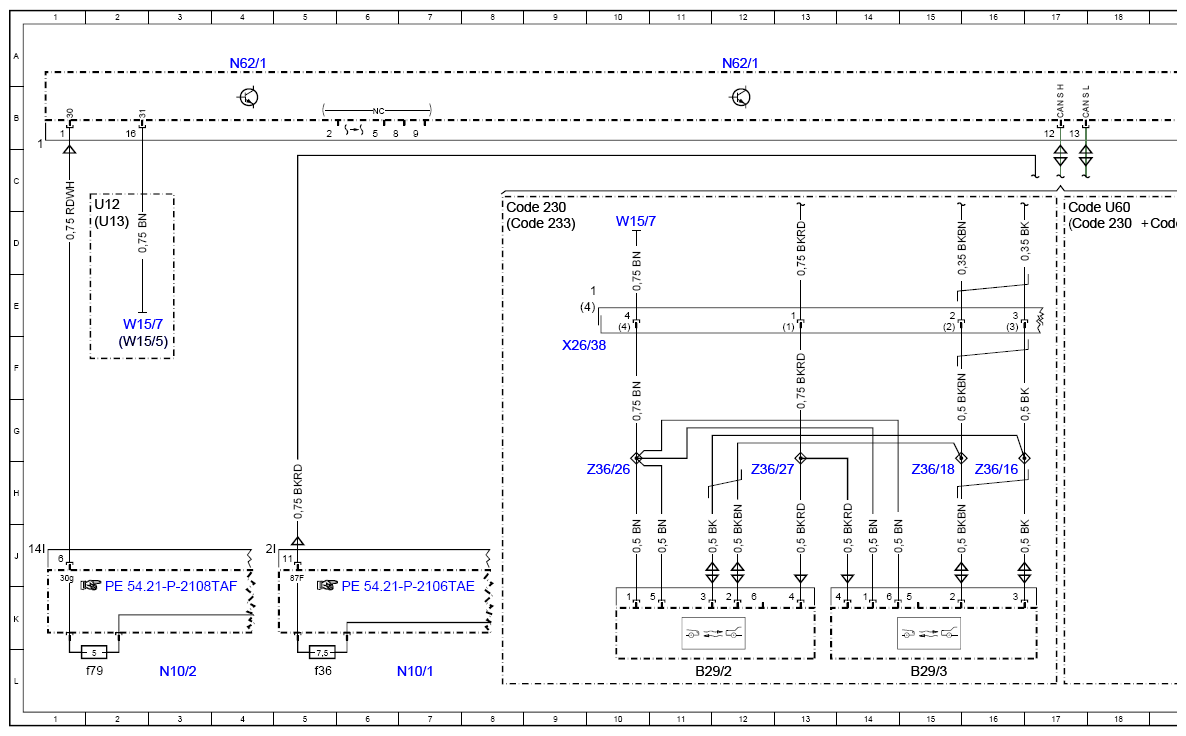

(Wiring Diagram For DISTRONIC (DTR) Control Unit - PE30.30-P-2101-97TAA)
Model 172.4 up to 5/31/15
with code 233 (DISTRONIC PLUS)
Control unit N62/1
Model 172.4 up to 5/31/15
with code 237 (Active Blind Spot Assist)
Control unit N62/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A89 | DISTRONIC electric controller unit | 48A |
| A89b1 | DISTRONIC radar sensor | 47A |
| A89n1 | DISTRONIC control unit | 49A |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 11L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 22L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 15L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 25L |
| B29/6 | Left rear bumper radar sensor | 35L |
| B29/7 | Right rear bumper radar sensor | 32L |
| CAN E | Chassis CAN | 43K |
| Code 230 | Exclusive parking assist | 8D |
| Code 230 | Exclusive parking assist | 17D |
| Code 233 | DISTRONIC PLUS | 8D |
| Code 237 | Active Blind Spot Assist | 27C |
| Code U60 | Pedestrian protection | 19D |
| Code U60 | Pedestrian protection | 17D |
| N10/1 | Front SAM control unit with fuse and relay module | 7L |
| N10/1 | Front SAM control unit with fuse and relay module | 39L |
| N10/1 | Front SAM control unit with fuse and relay module | 49L |
| N10/1f35 | Fuse 35 | 38L |
| N10/1f36 | Fuse 36 | 5L |
| N10/1f36 | Fuse 36 | 48L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f79 | Fuse 79 | 2L |
| N62/1 | Radar sensors control unit | 4A |
| N62/1 | Radar sensors control unit | 12A |
| N62/1 | Radar sensors control unit | 20A |
| N62/1 | Radar sensors control unit | 28A |
| N62/1 | Radar sensors control unit | 36A |
| N62/1 | Radar sensors control unit | 44A |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2D |
| W15/5 | Left front footwell ground point | 2F |
| W15/7 | Right front footwell ground point | 2E |
| W15/7 | Right front footwell ground point | 10D |
| W15/7 | Right front footwell ground point | 20D |
| W15/7 | Right front footwell ground point | 48E |
| W7 | Right wheelhouse trunk ground point | 33C |
| X26/38 | Front bumper and frame wiring harness electrical connector | 9F |
| X26/38 | Front bumper and frame wiring harness electrical connector | 20F |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 43L |
| X35/28 | Rear bumper parking system electrical connector | 30F |
| Z36/16 | Front sensor CAN connector sleeve | 16H |
| Z36/16 | Front sensor CAN connector sleeve | 26H |
| Z36/17 | Rear sensor CAN connector sleeve | 31G |
| Z36/18 | Front sensor CAN connector sleeve | 15H |
| Z36/18 | Front sensor CAN connector sleeve | 25H |
| Z36/19 | Rear sensor CAN connector sleeve | 30G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 10H |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 20H |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 12H |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 23H |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 34G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 32G |
| Z37/69 | Vehicle dynamics CAN (high) connector sleeve | 46E |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | 45E |
