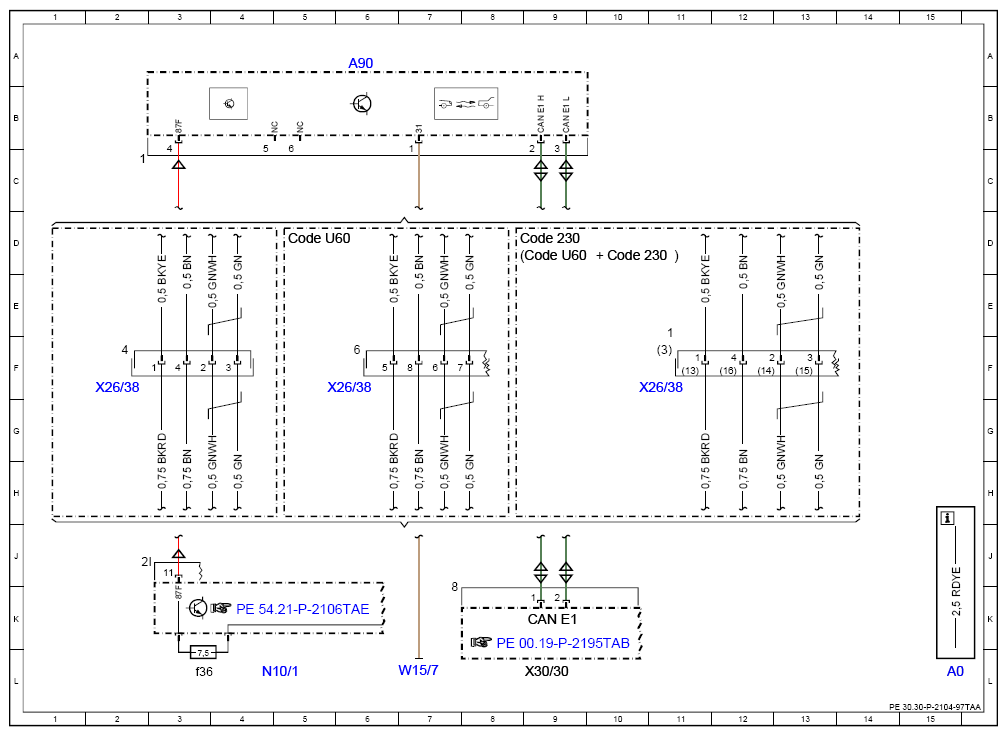

Wiring Diagram For Collision Prevention Assist Control Unit - PE30.30-P-2104-97TAA
Model 172.4 as of 3/1/16
with code 258 (COLLISION PREVENTION ASSIST)
Control unit A90
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 6A |
| CAN E1 | Chassis CAN 1 | 9K |
| Code 230 | Exclusive parking assist | 8D |
| Code 230 | Exclusive parking assist | 10D |
| Code U60 | Pedestrian protection | 9D |
| Code U60 | Pedestrian protection | 5D |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/1f36 | Fuse 36 | 3L |
| W15/7 | Right front footwell ground point | 7L |
| X26/38 | Front bumper and frame wiring harness electrical connector | 2F |
| X26/38 | Front bumper and frame wiring harness electrical connector | 6F |
| X26/38 | Front bumper and frame wiring harness electrical connector | 11F |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical | connector |
