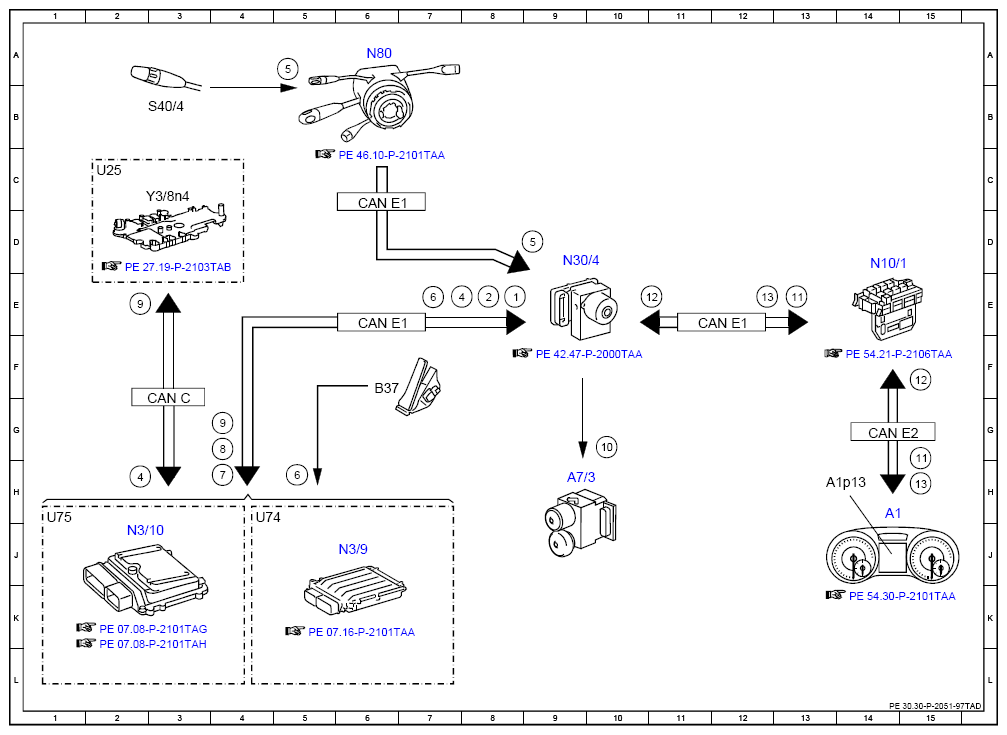

Electrical Function Schematic For Cruise Control (CC) - PE30.30-P-2051-97TAD
Model 172.4 as of model year 2017
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 8E |
| 10 | Service brake braking torque, actuation | 10G |
| 11 | Speed setting, status | 13E |
| 11 | Speed setting, status | 15H |
| 12 | Permanent limiter, status | 10E |
| 12 | Permanent limiter, status | 15F |
| 13 | Instrument cluster message, request | 12E |
| 13 | Instrument cluster message, request | 15H |
| 2 | Drivetrain operational, signal | 8E |
| 4 | Gear range, status | 7E |
| 4 | Gear range, status | 2H |
| 5 | CRUISE CONTROL lever, signal | 9D |
| 5 | CRUISE CONTROL lever, signal | 5A |
| 6 | Accelerator pedal sensor, signal | 5H |
| 6 | Accelerator pedal sensor, signal | 7E |
| 7 | Engine torque, reduce request | 4H |
| 8 | Engine torque, increase request | 4G |
| 9 | Engage targeted gear, request | 3E |
| 9 | Engage targeted gear, request | 4G |
| A1 | Instrument cluster | 14H |
| A1p13 | Multifunction display | 13H |
| A7/3 | Traction system hydraulic unit | 9H |
| B37 | Accelerator pedal sensor | 6F |
| CAN C | Drive train CAN | 3G |
| CAN E1 | Chassis CAN 1 | 12E |
| CAN E1 | Chassis CAN 1 | 6E |
| CAN E1 | Chassis CAN 1 | 6C |
| CAN E2 | Chassis CAN 2 | 14G |
| N10/1 | Front SAM control unit with fuse and relay module | 14D |
| N3/10 | ME-SFI [ME] control unit | 2J |
| N3/9 | CDI control unit | 6J |
| N30/4 | Electronic Stability Program control unit | 9D |
| N80 | Steering column module control unit | 6A |
| S40/4 | Cruise control lever | 3B |
| U25 | Valid for automatic transmission | 2C |
| U74 | Valid for diesel engines | 4H |
| U75 | Valid for gasoline engines | 1H |
| Y3/8n4 | Fully integrated transmission control control unit | 3C |
