DISTRONIC PLUS Electrical Function Schematic - PE30.30-P-2053-97TAB

Model 172.4 as of model year 2017

with code 239 (Active Distance Assist DISTRONIC)

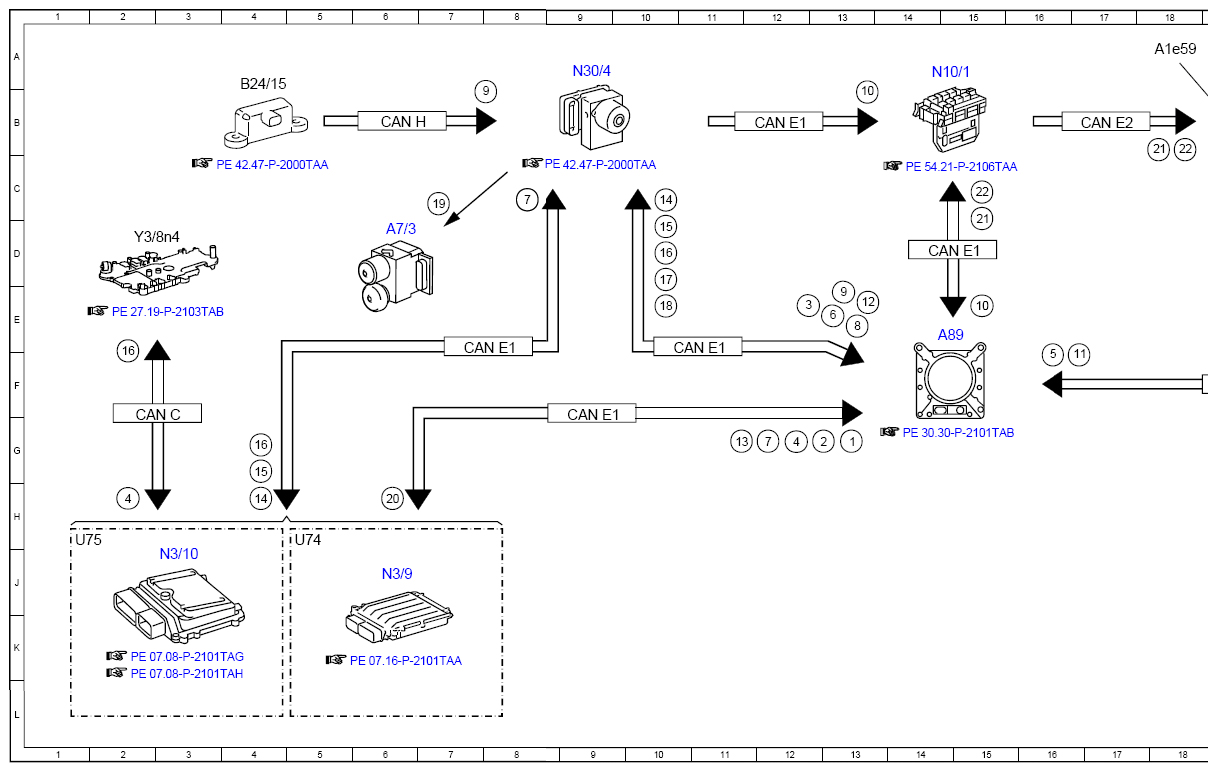

G13117344Courtesy of MERCEDES-BENZ USA

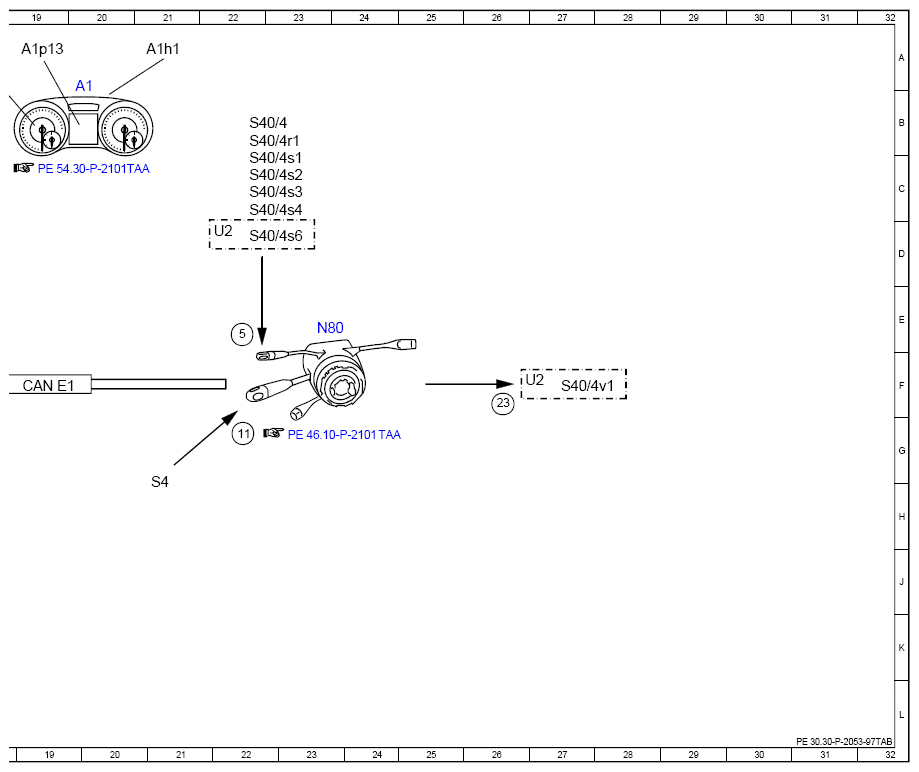

G13117345Courtesy of MERCEDES-BENZ USA
