Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000W
MODEL 172.4
On vehicles with code (600) Headlamp cleaning system and code (875) Heated windshield washer system

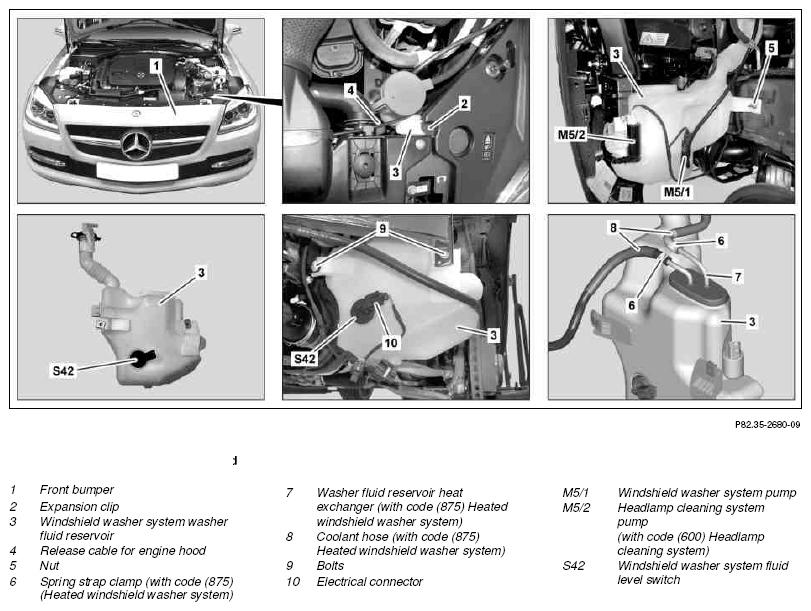

Fig 1: Identifying Washer Fluid Reservoir Remove/Install Components - Shown On Vehicles With Code (600)
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Unclip expansion clip (2) and unhook release cable for engine hood (4) from windshield washer system washer fluid reservoir (3) | Fig 4 | |
| 3.1 | Remove bottom engine compartment paneling at front | Engine 271, 276 | AR61.20-P-1105W |
| 3.2 | Remove bottom section of soundproofing at front | Engine 651 | AR94.30-P-5300W |
| 4 | Remove left fender liner in front fender | AR88.10-P-1300W | |
| 5 | Detach front bumper (1) in area of left front fender and push toward until the windshield washer system washer fluid reservoir (3) can be removed. | AR88.20-P-2000W | |
| 6 | Turn front wheels to left | ||
| 7 | Press windshield washer system pump (M5/1) out of windshield washer system washer fluid reservoir (3) and allow to hang down at side with lines and hoses connected | ||
| Figure | |||
| 8 | Press windshield washer system pump (M5/2) out of windshield washer system washer fluid reservoir (3) and allow to hang down at side with lines and hoses connected | For vehicles with code (600) Headlamp cleaning system | |
| Figure | |||
| 9 | Pinch off coolant hoses (8) | In vehicles with code (875) heated windshield washer system | |
| Fig 2 | |||
| 10 | Detach spring strap clamp (6) and remove coolant hoses (8) from connection fitting on windshield washer system heat exchanger (7) | In vehicles with code (875) heated windshield washer system Pliers for spring-loaded band-type clamps |
|
| 11 | Detach electrical connector (10) from windshield washer system fluid level switch (S42) | ||
| 12 | Remove bolts (9) | ||
| 13 | Unscrew nut (5) and remove windshield washer system washer fluid reservoir (3) downward | ||
| 14 | Install in the reverse order | ||
| 15 | Transfer windshield washer system fluid level switch (S42) | When replacing windshield washer system washer fluid reservoir (3). | |
| 16 | Transfer washer fluid reservoir heat exchanger (7) | In vehicles with code (875) heated windshield washer system When replacing windshield washer system washer fluid reservoir (3). |
|
| 17 | Fill windshield washer system washer fluid reservoir (3) | AP82.35-P-8210EW | |
| 18 | Fill with coolant, vent cooling system and check for signs of leaks | In vehicles with code (875) heated windshield washer system Engines 271, 651 |
|
| Engine 276 | AR20.00-P-1142W |
