Remove/install headlamp range adjustment front axle sensor - AR82.10-P-4083W
MODEL 172.4 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic)
| Remove/install | |||
| 1 | Lift vehicle on lifting platform. | AR00.60-P-1000V | |

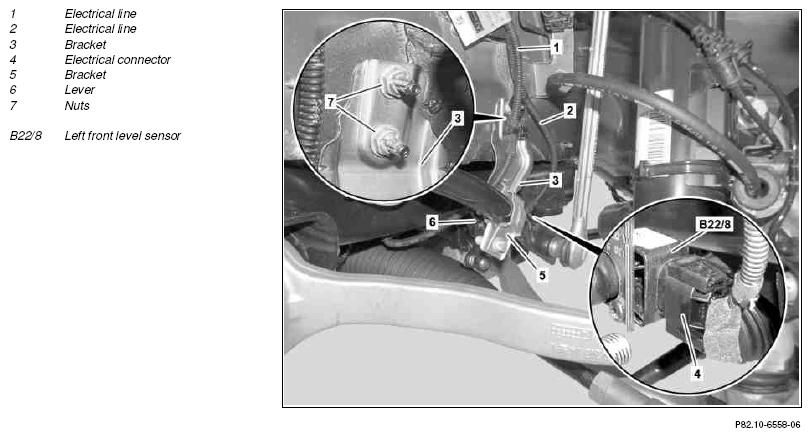

| 2 | Unclip electrical lines (1, 2) from bracket (3) | ||
| 3 | Disconnect electrical connector (4) from left front level sensor (B22/8) | ||
| 4 | Unclip lever (6) from ball head on bracket (5) | ||
| 5 | Unscrew nuts (7) from bracket (3) | ||
| 6 | Remove the left front level sensor (B22/8) | ||
| 7 | Install in the reverse order | ||
| 8 | Connect STAR DIAGNOSIS and adjust zero position of headlamps | AD00.00-P-2000-04A | |
| 9 | Check headlamp setting and correct if necessary | AP82.10-P-8260V |
