Remove/install bulbs of headlamp unit - AR82.10-P-1201W
MODEL 172.4 except CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (621) Intelligent Light System (left-hand traffic) except CODE (622) Intelligent Light System (right-hand traffic)

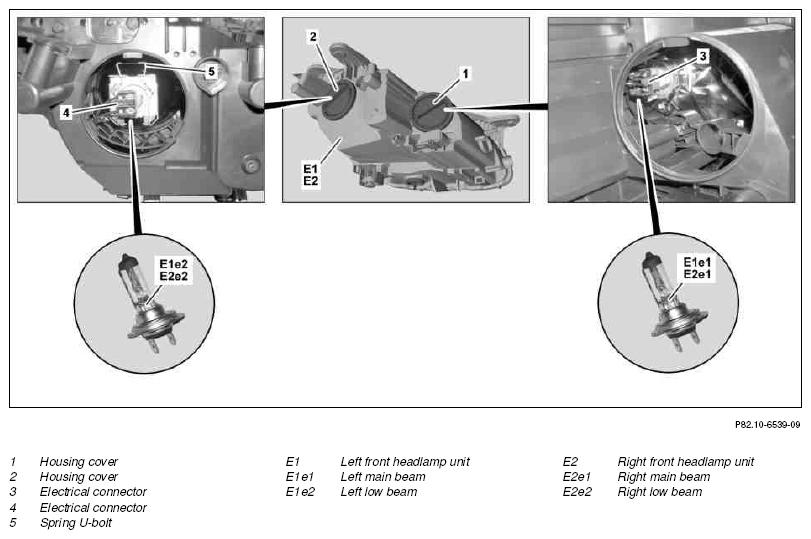

Shown on the left front lamp unit (E1)
| Picture item, etc. | Work instructions | ||
| Do not touch the glass bulb elements of the bulbs with fingers, but use a soft cloth free of oil and grease; otherwise the bulbs can be damaged by overheating during operation | |||
| Switch off the exterior lights prior to the bulb replacement in order to avoid a short circuit | |||
| Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | |||
| Open service flap in left or right fender liner | When removing left low beam (E1e2) or right low beam (E2e2). | ||
| Remove front bumper | When removing left front standing light and parking light (E1e3) or right front standing light and parking light (E2e3) | AR88.20-P-2000W | |
| E1e1, E2e1 | Left high beam, right high beam | Disconnect electrical connector (3) and remove left high beam (E1e1) or right high beam (E2e1). |
|
| E1e2, E2e2 | Left low beam, right low beam | ||

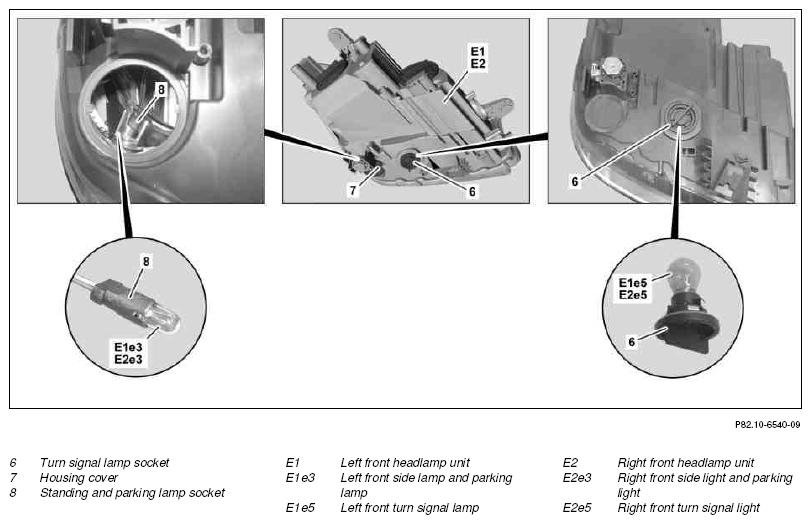

| E1e3, E2e3 | Left front standing light and parking light, right front standing light and parking light | Pull out standing light and parking light socket (8). Remove left front standing light and parking light (E1e3) or right front standing light and parking light (E2e3) from standing light and parking light socket (8). If no housing cover (7) is present: ↓ |
|
| Remove left front lamp unit (E1) or right front lamp unit (E2) | AR82.10-P-4730W | ||
| Create service opening at left front lamp unit (E1) or right front lamp unit (E2) | AR82.10-P-4730-01W | ||
| E1e5, E2e5 | Left front turn signal light, right front turn signal light | Remove left front turn signal light (E1e5) or right front turn signal light (E2e5) from turn signal light socket (6). |
