Remove/install antenna - AR82.70-P-8951W

MODEL 172.4 with CODE (359) TELEAID emergency call system with CODE (386) Comfort telephony with CODE (508) Navigation box preinstallation with CODE (509) Navigation box with CODE (512) COMAND APS with DVD changer with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (536) SIRIUS satellite radio

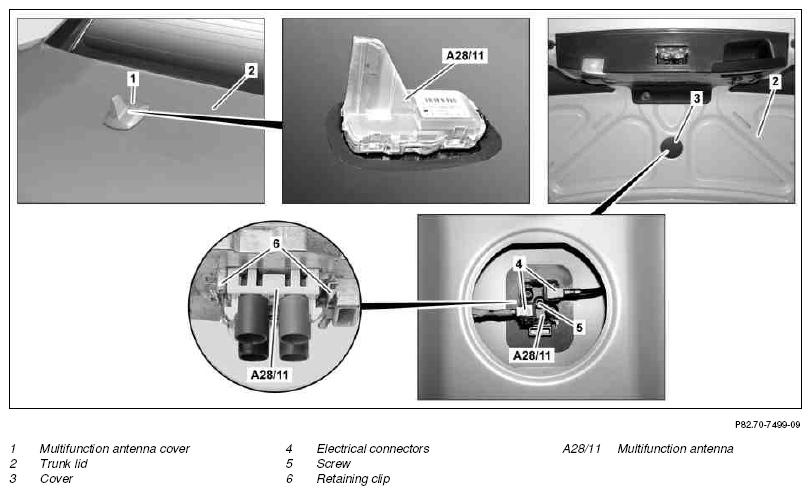

Fig 1: Identifying Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove multifunction antenna cover (1)		AR82.70-P-8952EW
2	Open trunk lid (2)
3	Remove cover (3)
4	Disconnect electrical connectors (4) from multifunction antenna (A28/11)	Number of electrical connectors (4) for each vehicle equipment option.
5	Remove screw/bolt (5) until retaining brackets (6) are released	Screw/bolt (5) remains at multifunction antenna (A28/11).
			*BA82.62-P-1002-01D
6	Remove multifunction antenna (A28/11) upward from trunk lid (2)
7	Install in the reverse order
