Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019W

MODEL 172.### (except 172.475) 1# without CODE 233 (DISTRONIC PLUS) except Mercedes-Benz InCar Internet, except Universal Media Interface

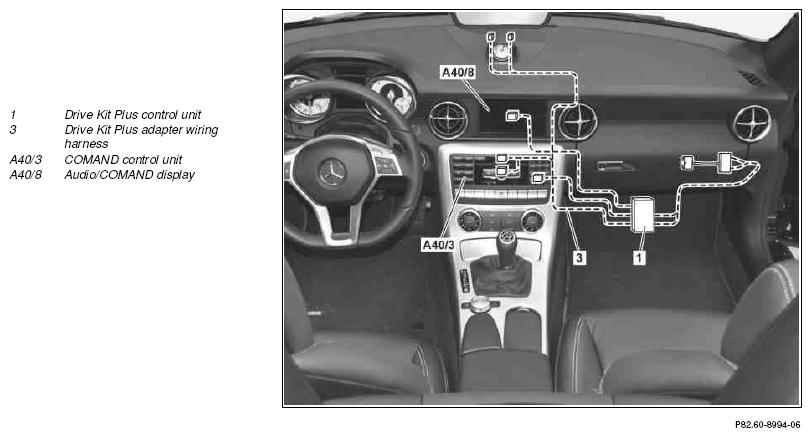

Routing diagram for Drive Kit Plus for the Apple iPhone 4, shown with CODE 527 (COMAND APS with single DVD drive (with navigation))

Fig 1: Identifying Drive Kit Plus Routing Diagram - For Apple iPhone 4

Courtesy of MERCEDES-BENZ USA

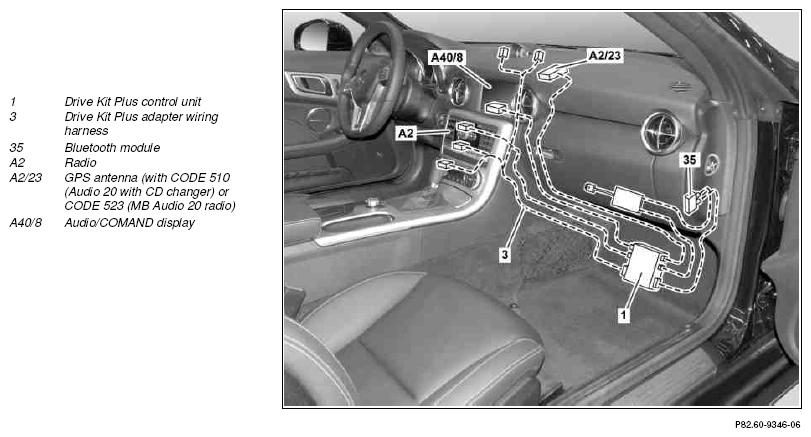

Routing diagram for Drive Kit Plus for the Apple iPhone 5, shown with CODE 510 (Audio 20 with CD changer)

Fig 2: Identifying Drive Kit Plus Routing Diagram - For Apple iPhone 5

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Fold back floor covering in passenger footwell
3	Remove footrest in front passenger footwell
4	Remove control unit bracket in the front passenger footwell and place to one side	The control unit bracket remains in the front passenger footwell. Do not disconnect electrical lines from control units. Unclip electrical wiring harnesses at the control unit bracket, if necessary.
5	Remove glove compartment
6	Remove audio component
			AR82.60-P-7502W
7	Remove Audio/COMAND display (A408)
			AR82.60-P-7722W
8	Detach center console	With CODE 518 (Media Interface)
			AR68.20-P-2000W
	Install
9	Prepare vehicle for retrofitting of Drive Kit Plus for the Apple iPhone		AZ82.60-P-0019-08W
10	Retrofit Drive Kit Plus adapter wiring harness (3)		AZ82.60-P-0019-01W
		Long wedge	Figure
11	Retrofit low voltage differential signal (LVDS) wiring harness		AZ82.60-P-0019-04W
12	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
			AZ82.60-P-0019-06W
13	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)
			AZ82.60-P-0019-05W
14	Retrofit Drive Kit Plus connector wiring harness		AZ82.60-P-0019-02W
		Clarify with the customer whether the iPhone cradle is to be installed.
15	Retrofit Bluetooth module (35)	When retrofitting the Drive Kit Plus for the Apple iPhone 5.
			AZ82.60-P-0019-07W
16	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0019-03W
17	Install remaining parts
	Update Vehicle Documentation (VeDoc)
18	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019W " under field organization texts to DG 68 and DG 82.
19	Enter special equipment into the vehicle data card online - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
20	Perform software update for radio (A2)	MODEL 172 up to 31.05.12 up to model year 2013 with CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
21	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)	MODEL 172 as of 01.12.13 as of model year 2014
			AD00.00-P-2000-04A
22	Carry out adaptation and redocumentation of the "Drive Kit Plus" control unit	Only with "Car-to-X" XENTRY: "Drive Kit Plus" control unit > Adaptation > Initial startup
23	Perform variant coding with XENTRY using the software calibration number (SCN)	MODEL 172 as of 01.12.13 as of model year 2014 Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
24	Disconnect diagnostic system
			AD00.00-P-2000-04A
25	Install software onto USB stick and flash to Drive Kit Plus control unit via Apple iPhone® update adapter	For instructions see ODUS: Service and Downloads > Further Information > Accessories > Telematics > Drive Kit Plus.
	Check
26	Perform function check of Drive Kit Plus for Apple iPhone	See Owner's Manual.

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
