Overview of exterior lights system components - GF82.10-P-9998RDM
MODEL 172.4 as of model year 2017

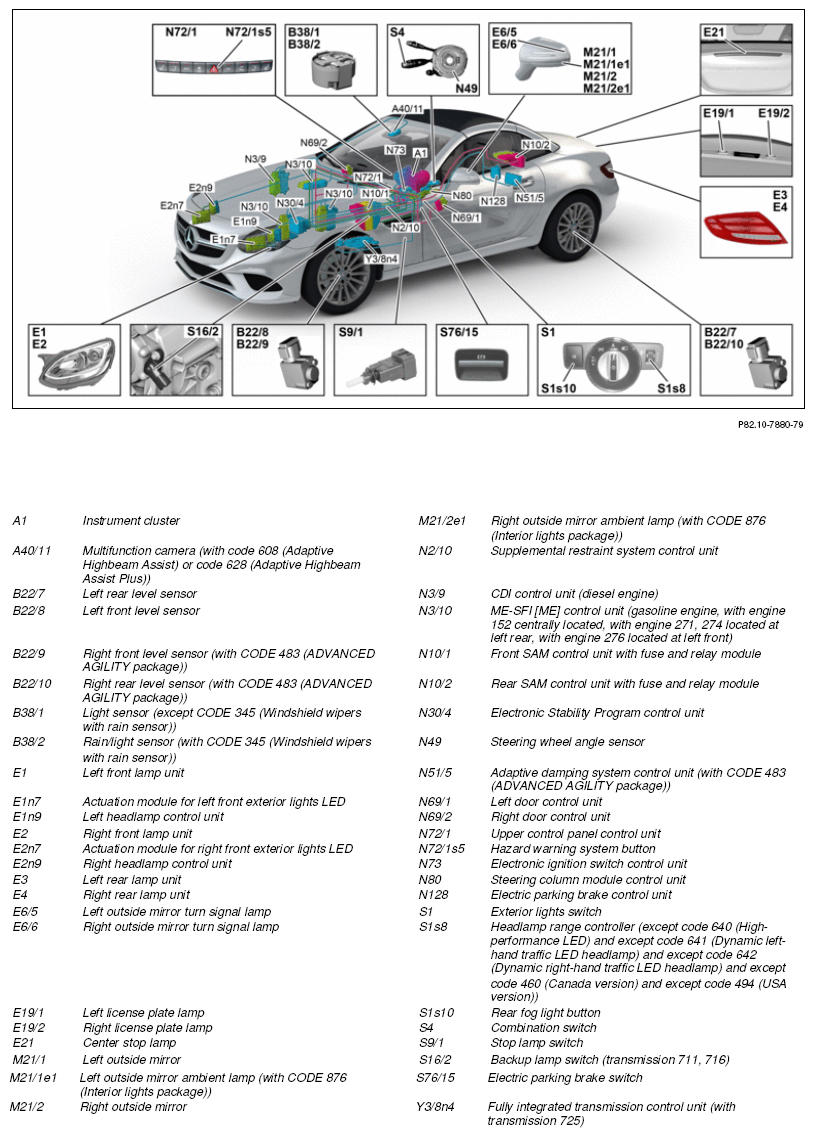

Shown on model 172.4

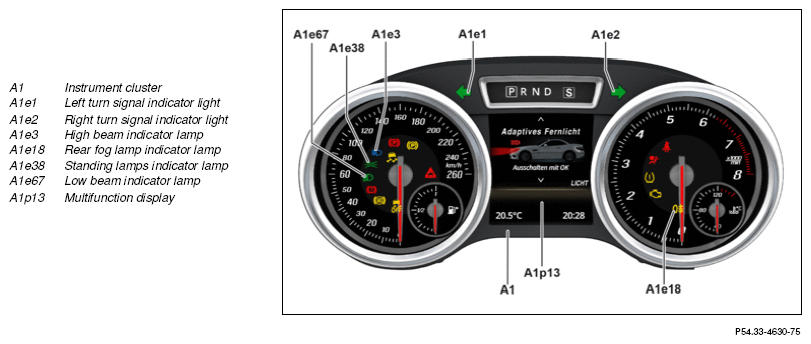

Detailed view of displays in instrument cluster
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

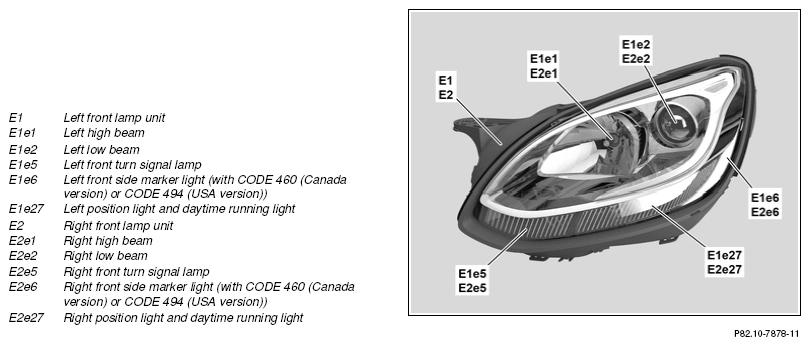

Detailed view of front lamp unit in halogen version (except code 640 (High-performance LED) and except code 641 (Dynamic left-hand traffic LED headlamp) and except code 642 (Dynamic right-hand traffic LED headlamp)), shown with code 494 (USA version)
The following components in the front lamp units are not shown here:
- Left headlamp range adjustment actuator motor (E1m1)
- Right headlamp range adjustment actuator motor (E2m1)

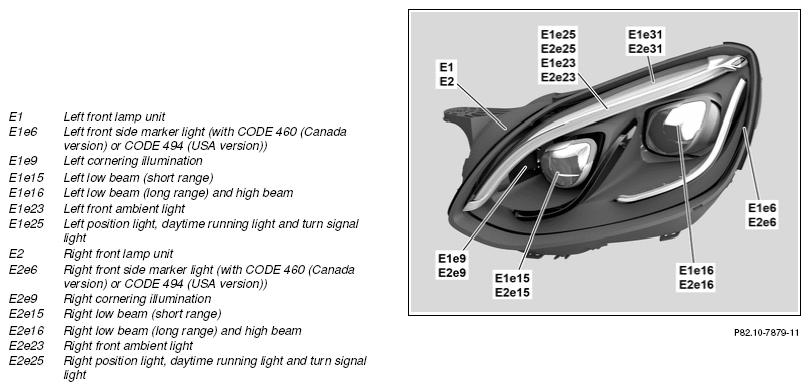

Detailed view of front lamp unit in full LED version (with code 640 (High-performance LED) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp)), shown with code 494 (USA version)
The following components in the front lamp units are not shown here:
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Left front lamp unit fan motor (E1m4)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)
- Right front lamp unit fan motor (E2m4)

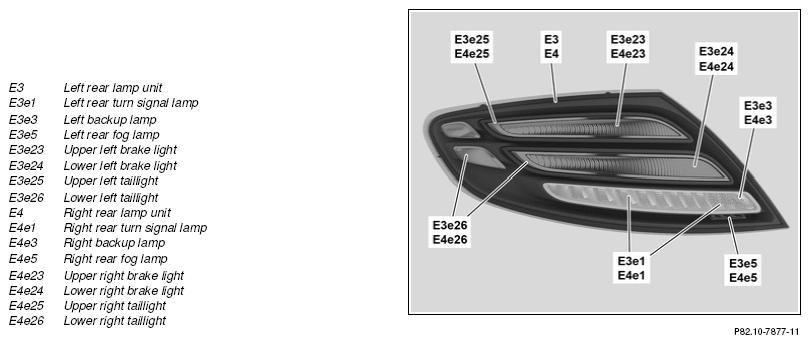

Detailed view of rear lamp unit, shown with code 494 (USA version)
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for multifunction camera | Model 172.4 as of model year 2017 with code 608 (Adaptive Highbeam Assist) Model 172.4 as of model year 2017 with code 628 (Adaptive Highbeam Assist Plus) A40/11 |
GF54.21-P-3300RD | |
| Actuation module, LED exterior lighting, front, component description | Model 172.4 as of model year 2017 with code 640 (High-performance LED) Model 172.4 as of model year 2017 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 172.4 as of model year 2017 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7 |
GF82.10-P-2160RDM | |
| Headlamp control unit, component description | Model 172.4 as of model year 2017 with code 640 (High-performance LED) Model 172.4 as of model year 2017 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 172.4 as of model year 2017 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RDM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 as of model year 2017 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 274.9 as of model year 2017 N3/10 |
GF07.61-P-6000MRE | |
| Model 172.4 with engine 276.8 as of model year 2017 N3/10 |
GF07.61-P-6000MNC | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119RDA | |
| Component description for adaptive damping system control unit | Model 172.4 as of model year 2017 with code 483 (ADVANCED AGILITY package) N51/5 |
GF32.32-P-1010RDA | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RDA | |
| Component description for fully integrated transmission control unit | Model 172 with transmission 725.0 as of model year 2017 Y3/8n4 |
GF27.60-P-5165ANH | |
| Table of contents for function description of exterior lights | GF82.10-P-0999RDM |
