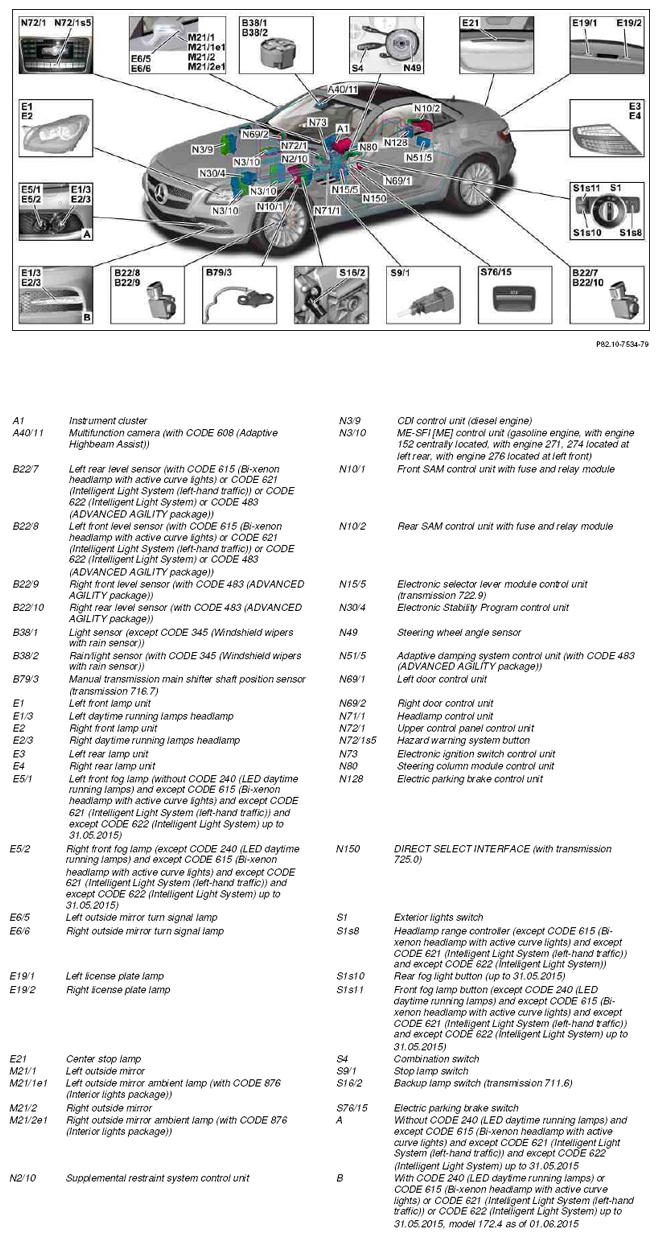

Overview of exterior lights system components - GF82.10-P-9998RD
MODEL 172.4

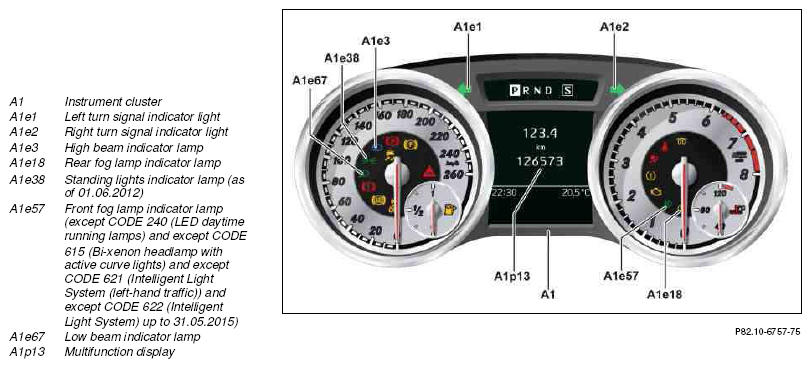

Displays in instrument cluster (A1) (except CODE 442 (Comfort multifunction steering wheel))
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

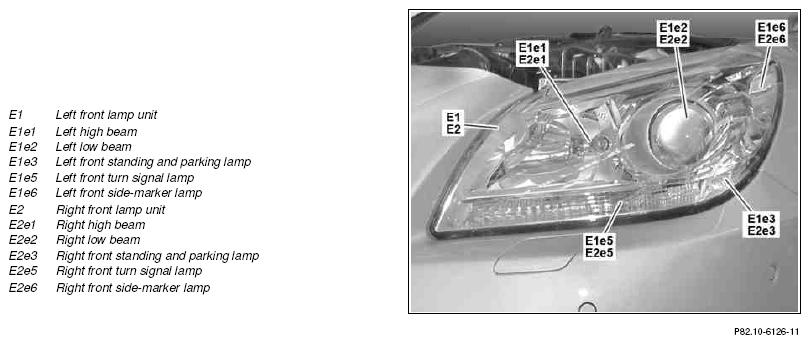

Halogen lamp unit (except CODE 615 (Bi-xenon headlamp with active curve lights) and except CODE 621 (Intelligent Light System (left-hand traffic)) and except CODE 622 (Intelligent Light System))
The following components in the front lamp units are not shown here:
- Left headlamp range adjustment actuator motor (E1m1)
- Right headlamp range adjustment actuator motor (E2m1)

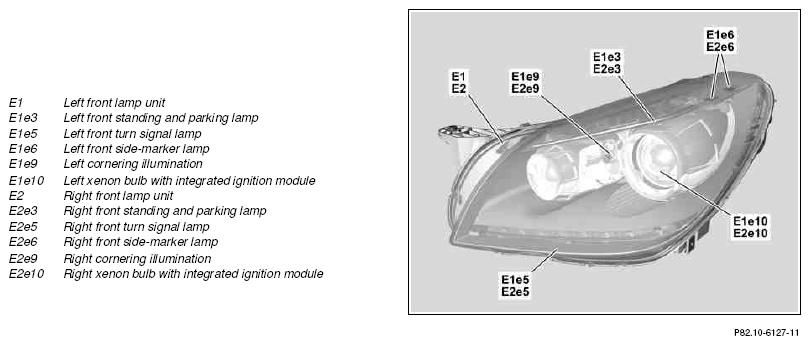

Xenon lamp unit (with CODE 615 (Bi-xenon headlamp with active curve lights) or CODE 621 (Intelligent Light System (left-hand traffic)) or CODE 622 (Intelligent Light System))
The following components in the front lamp units are not shown here:
- Left high beam solenoid (E1l1) (up to 31.05.2012)
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3) (as of 01.06.2012)
- Right high beam solenoid (E2l1) (up to 31.05.2012)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3) (as of 01.06.2012)
- Left xenon light power supply module (E1n4)
- Right xenon light power supply module (E2n4)

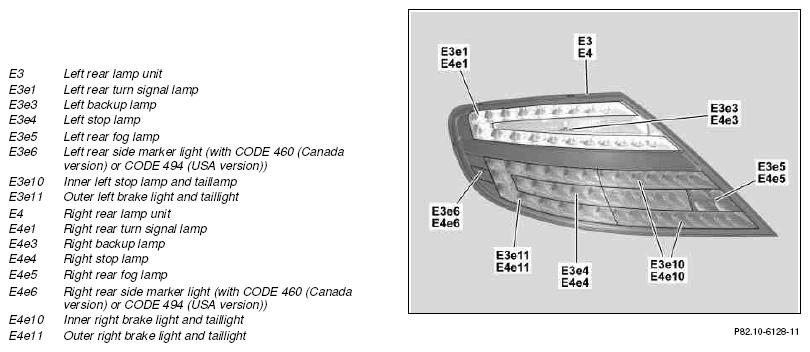

| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for multifunction camera | MODEL 172.4 with CODE 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300RD | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | MODEL 172.4 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | MODEL 172.4 with ENGINE 152.9 N3/10 |
GF07.61-P-6000MMI | |
| MODEL 172.4 with ENGINE 271.861 N3/10 |
GF07.61-P-6000MGA | ||
| MODEL 172.4 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRE | ||
| MODEL 172.4 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | MODEL 172 with TRANSMISSION 722.9 N15/5 |
GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119RD | |
| Component description for adaptive damping system control unit | MODEL 172.4 with CODE 483 (ADVANCED AGILITY package) N51/5 |
GF32.32-P-1010RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Headlamp control unit, component description | MODEL 172.4 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 172.4 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 172.4 with CODE 622 (Intelligent Light System) N71/1 |
GF82.10-P-2020RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RD | |
| DIRECT SELECT interface, component description | MODEL 172.4 with TRANSMISSION 725.0 N150 |
GF27.19-P-1300ANH | |
| Table of contents for function description of exterior lights | GF82.10-P-0999RD |
