Remove/install tubular frame "locked" limit switch - AR77.39-P-3721RK

MODEL 231

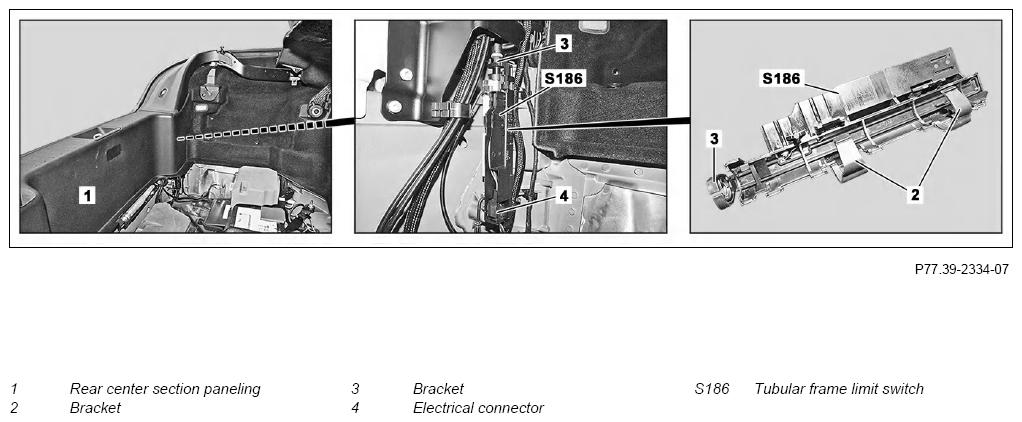

Fig 1: Tubular Frame "Locked" Limit Switch Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

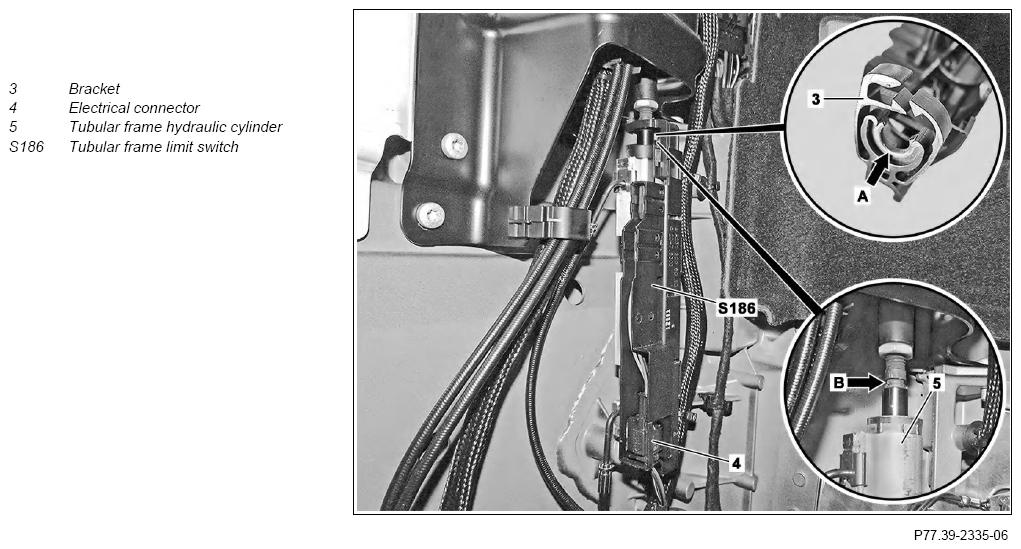

Fig 2: Tubular Frame "Locked" Limit Switch Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove rear center section paneling (1)		AR68.30-P-4785RK
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with code (889) KEYLESS-GO.
3	Open brackets (2)
4	Open bracket (3)
5	Remove tubular frame limit switch (S186) from tubular frame hydraulic cylinder (5)	The notch (arrow A) on the bracket (3) should be located in the groove (arrow B) on the tubular frame hydraulic cylinder (5).
6	Disconnect electrical connector (4) and remove tubular frame limit switch (S186)
7	Install in the reverse order
