Remove/install side flap for Vario roof - AR77.30-P-6370RK

MODEL 231

Shown on left side of vehicle

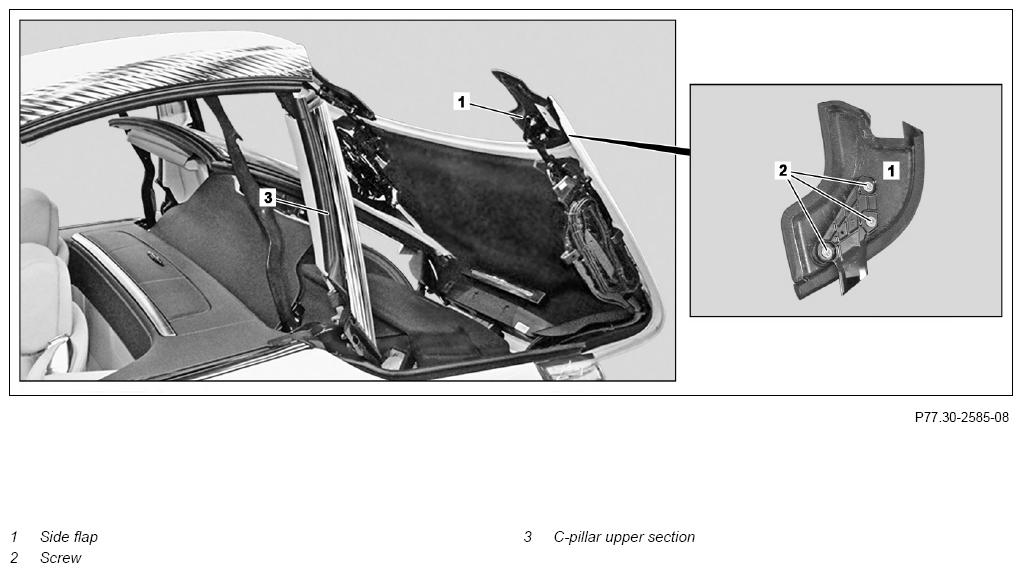

Fig 1: Side Flap For Vario Roof Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	AS77.50-Z-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove
1	Actuate Vario roof actuation switch (S84s1) until the side flaps (1) are folded out	The motion of the Vario roof must be terminated, when the C-pillar top sections (3) are upright and the side flaps (1) are folded out. Leave ignition switched on.
2	Unscrew bolts (2) and remove side flaps (1)
	Install
3	Install side flaps (1)	Tighten screws (2) finger-tight only.
4	Adjust side flaps (1)		AR77.30-P-6373RK
