Remove/install side flap drive for Vario roof - AR77.30-P-6374RK
MODEL 231
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

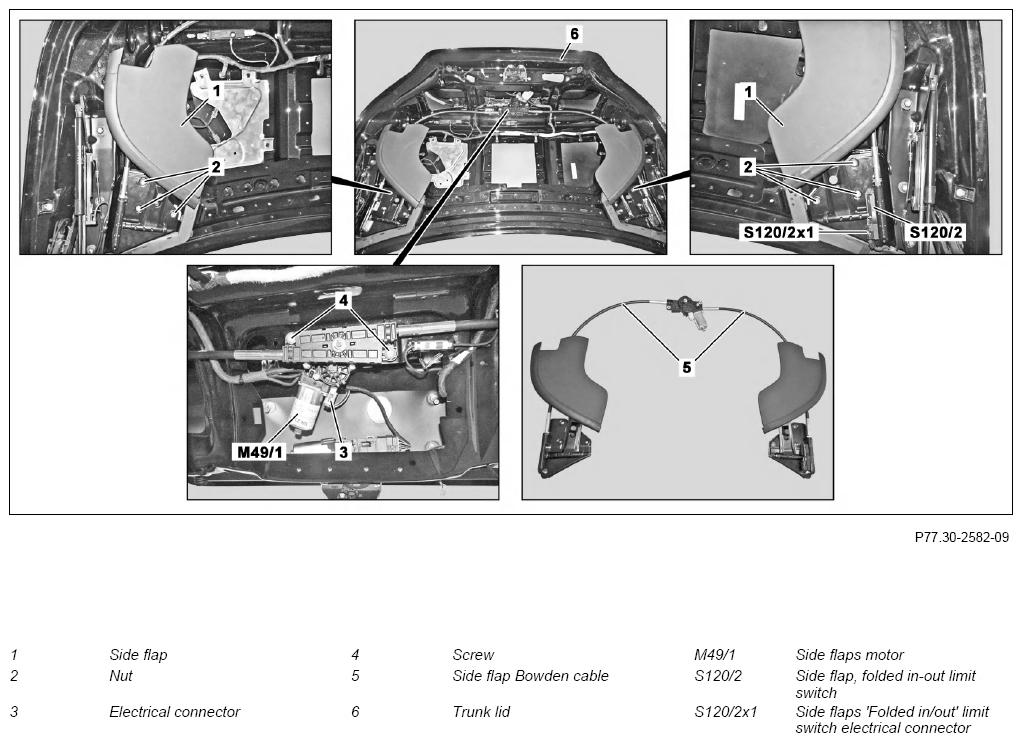

| 1 | Remove paneling from trunk lid (6) | AR68.30-P-8150RK | |
| 2 | Close trunk lid (6) | ||
| 3 | Actuate Vario roof actuation switch (S84s1) until the side flaps (1) are folded in | ||
| 4 | Open trunk lid (6) | ||
| 5 | Remove side flap Bowden cables (5) from trunk lid (6) | ||
| 6 | Disconnect electrical connector (3) from side flap motor (M49/1) | ||
| 7 | Disconnect electrical connector from side flap fold-in/out limit switch (S120/2x1) | ||
| 8 | Remove bolts (4) | ||
| 9 | Unscrew nuts (2) and remove side flap drive from trunk lid (6) | ||
| 10 | Transfer side flap fold-in/out limit switch (S120/2) | Only when replacing side flap drive. | |
| 11 | Install in the reverse order |
