Remove/install air pump - AR14.30-P-7251RKC
ENGINE 279 in MODEL 231
| Remove/install | |||
|---|---|---|---|
| 1 | Remove right air filter housing | ENGINE 279 in MODEL 231 with CODE 460 (Canada version) with CODE 494 (US version) |
AR09.10-P-1150MUC |
| ENGINE 279 in MODEL 231 without CODE 460 (Canada version) without CODE 494 (US version) |
AR09.10-P-1150RKC | ||

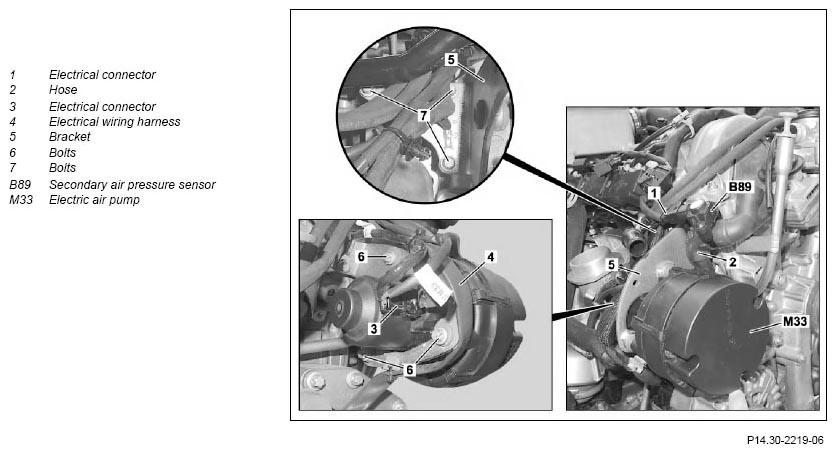

| 2 | Disconnect electrical connection (1) from secondary air pressure sensor (B89) | ||
| 3 | Disconnect electrical connection (3) from electric air pump (M33) | ||
| 4 | Remove hose (2) from electric air pump (M33) | ||
| 5 | Remove screw/bolts (6) | *BA14.30-P-1001-01F | |
| 6 | Take out electric air pump (M33) to the front | ||
| 7 | Install in the reverse order |
AIR PUMP
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA14.30-P-1001-01F | Screw/bolt, air pump to bracket | Nm | 8 |
