Oil line removal and installation - AR18.30-P-6850RKC
ENGINE 279 in MODEL 231
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove engine with front axle carrier | AR01.10-P-2500RKC | |
| 2 | Mount engine onto assembly stand | ||
| 3 | Remove engine from front axle carrier | AR01.10-P-2510RKC | |
| 4 | Remove charge air pipe on the left or right | AR09.41-P-8620RKC | |

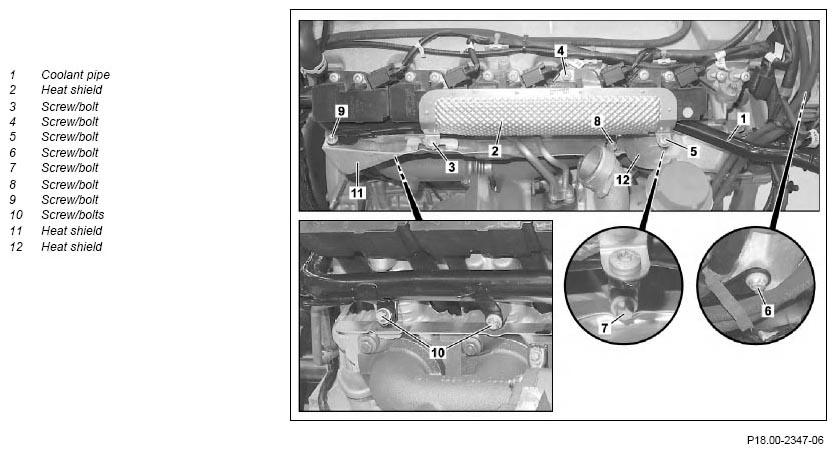

| 5 | Remove heat shield (2) on the left or right | ||
| 6 | Unfasten coolant pipe (1) on the left or right | *BA20.10-P-1009-01H | |
| 7 | Remove heat shields (11, 12) on the left or right | ||
| 8 | Unfasten coolant line at the top left (13) | *BA09.40-P-1007-01V | |

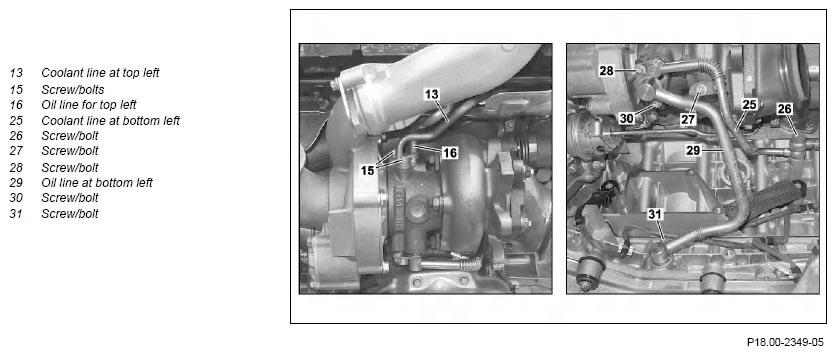

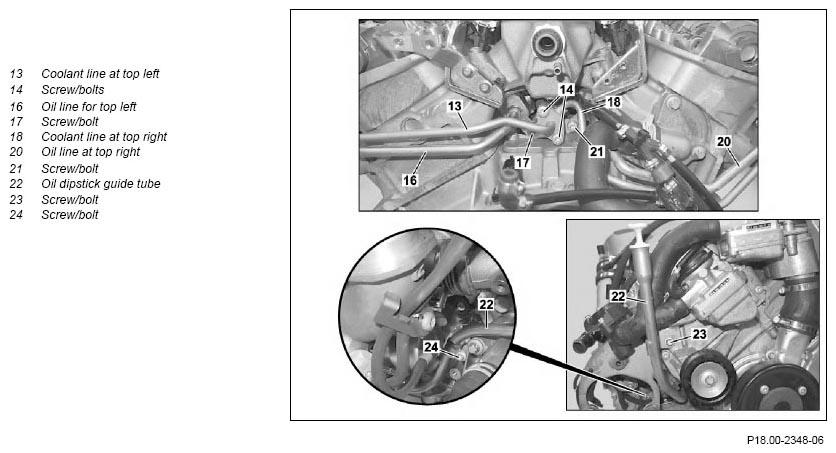

| 9 | Remove oil line at top left (16) together with the coolant line at top left (13) | When removing the oil line on the top left (16) |
|
| *BA09.40-P-1004-01V | |||
| *BA09.40-P-1005-01V | |||
| Figure | |||
| 10 | Unfasten coolant line at the top right (18) | When removing the oil line on the top right (20) | |

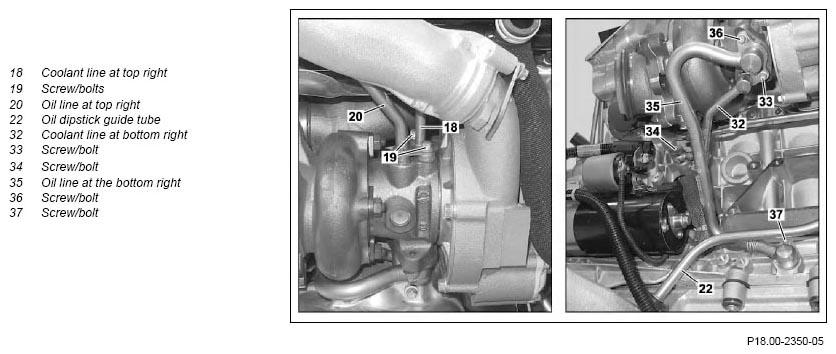

| 11 | Remove oil line at top right (20) together with the coolant line at top right (18) | When removing the oil line on the top right (20) |
|
| *BA09.40-P-1004-01V | |||
| *BA09.40-P-1005-01V | |||
| Figure | |||
| 12 | Remove engine support on the left or right | AR22.10-P-1260RKC | |
| 13 | Release oil dipstick guide tube (22) | When removing the oil line on the bottom right (35) |
|
| *BA01.45-P-1004-01I | |||
| *BA01.45-P-1005-01I | |||
| 14 | Remove coolant line at bottom left (25) | When removing the oil line on the bottom left (29) |
|
| *BA09.40-P-1002-01V | |||
| *BA09.40-P-1006-01V | |||
| 15 | Remove oil line at bottom left (29) | When removing the oil line on the bottom left (29) |
|
| *BA09.40-P-1002-01V | |||
| *BA09.40-P-1003-01V | |||
| Figure | |||
| 16 | Remove coolant line at bottom right (32) | When removing the oil line on the bottom right (35) |
|
| *BA09.40-P-1002-01V | |||
| *BA09.40-P-1006-01V | |||
| 17 | Remove oil line at bottom right (35) | When removing the oil line on the bottom right (35) |
|
| *BA09.40-P-1002-01V | |||
| *BA09.40-P-1003-01V | |||
| Figure | |||
| 18 | Install in the reverse order | ||
| Check | |||
| 19 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101BA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 20 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
OIL PAN
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA01.45-P-1004-01I | Screw/bolt, guide tube to alternator carrier | Nm | 9 |
OIL PAN
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA01.45-P-1005-01I | Screw/bolt, guide tube to front cover | Nm | 14 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | ||
|---|---|---|---|---|
| BA09.40-P-1002-01V | Bolt, oil return line and coolant return line to turbocharger | M6 | Nm | 8 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA09.40-P-1003-01V | Bolt, oil return line to crankcase | Nm | 8 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA09.40-P-1004-01V | Screw/bolt, oil feed and coolant line pipe to turbocharger | Nm | 8 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA09.40-P-1005-01V | Screw/bolt, oil feed to bottom half of crankcase | Nm | 8 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA09.40-P-1006-01V | Banjo bolt, coolant return line to crankcase | Nm | 25 |
TURBOCHARGER
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA09.40-P-1007-01V | Screw/bolt, coolant line to bottom half of crankcase | Nm | 8 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 279 | |
|---|---|---|---|
| BA20.10-P-1009-01H | Screw/bolt, coolant pipe to cylinder head cover/cylinder head/heat shield | Nm | 9 |
