Remove/install trim piece on Vario roof - AR77.30-P-1191RK
MODEL 231.4
Shown on trim strip for left C-pillar
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Move Vario roof to assembly position | ||
| 2 | Press trim strip (1) downward toward outside (arrow A) with clip remover (4) and remove from C-pillar downward toward rear (arrow B) | Carefully remove trim piece (1). C-pillar (2) may be damaged. |

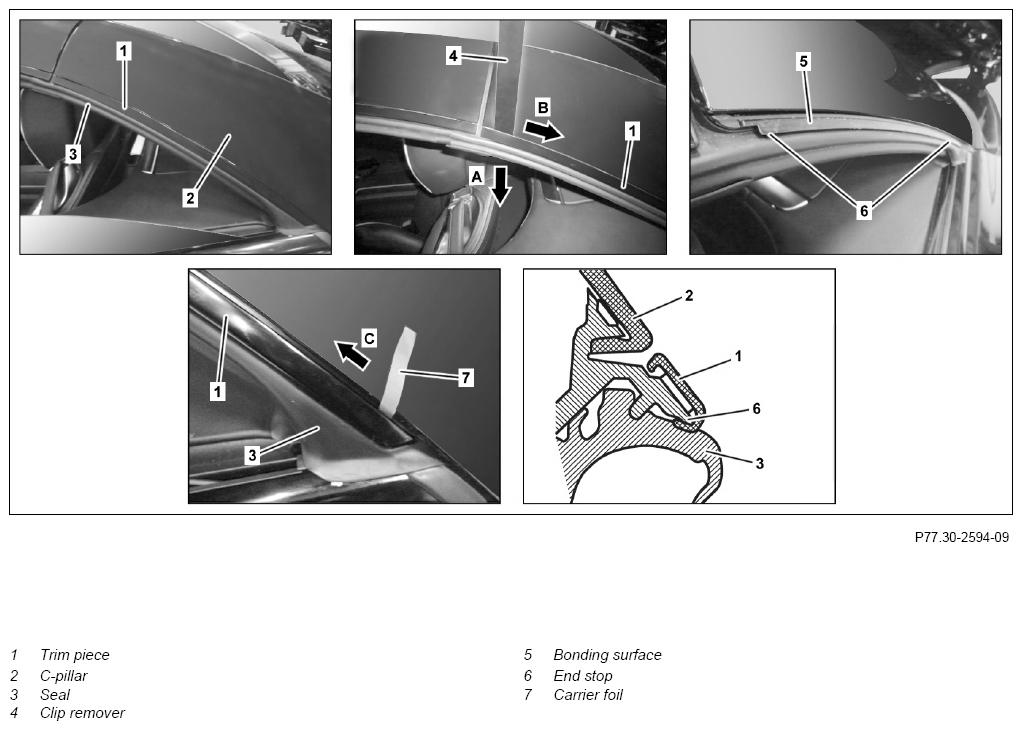

Fig 3 |
| 3 | Prepare bonding surface (5) for trim strip removal | AR77.30-P-1191-01RK | |
Cleaner |
*BR00.45-Z-1025-04A | ||
| Primer | *BR00.45-Z-1171-02A | ||
| Install | |||
| 4 | Lay end piece of carrier foil (7) upward | ||
| 5 | Align trim strip (1) on C-pillar | ||
| 6 | Remove carrier foil (7) toward front (arrow C) and simultaneously press on trim strip (1) | Press trim strip (1) not too tightly to carrier foil (7) and remove carrier foil (7) carefully. Otherwise the carrier foil (7) can tear below the trim piece (1) and a new trim piece (1) must be installed. |
|
| 7 | Press on trim strip (1) with roller over entire length | Position roller flat on trim strip (1) below gap to C-pillar (2) and carefully press on trim strip (1). Otherwise the trim piece (1) can be damaged. |
Fig 2 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1171-02A | Primer | A 005 989 59 71 |
