Remove/install trim at rear of Vario roof - AR77.30-P-1185RK

MODEL 231

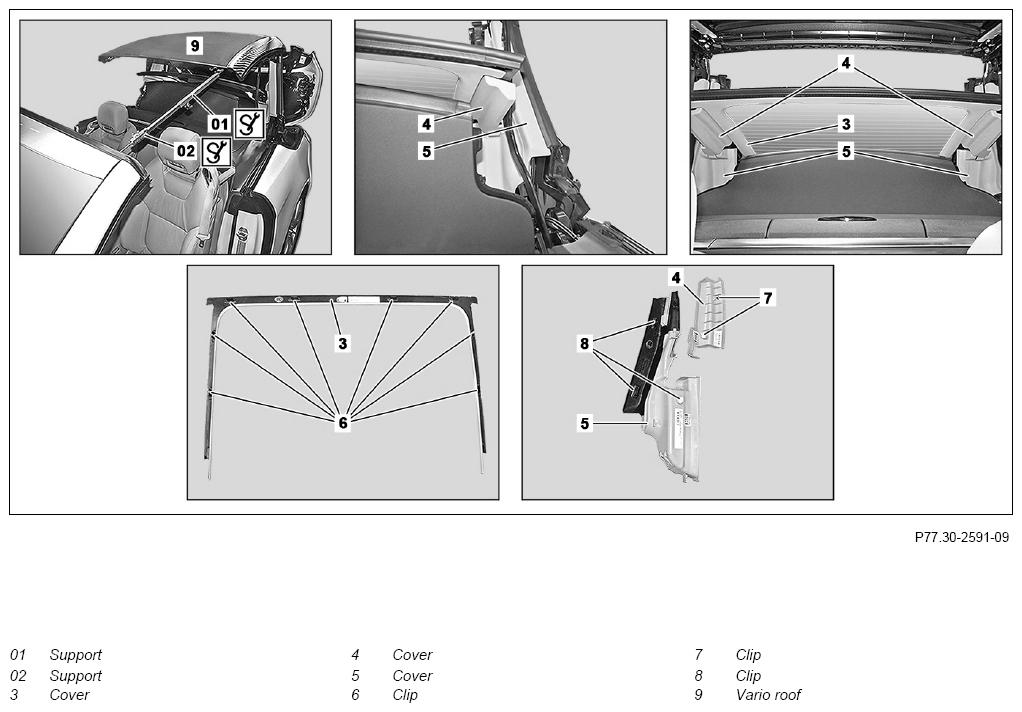

Fig 1: Trim At Rear Of Vario Roof Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	AS77.50-Z-0001-01A
	Remove/install
1	Move Vario roof (9) into intermediate position with the roof actuation switch (S84s1)	Position of C-pillar top sections vertical. Leave ignition switched on. The Vario roof (9) remains in this position for approx. 7 min in the stop mode. After approx. 7 min, the Vario roof (9) automatically lowers into the trunk. The stop mode can be increased by momentarily actuating the Vario roof actuation switch (S84s1) for another 7 minutes.
2	Secure Vario roof (9) with supports (01, 02)	Support	Fig 3
		Support	Fig 4
3	Switch off ignition
4	Remove paneling (4) on left and right	Unclip paneling (4) from clips (7). Mounting wedge	Fig 2
5	Remove paneling (5) on left and right from C-pillar top section	Unclip paneling (5) from clips (8). Mounting wedge	Fig 2
6	Remove paneling (3) from rear window	Unclip paneling (3) from clips (6). Mounting wedge	Fig 2
7	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Support (231 589 02 63 00)

Courtesy of MERCEDES-BENZ USA
