Remove/install front Vario roof lock - AR77.33-P-3487W
MODEL 172.4, 231
Shown on left C-pillar lock on model 172.4
| Removing | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by touching parts conducting high voltages | Do not come into contact with parts that are under high voltage. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS77.00-Z-0001-01A | |
| Notes on MAGIC SKY CONTROL | AH77.00-P-0001-01A | ||

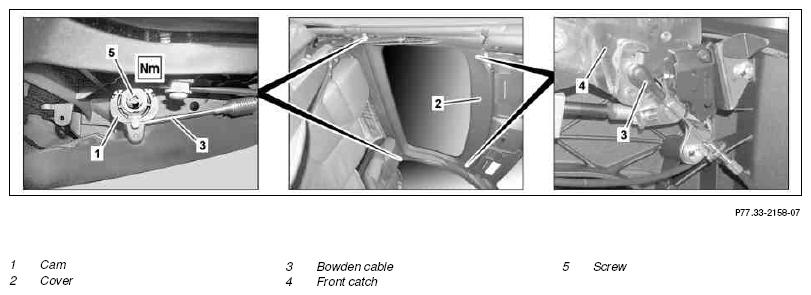

| 1 | Remove paneling (2) from Vario roof front section | ||
| 2 | Unhook left or right Bowden cable (3) from left lock (4) | ||
| 3 | Remove bolt (5) | ||
| 4 | Unhook Bowden cable (3) from eccentric (1) and remove eccentric (1) | ||
| Install | |||
| 5 | Position left and right eccentric (1) on Vario roof front section and screw in bolt (5) to stop | ||
| 6 | Slightly push left or right eccentric (1) upward against stop and tighten bolt (5) | ||
| *BA77.33-P-1013-01A | |||
| 7 | Hook Bowden cable (3) into eccentric (1) | ||
| 8 | Hook Bowden cable (3) into front lock (4) | ||
| 9 | Check adjustment of left or right Bowden cable (3), adjust if necessary | AR77.33-P-3485W | |
| 10 | Install paneling (2) on Vario roof front section |
SOFT TOP MECHANICAL COMPONENTS
| Number | Designation | Model 172 | Model 231 | |
|---|---|---|---|---|
| BA77.33-P-1013-01A | Screw, lock to eccentric bolt | Nm | 9 | 9 |
