Remove/install draft stop - AR77.25-P-2000RK

MODEL 231 with CODE (285) Draft stop (fabric version)

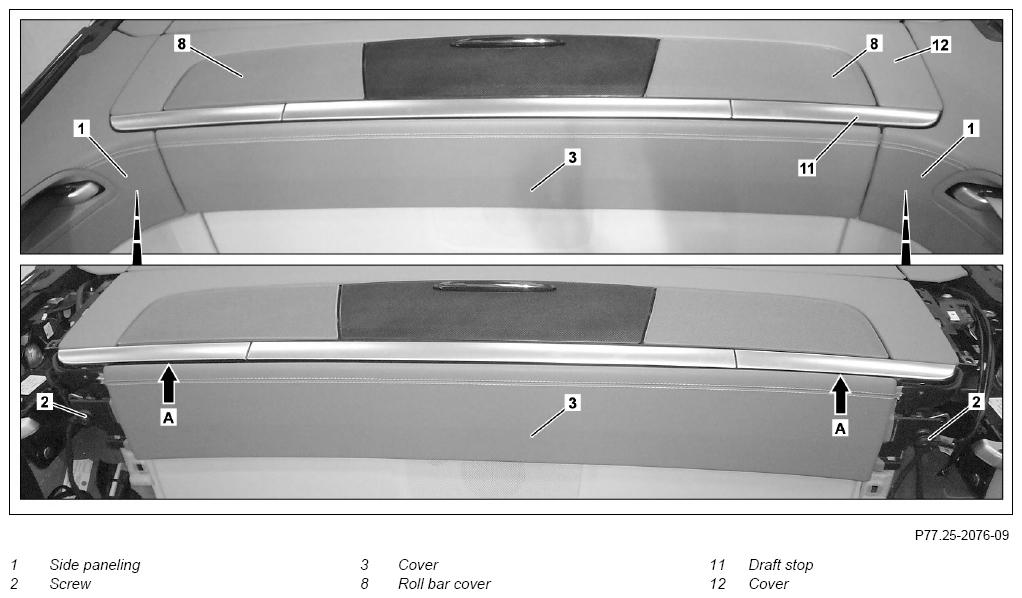

Fig 1: Draft Stop Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

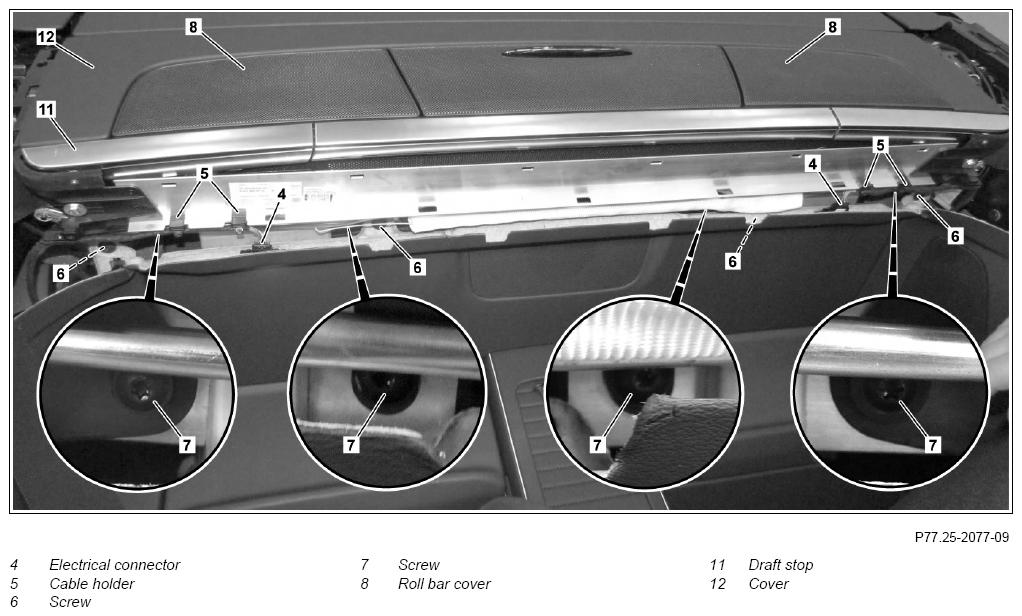

Fig 2: Draft Stop Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

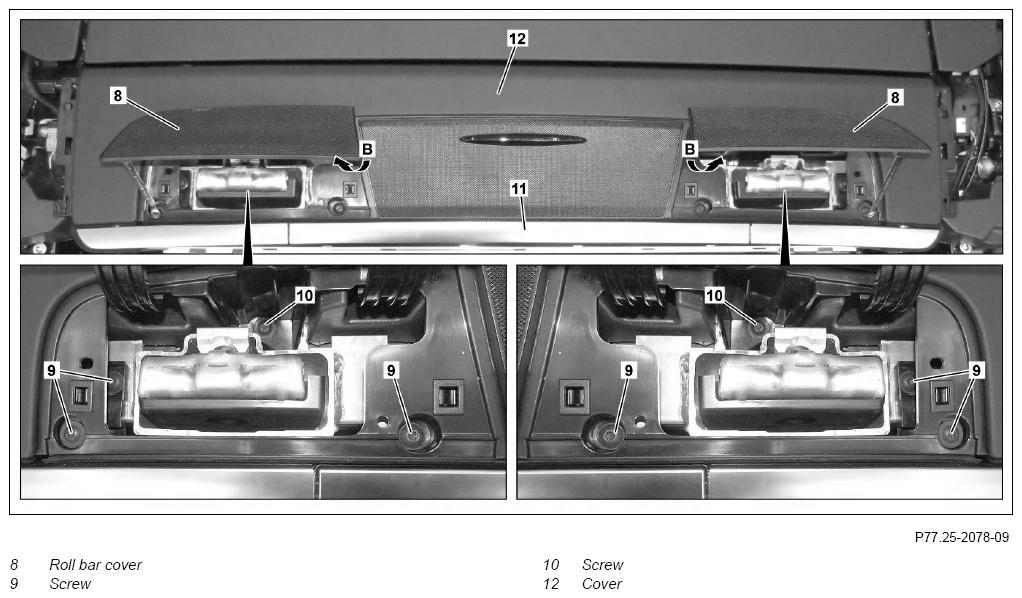

Fig 3: Draft Stop Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

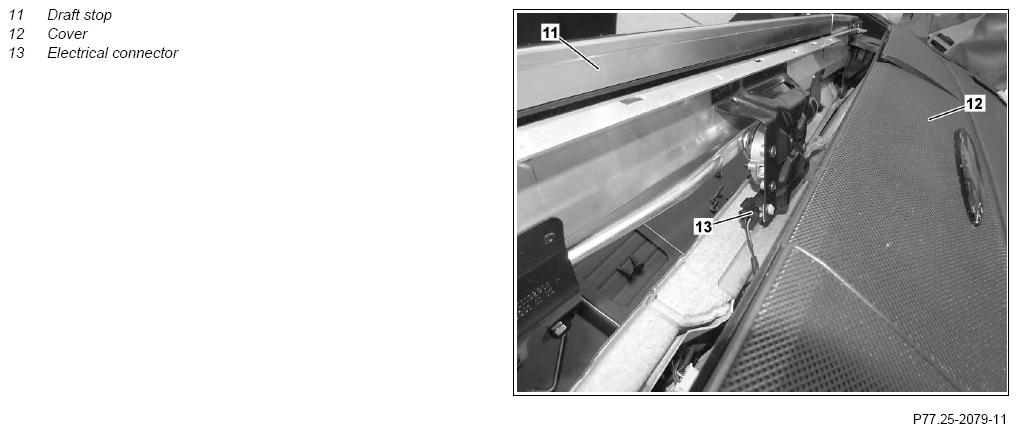

Fig 4: Draft Stop Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bar unit extends.	AS91.00-Z-0003-01RQ
1	Remove side paneling (1)		AR68.30-P-4780RK
2	Unscrew bolts (2) and remove paneling (3) in direction of arrow (arrow A)
3	Disconnect electrical connector (4)
4	Unclip cable bracket (5)
5	Remove bolts (6)
6	Remove bolts (7)
7	Fold up roll bar covers (8) i direction of arrow (arrow B)
8	Remove bolts (9)
9	Loosen bolts (10)
10	Carefully pull draft to (11) out of paneling (12) toward front until electrical connector (13) is accessible	Removal:  Carefully pull paneling (12) upward.
11	Disconnect electrical connector (13)
12	Remove draft stop (11)	Ensure that draft stop (11) is seated properly.
13	Install in the reverse order
