Remove/install Vario roof rear shelf main flap - AR77.30-P-6347RK
MODEL 231

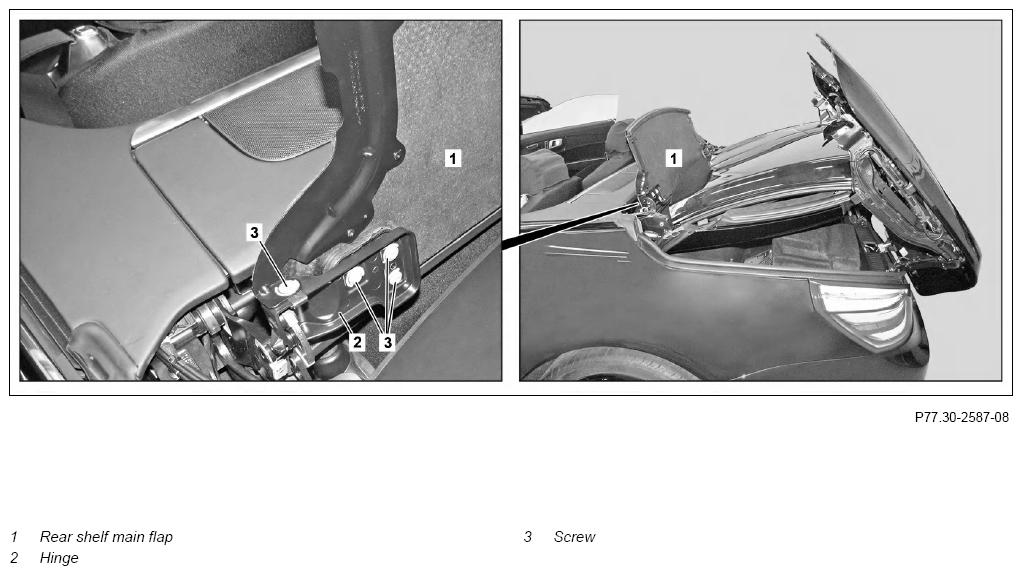

Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | AS77.50-Z-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Actuate Vario roof actuation switch (S84s1) until the rear shelf main flap (1) is positioned vertically | ||
| 2 | Switch off ignition | ||
| 3 | Mark installation position of rear shelf main flap (1) on hinges (2) | ||
| 4 | Unscrew bolts (3) and remove rear shelf main flap (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function test |
