Align side flap for Vario roof - AR77.30-P-6373RK
MODEL 231
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | AS77.50-Z-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Check | |||
| 1 | Completely open Vario roof with Vario roof actuation switch (S84s1) | ||

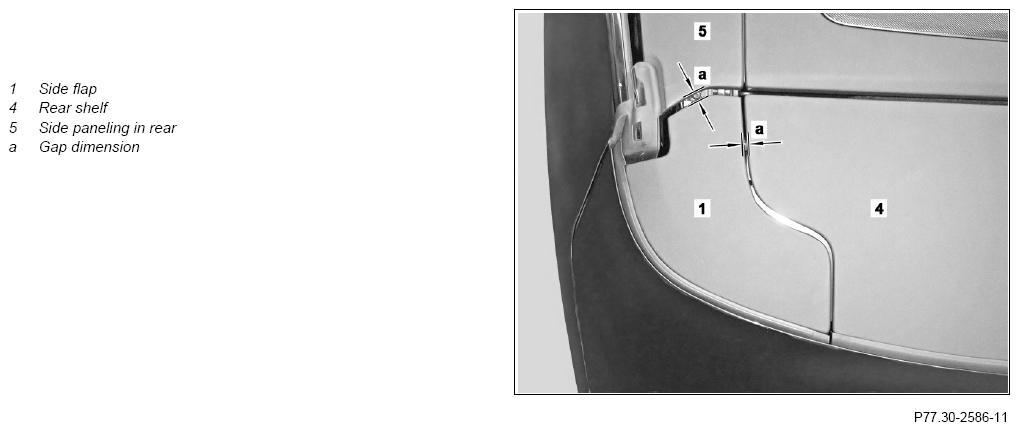

| 2 | Determine present gap dimensions (a) | Gap between rear shelf and side flap |
*BE77.30-P-1003-01A |
| Fig 3 | |||
| Adjust | |||

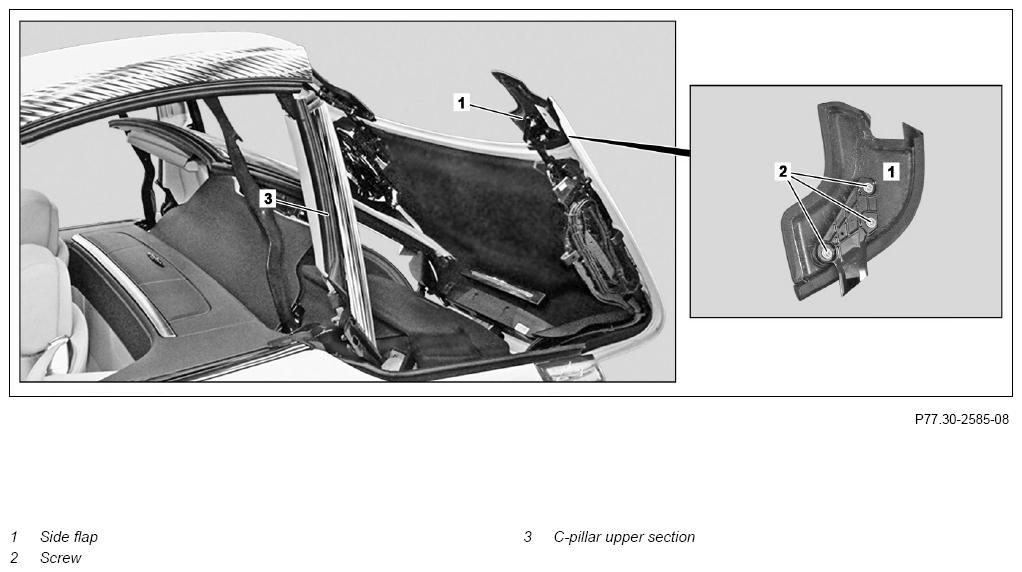

| 3 | Actuate Vario roof actuation switch (S84s1) until the side flaps (1) are folded out | ||
| 4 | Loosen bolts (2) and adjust side flap (1) to determined dimension | ||
| 5 | Tighten bolts (2) | ||
| Check | |||
| 6 | Open Vario roof, recheck gap dimensions (a) and repeat adjustment, if necessary | ||
| 7 | Perform function test |
TEST VALUES FOR VARIO ROOF GAP DIMENSIONS
| Number | Designation | MODEL 231 | ||
|---|---|---|---|---|
| BE77.30-P-1003-01A | Gap between rear shelf and side flap | Dimension "A" | mm | 5, 0 |
