Remove/install door sill - AR68.30-P-4100RK

MODEL 231

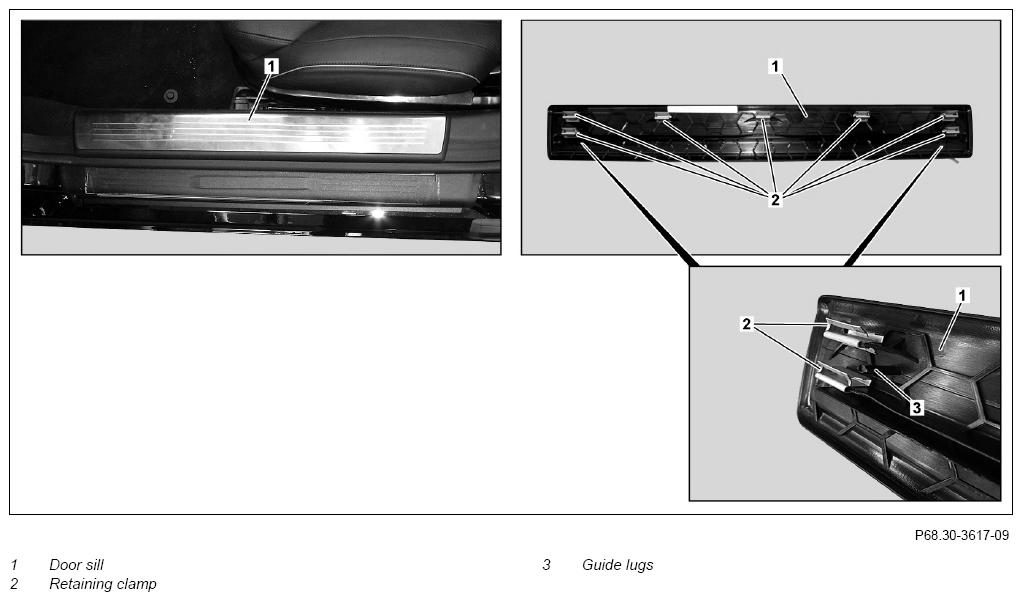

Fig 1: Door Sill Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open door
2	Unclip door sill (1) upward by hand and remove	Replace damaged retaining clips (2). Ensure that retaining clips (2) and guide lugs (3) are seated correctly in mounts.
3	Install in the reverse order
