Remove/install hydraulic cylinder for remote trunk closing - AR88.50-P-5071RK
MODEL 231 with CODE 881 (Remote trunk closing (RTC [HDFS]))

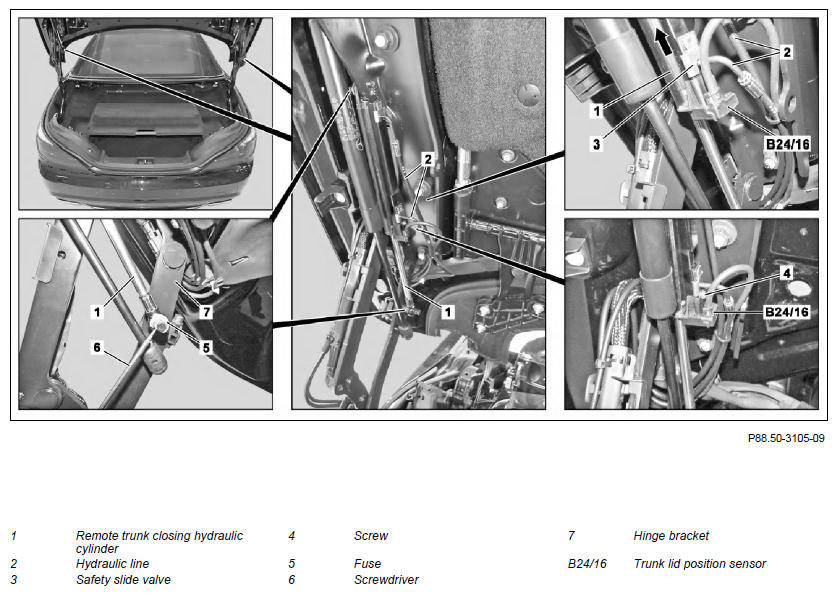

Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid | ||
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| 2 | Depressurize hydraulic system | ||
| 3 | Unlock lock slider (3) with screwdriver and slide upward (arrow) | ||
| 4 | Remove hydraulic lines (2) from remote trunk closing hydraulic cylinder (1) and plug immediately | ||
| Fig 2 | |||
| 5 | Unscrew bolt (4) and remove trunk lid position sensor (B24/16) from remote trunk closing hydraulic cylinder (1) | When removing left remote trunk closing hydraulic cylinder (1). | |
| 6 | Unlock retainers (5) at top and bottom on remote trunk closing hydraulic cylinder (1) with suitable screwdriver (6) and remove from mounting bolts on hinge lever (7) | Replace retainers (5) if required. |
|
| 7 | Remove remote trunk closing hydraulic cylinder (1) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check oil level in Vario roof control hydraulic unit (A7/5), correct | AR77.37-P-3501RK | |
| 10 | Normalize remote trunk closing | When replacing left remote trunk closing hydraulic cylinder (1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
