Prepare rear end for installation - AR64.20-P-1020-05ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 218.9 Type without reinforcements
MODEL 212.2 Type without reinforcements

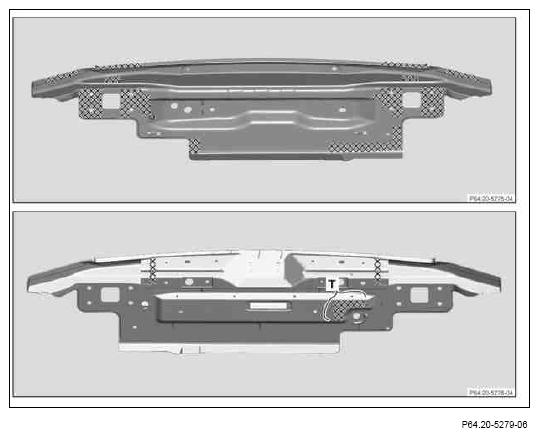

- Grind mating surfaces on rear end assembly down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (area T). Can lead to adhesion problems.
