Removing and installing TELE AID emergency call system pushbutton switch - AR82.95-P-0002RK

MODEL 231 with CODE 348 (Emergency call/assistant system)

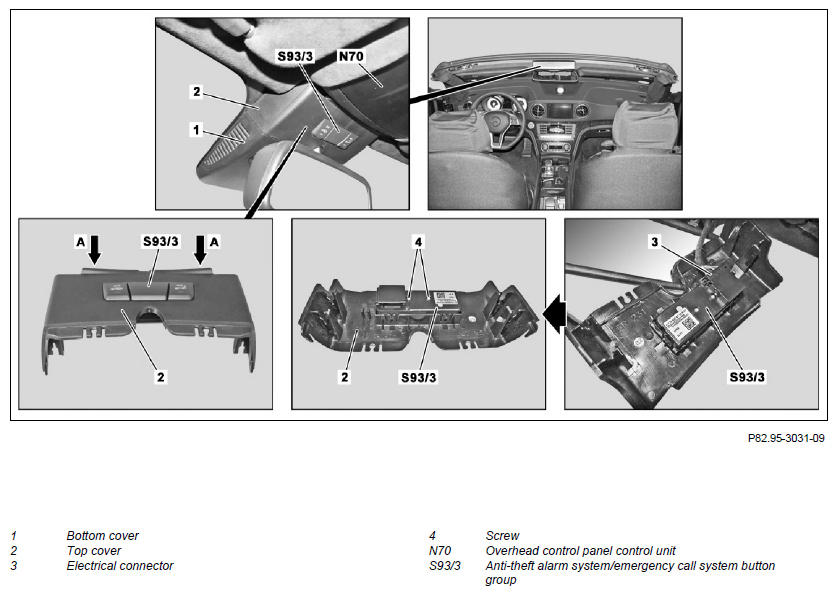

Fig 1: TELE AID Emergency Call System Pushbutton Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open Vario roof
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
3	Unclip bottom cover (1) and remove	Mounting wedge	Figure
4	Unclip top cover (2) and remove	Hook in catch hooks (arrows A) of top cover (2) at overhead control panel control unit (N70), swivel top cover (2) upwards and engage.
		Mounting wedge	Figure
5	Disconnect electrical connector (3)
6	Remove bolts (4)
7	Unclip anti-theft alarm system/emergency call system button group (S93/3) from top cover (2) and remove
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
