Remove/install satellite radio antenna - AR82.60-P-7547RK

MODEL 231 with CODE 536 (SIRIUS satellite radio)

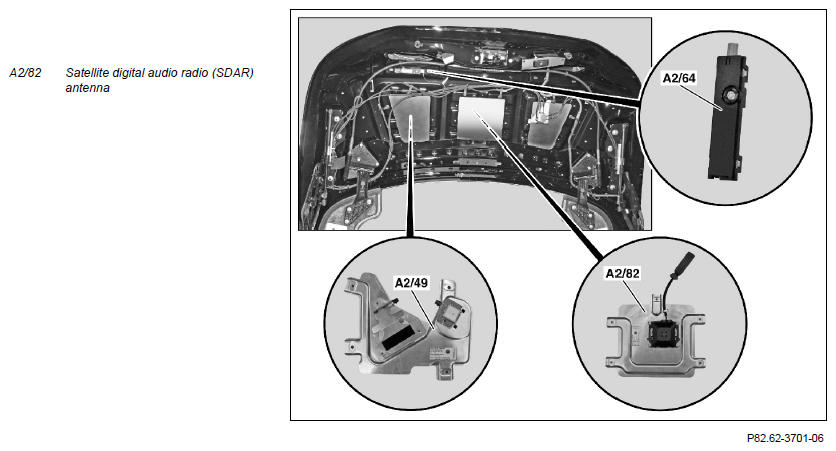

Fig 1: Satellite Radio Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove paneling from trunk lid		AR68.30-P-8150RK
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
3	Disconnect electrical connector from Satellite Digital Audio Radio (SDAR) antenna (A2/82)
4	Remove Satellite Digital Audio Radio (SDAR) antenna (A2/82)	Satellite Digital Audio Radio (SDAR) antenna (A2/82) is installed with four expansion clips. Check expansion clips, replace if necessary.
5	Install in the reverse order
