Remove/install radio operating unit - AR82.60-P-7503RK

MODEL 231

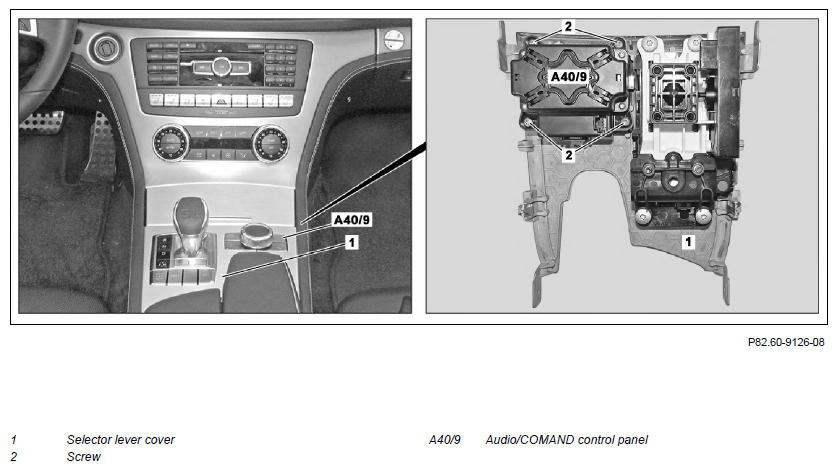

Fig 1: Radio Operating Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect Star Diagnosis and perform initial startup of Audio/COMAND control panel (A40/9)	When replacing the Audio/COMAND control panel (A40/9).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove selector lever cover (1)		AR68.20-P-2309RK
3	Remove Audio/COMAND control panel (A40/9)	To do this, remove bolts (2).
4	Install in the reverse order
