Remove/install multimedia connection unit in front stowage compartment - AR82.60-P-1032RKM
MODEL 231
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open stowage compartment in center console | ||

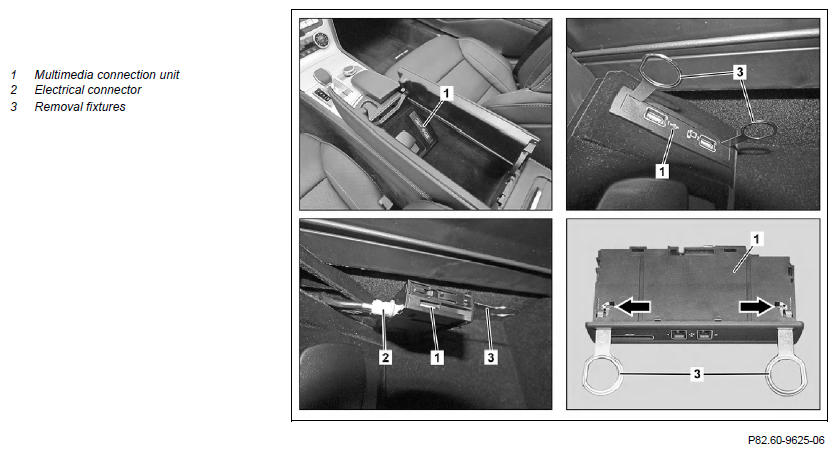

| 2 | Insert removal fixtures (3) in multimedia connection unit (1) and remove multimedia connection unit (1) from center console | ||
| Fig 2 | |||
| 3 | Disconnect electrical connector (2) and remove multimedia connection unit (1) | ||
| 4 | Operate locks (arrows) on multimedia connection unit (1) and remove removal fixtures (3) | ||
| 5 | Install in the reverse order |
