Remove/install license plate lamps - AR82.10-P-5161RK

MODEL 231

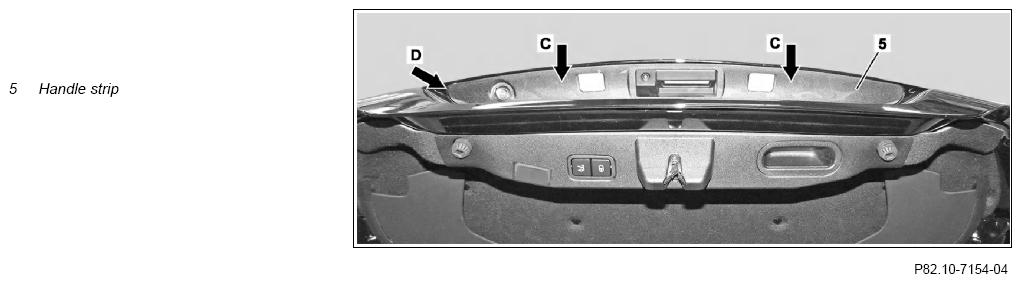

Fig 1: License Plate Lamps Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

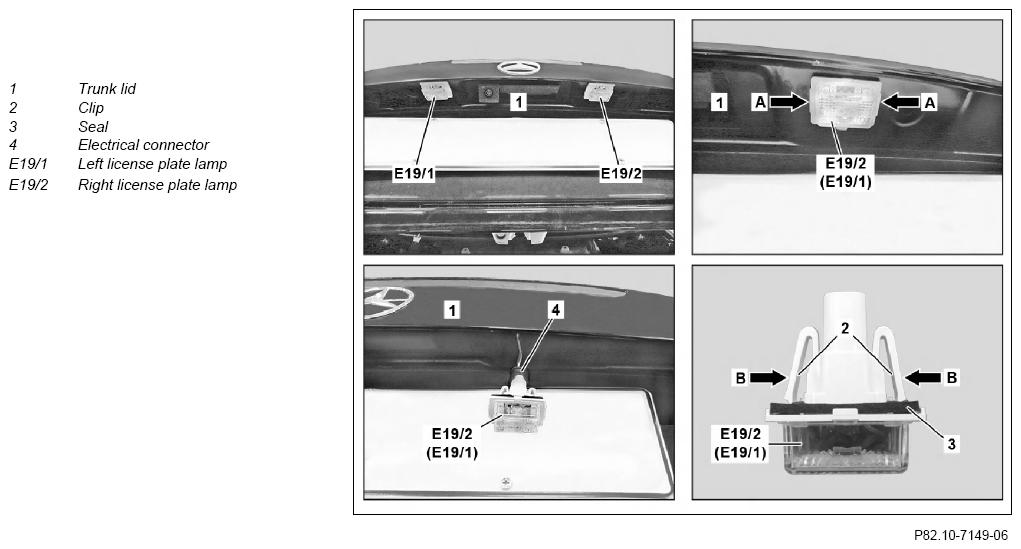

Fig 2: License Plate Lamps Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
2	Unclip handle strip (5) at clipped positions (arrows C) from liftgate (1) and pull out of insertion point (arrow D) toward right	Slide guide of handle strip (5) into insertion point (arrow D) at liftgate (1) and clip in (arrows C). Long wedge	Figure
3	Press in clamps (2) (arrows B) and unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from trunk lid (1)	For this, slide the assembly wedge at the sides under the seal (3) of the left license plate lamp (E19/1) or right license plate lamp (E19/2) (arrows A). Mounting wedge	Figure
4	Pull left license plate lamp (E19/1) or right license plate lamp (E19/2) out of trunk lid (1) and disconnect electrical connector (4)	Check seal (3) for damage. If necessary, replace complete left license plate lamp (E19/1) or right license plate lamp (E19/2).
5	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
